AGL Copper Power Cable – C for airfield lighting applications. Construction: Stranded annealed tinned or bare copper wires According to IEC 60228 – Class 2 AWG types to ASTM B8 – Class B or Class C; XLPE – Cross linked polyethylene material.
| Rated voltage | 5 kV |
|---|---|
| Conductor | Stranded annealed tinned or bare copper wires According to IEC 60228 – Class 2 AWG types to ASTM B8 – Class B or Class C |
| Insulation | XLPE – Cross linked polyethylene material |
| Semiconductive layer | Extruded Semiconductive material |
| Semiconductive layer | Semiconductive tape helically applied |
| Screen | Minimum 20% overlap and 100% coverage helically applied Copper Tape |
| Outer jacket | PVC or PE or HF (halogen free) or other suitable jacketing material according to NEMA WC74 / ICEA S-93-639. |
| Conductor operating temperature | -25ºC / +90ºC |
| Test voltage | 18 kV |
| Bending radius | 12 x Outer Diameter |
| Standard of test | ICEA S-93-639 / NEMA WC74 FAA Specification for L 824 – AC No. 150 / 5345-7F |
| Construction (*) | Cross Section | Overall Diameter mm | Approx Weight kg/km | Max. Resistance of Conductors at 20 ºC (ohm/km) | Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EXSC / XLPE / SCT / CUT / PE | 1X6 mm² | 12,4 | 187 | 3,08 | 52 |
| BCL2 / EXSC / XLPE / SCT / CUT / PVC | 1X6 mm² | 12,4 | 213 | 3,08 | 52 |
| BAWGB / EXSC / XLPE / SCT / CUT / PE | 1X8 AWG | 13,0 | 221 | 2,10 | 64 |
| BAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X8 AWG | 13,0 | 248 | 2,10 | 64 |
| TAWGB / EXSC / XLPE / SCT / CUT / PE | 1X8 AWG | 13,0 | 221 | 2,18 | 64 |
| TAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X8 AWG | 13,0 | 248 | 2,18 | 64 |
| BAWGB / EXSC / XLPE / SCT / CUT / PE | 1X6 AWG | 14,0 | 283 | 1,33 | 85 |
| BAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X6 AWG | 14,0 | 312 | 1,33 | 85 |
| TAWGB / EXSC / XLPE / SCT / CUT / PE | 1X6 AWG | 14,0 | 283 | 1,38 | 85 |
| TAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X6 AWG | 14,0 | 312 | 1,38 | 85 |
Tell us your quantity and requirements — we reply within one business day.
Airfield Lighting CablesAGL Unscreened Power Cable – C (previous design) for airfield lighting applications. Construction: Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2 AWG…

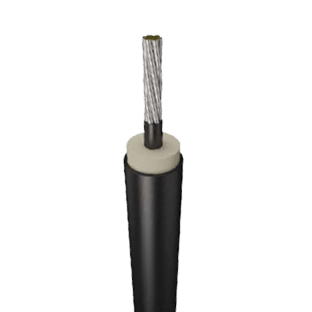

Airfield Lighting CablesAGL Unscreened Flex Power Cable – B (previous design) for airfield lighting applications. Construction: Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2…

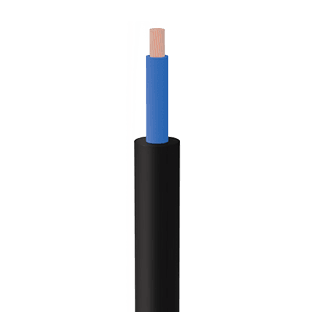

Airfield Lighting CablesRV-K Power-C Secondary Airfield Lighting Cable for airfield lighting applications. Construction: Stranded annealed tinned or bare copper wires According to IEC 60228 – Class 5; XLPE – Cross linked polyethylene…
