H07ZZ-F Industrial Cable
Electrical Equipment · Industrial Cables

H07ZZ-F Industrial Cable

These halogen-free flexible cables are used as power and control cables temporary indoor and permanent outdoor apllications. It consist low grade smoke and corrosive gases and suitable to use for…

Rated voltage450/750 V (U0/U)
ConductorElectrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
InsulationEI8 type cross-linked elastomeric compound (EN 50363-5)
Outer sheathEM8 type cross-linked elastomeric compound (EN 50363-6)
Request a Quote
Request Datasheet
  • Quoted to your quantity
  • Documentation on request
  • International delivery

Product Overview

These halogen-free flexible cables are used as power and control cables temporary indoor and permanent outdoor apllications. It consist low grade smoke and corrosive gases and suitable to use for heavy conditions and medium mechanical stress. Due to it’s construction it can be used wet, oily, damp places and explosion hazard areas.

Technical Specifications

Rated voltage450/750 V (U0/U)
ConductorElectrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
InsulationEI8 type cross-linked elastomeric compound (EN 50363-5)
Outer sheathEM8 type cross-linked elastomeric compound (EN 50363-6)
SeparatorA suitable tape may be applied over the conductor
Inner sheathEM8 or EM10 type elastomer compound. If outer sheath thickness is greater than 2,4 mm
ColorBlack (other colors available on request)
AC test voltage2,5 kV
In flexing use-5°C to +70°C
In fixed use-20°C to +90°C
Conductor short-circuit temp.250°C (Max. 5 sec)
Min. installation temp.-5°C
Min. bending radiusEN 50565-1 Tab. 3
Current carrying capacitiesVDE 0298-4 Tab.13; IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1

(WIthout mechanIcal shocks)

Cross Section (mm²)Nominal Overall Diameter (mm)Approximate Weight (kg / km)Min.Bending Radius (free movement) (mm)Max. Resistance of Conductors at 20°C (ohm / km)
1×1,56,20562513,30
1×2,56,8071277,98
1×1010,30191411,91
1×1611,50260461,21
1×2514,20388710,78
1×3515,50502780,554
1×5017,80680890,386
1×7020,109271210,272
1×9522,501.1851350,206
1×12024,601.4701480,161
1×15026,801.7971610,129
1×18529,502.1671770,106
1×24033,0028331980,0801
1×30036,0034422160,0641
1×40041,3044592480,0486
1×50044,6057482680,0384
1×63047,8071782870,0287
2×18,401003419,50
2×1,59,401283813,30
2×2,511,00181447,98
2×412,60248634,95
2×614,00318703,30
2×1019,60601981,91
2×1622,007991321,21
2×2526,801.1841610,78
3×19,101213619,50
3×1,510,101534013,30
3×2,511,80217477,98
3×413,50300684,95
3×615,00390753,30
3×1021,107311271,91
3×1623,609801421,21
3×2529,201.4831750,78
3×3531,701.8731900,554
3×5036,602.5462200,386
3×7041,303.4292480,272
3×9546,604.4132800,206
3×12050,905.4303050,161
3×15055,506.6143330,129
3×18561,308.0213680,106
3×24069,80106274190,0801
3×30077,10130554630,0641
4×110,101504019,50
4×1,511,201914513,30
4×2,513,00269657,98
4×414,90374754,95
4×616,70493843,30
4×1023,008941381,91
4×1625,801.2111551,21
4×2532,401.8671940,78
4×3535,102.3612110,554
4×5040,503.2062430,386
4×7045,904.3522750,272
4×9551,805.6463110,206
4×12056,506.8883390,161
4×15061,808.4243710,129
4×18568,4010.2314100,106
4×24077,80135354670,0801
4×30086,00166335160,0641
5×111,101824419,50
5×1,512,402356213,30
5×2,514,40331727,98
5×416,70469844,95
5×619,00622953,30
5×1025,301.0911521,91
5×1628,6014961721,21
5×2525,9023021550,78
6×1,514,603177313,30
6×2,516,80438847,98
6×419,30609974,95
7×1,514,603277313,30
7×2,516,80454847,98
7×419,30635974,95
12×1,519,205319613,30
12×2,522,107391337,98
12×425,801.0611554,95
18×1,522,4074213413,30
18×2,526,001.0501567,98
18×430,3015071824,95
24×1,526,2096715713,30
24×2,530,601.3821847,98
36×1,530,001.34418013,30
36×2,535,201.9442117,98

Features

  • Flame retardant
  • Halogen-free
  • Low smoke
  • Oil resistant
  • UV resistant

Certifications / Standards

  • EAC

Request Information About This Product

Tell us your quantity and requirements — we reply within one business day.

Related Products

3GKW M Industrial CableIndustrial Cables
Cables

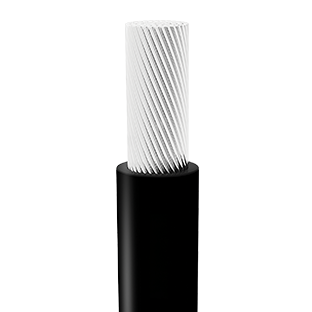

3GKW M Industrial Cable
