Marine CablesCables
M2XH (NOFI) Marine Cable
Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles, in most areas & on open deck in ships.
0,6 / 1 kV · -40°C / + 90°C
M2XH (FI) Marine Cable
Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles, in most areas & on open deck in ships.
Rated voltage0,6 / 1 kV
ConductorElectrolytic, stranded, annealed copper wireIEC 60228 Class 5 (Class 2 and / or tinned on request)
InsulationCross linked polyethylene compound (XLPE).
Outer sheathHalogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (SHF 1).
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles, in most areas & on open deck in ships.
*Minimum recommended installation temperature -15°C
For core identification, diameter tolerances and current ratings etc. see technical information section
Technical Specifications
| Rated voltage | 0,6 / 1 kV |
|---|---|
| Conductor | Electrolytic, stranded, annealed copper wireIEC 60228 Class 5 (Class 2 and / or tinned on request) |
| Insulation | Cross linked polyethylene compound (XLPE). |
| Outer sheath | Halogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (SHF 1). |
| Working temperature | -40°C / + 90°C |
| Inner covering | Halogen-free bedding compound. |
| Color | Black or Grey or Red. |
| FI | With extruded bedding compound. |
| Construction | IEC 60092 / 353 |
| Tests and material | IEC 60092 / 350-360 |
| Flame retardant | IEC 60332 / 1-2, IEC 60332 / 3-22 Cat A |
| Halogen content | IEC 60754 / 1-2 |
| Smoke emission | IEC 61034 / 1-2 (DIN EN 50268 / 1-2) |
| Ozon resistance | IEC 60811 / 403 |
| Min. bending radius (fixed) | For cables D ≤ 25 mm 4xD, For cables D > 25 mm 6xD |
| Test voltage | 3,5 kV |
| UV and sunlight resistance | EN 50289-4-17 A&B, ISO 4892-2&3 |
| Cross section (mm²) | Overall diameter (mm) | Approximate weight (kg / km) | Min. bending radius, fixed (mm) | Max. conductor resistance at 20 °C (ohm / km) | Current-carrying capacity at 45 °C (A) |
|---|---|---|---|---|---|
| 2×1 | 9.2 | 112 | 37 | 19.5 | 14 |
| 2×1,5 | 9.6 | 127 | 39 | 13.3 | 18 |
| 2×6 | 12.8 | 268 | 51 | 3.3 | 43 |
| 2×10 | 15.2 | 402 | 61 | 1.91 | 60 |
| 2×16 | 17.4 | 562 | 70 | 1.21 | 79 |
| 2×25 | 22 | 874 | 88 | 0.78 | 104 |
| 2×35 | 23.8 | 1109 | 143 | 0.554 | 129 |
| 2×50 | 27.6 | 1517 | 166 | 0.386 | 166 |
| 2×70 | 32.4 | 2152 | 194 | 0.272 | 204 |
| 2×95 | 36 | 2724 | 216 | 0.206 | 243 |
| 2×120 | 40 | 3420 | 240 | 0.161 | 282 |
| 2×150 | 44.4 | 4250 | 266 | 0.129 | 324 |
| 2×185 | 49.4 | 5185 | 296 | 0.106 | 367 |
| 2×240 | 56.4 | 6893 | 338 | 0.0801 | 432 |
| 3×1 | 9.7 | 127 | 39 | 19.5 | 12 |
| 3×1,5 | 10.1 | 145 | 41 | 13.3 | 15 |
| 3×2,5 | 11.3 | 193 | 45 | 7.98 | 21 |
| 3×4 | 12.4 | 253 | 50 | 4.95 | 28 |
| 3×6 | 13.6 | 326 | 54 | 3.3 | 35 |
| 3×10 | 16.1 | 494 | 64 | 1.91 | 50 |
| 3×16 | 18.5 | 703 | 74 | 1.21 | 66 |
| 3×25 | 23.4 | 1087 | 140 | 0.78 | 86 |
| 3×35 | 25.6 | 1420 | 154 | 0.554 | 107 |
| 3×50 | 29.4 | 1927 | 176 | 0.386 | 137 |
| 3×70 | 34.8 | 2770 | 209 | 0.272 | 168 |
| 3×95 | 38.6 | 3515 | 232 | 0.206 | 201 |
| 3×120 | 43.3 | 4471 | 260 | 0.161 | 233 |
| 3×150 | 47.6 | 5503 | 286 | 0.129 | 268 |
| 3×185 | 53.4 | 6759 | 320 | 0.106 | 303 |
| 3×240 | 60.7 | 8970 | 364 | 0.0801 | 356 |
| 4×1 | 10.4 | 145 | 42 | 19.5 | 12 |
| 4×1,5 | 10.9 | 168 | 44 | 13.3 | 15 |
| 4×2,5 | 12.2 | 225 | 49 | 7.98 | 21 |
| 4×4 | 13.4 | 300 | 54 | 4.95 | 28 |
| 4×6 | 14.9 | 396 | 60 | 3.3 | 35 |
| 4×10 | 17.8 | 610 | 71 | 1.91 | 50 |
| 4×16 | 20.4 | 878 | 82 | 1.21 | 66 |
| 4×25 | 25.9 | 1356 | 104 | 0.78 | 86 |
| 4×35 | 28.2 | 1775 | 170 | 0.554 | 107 |
| 4×50 | 33.2 | 2474 | 199 | 0.386 | 137 |
| 4×70 | 38.6 | 3498 | 232 | 0.272 | 168 |
| 4×95 | 43.1 | 4476 | 259 | 0.206 | 201 |
| 4×120 | 48.1 | 5664 | 289 | 0.161 | 233 |
| 4×150 | 53.3 | 7030 | 320 | 0.129 | 268 |
| 4×185 | 59.2 | 8542 | 355 | 0.106 | 303 |
| 4×240 | 67.9 | 11452 | 407 | 0.0801 | 356 |
| 5×1 | 11.4 | 173 | 46 | 19.5 | 10 |
| 5×1,5 | 11.9 | 201 | 48 | 13.3 | 13 |
| 5×2,5 | 13.2 | 266 | 53 | 7.98 | 17 |
| 5×4 | 14.7 | 362 | 59 | 4.95 | 23 |
| 5×6 | 16.2 | 474 | 65 | 3.3 | 29 |
| 5×10 | 19.6 | 744 | 78 | 1.91 | 42 |
| 5×16 | 22.5 | 1067 | 90 | 1.21 | 54 |
| 5×25 | 28.6 | 1650 | 114 | 0.78 | 71 |
| 5×35 | 31.7 | 2202 | 190 | 0.554 | 89 |
| 5×50 | 36.7 | 3020 | 220 | 0.386 | 114 |
| 5×70 | 43.2 | 4322 | 259 | 0.272 | 140 |
| 7×1,5 | 12.7 | 240 | 51 | 13.3 | 11 |
| 7×2,5 | 14.3 | 328 | 57 | 7.98 | 16 |
| 10×1,5 | 15.8 | 343 | 63 | 13.3 | 10 |
| 12×1,5 | 16.3 | 378 | 65 | 13.3 | 10 |
| 14×1,5 | 17.3 | 433 | 69 | 13.3 | 9 |
| 19×1,5 | 18.9 | 521 | 76 | 13.3 | 8 |
| 24×1,5 | 22.2 | 667 | 89 | 13.3 | 8 |
Features
- Halogen-free
- Low smoke
- Flame retardant
- Non-corrosive
Certifications / Standards
Request Information About This Product
Tell us your quantity and requirements — we reply within one business day.
Related Products
Marine Cables
Marine CablesCables

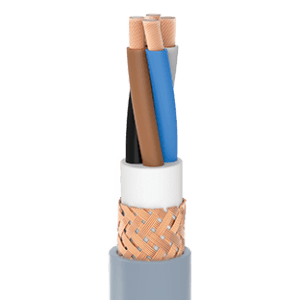

MGCH Marine Cable
Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen, environmental electromagnetic interference is minimized.
0,6 / 1 kV · -40°C / + 90°C
Marine CablesCables

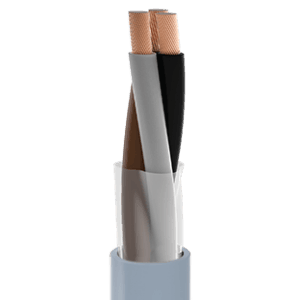

MGH Marine Cable
