MGCH Marine Cable
Electrical Equipment · Marine Cables

MGCH Marine Cable

Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen, environmental electromagnetic interference is minimized.

Rated voltage0,6 / 1 kV
ConductorElectrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).
InsulationHF HEPR compound.
Outer sheathHalogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (HM4 / SHF1) – HD 604.
Request a Quote
Request Datasheet
  • Quoted to your quantity
  • Documentation on request
  • International delivery

Product Overview

Used as fixed installation cables in various electromechanical and electronic equipments of marine vehicles. Due to its’ overall screen, environmental electromagnetic interference is minimized.

Technical Specifications

Rated voltage0,6 / 1 kV
ConductorElectrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (Class 5 and/or tinned on request).
InsulationHF HEPR compound.
Outer sheathHalogen-free, flame retardant, UV resistant, thermoplastic polyolefin based compound (HM4 / SHF1) – HD 604.
Working temperature-40°C / + 90°C
BeddingHalogen free compound
ScreenElectrolytic copper braided screen (90% coverage). MGCH (EMC) type is wrapped by a copper tape in addition to this screen (100% coverage).
ColorBlack or Grey.
ConstructionDIN 89158, IEC 60092/353
Tests and materialIEC 60092 /350-351-359
Flame retardationIEC 60332 /1, IEC 60332 / 3 Cat A
Halogen contentIEC 60754 / 1 – 2
Smoke densityIEC 61034 / 1-2 ( DIN EN 50268/1-2)
SHIELDING EFFECTIVENES (for EMC type)DIN EN 50147-1
Min. bending radius (fixed)8 x (Overall Diameter)
Test voltage3,5 kV
UV and sunlight resistanceEN 50289-4-17 A&B, ISO 4892-2&3
Nominal Cross-Section (mm²)Cable Outer Diameter (mm)Approximate Cable Weight (kg/km)Copper Weight (kg/km)
1×15.95930.6
1×1.56.26835.4
1×67.712883.6
1×108.8181127
1×1610250189.6
1×2511.9368286
1×3512.9466390
1×5015.2654566
1×7017.3889776
1×9519.111491033
1×1202114541290
1×15023.217401581
1×18525.421311931
1×24028.427472485
1×30031.334203113
2×110.818465.2
2×1.511.621674.8
2×2.512.4256100
2×413.6320137.8
2×615.2427212.2
2×1017565308
2×1619.6775443.2
2×2523.21112635
3×111.320674.8
3×1.512.124295.2
3×2.513293133
3×414.2369176.2
3×615.9498288.8
3×1018.1686404
3×1620.6936596.8
3×2524.71376894
3×352717331211
3×5030.922921672
3×7035.831602277
3×9540.341893148
3×12044.351613871
3×15049.263354784
3×18554.377895878
3×24061.2100657532
4×112.224188.4
4×1.512.9280115.6
4×2.513.9343155
4×415.9484265.6
4×617.1595342.4
4×1019.5827514
4×1622.61159763.4
4×2527.117111155
4×3529.821791539
4×5034.128862170
4×7039.940813082
4×9544.653064093
4×12049.165575058
4×15054.680636287
4×18560.599617697
4×24067.9128389876
5×113271103
5×1.513.8318128
5×2.515.5433208
5×417.1557298
5×618.7702411
5×1021.3979621
5×1624.81382926
5×2529.820471385
6×113.7290115.6
6×1.515.2384179.4
6×2.516.4472155
7×113.7294125.2
7×1.515.2392193.8
7×2.516.4486279
8×113.9296169.8
8×1.515361208.2
8×2.516.6471303
9×114.8333179.4
9×1.515.9404240.6
9×2.517.7531327
10×115.1344191
10×1.516.3420258
10×2.518.1549354
12×115.6383210.2
12×1.517479286.8
12×2.518.9631420
14×116.3534248.4
14×1.517.8696315.6
14×2.519.7706468
16×117.2480267.6
16×1.518.6596362.4
16×2.520.9802516
19×118535296.4
19×1.519.7678405.6
19×2.521.9905607
20×118565306
20×1.519.7717420
20×2.522.1965631
21×119.1630333.6
21×1.520.9798434.4
21×2.523.31062655
24×121.1672362.4
24×1.5231855496.6
24×2.525.71140746
25×121.1690371
25×1.523.1880511
25×2.525.71170770
27×121.6730410.2
27×1.523.6930539.8
27×2.526.31240818
30×122.5802439
30×1.524.61022602
30×2.527.31370909
32×123.2850458.2
32×1.525.41080630.8
32×2.528.31455957
36×124930515.6
36×1.526.31190688.4
36×2.529.316061062
37×124938525.2
37×1.526.31201702.8
37×2.529.316221086
40×125.11065554
40×1.527.51325774
40×2.530.717901187
42×126.11085573.2
42×1.528.61388802.8
42×2.531.818731235
48×127.61195658.8
48×1.530.21535889.2
48×2.533.720751379
60×1301450774
60×1.53318701091

Features

  • Halogen-free
  • Flame retardant
  • Low smoke
  • Oil resistant

Certifications / Standards

  • Bureau Veritas (BV)
  • ClassNK
  • DNV
  • Lloyd's Register (LR)
  • RINA
  • Russian Maritime Register of Shipping (RMRS)
  • Türk Loydu
  • American Bureau of Shipping (ABS)

Request Information About This Product

Tell us your quantity and requirements — we reply within one business day.

Related Products

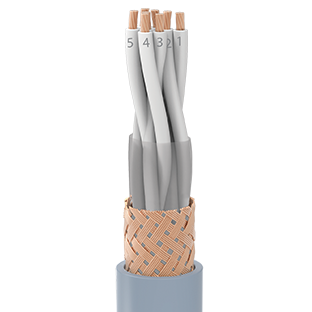

FMGCH Marine CableMarine Cables
