ATEX Plugs, Sockets & ConnectorsMarechal 2514015 | Female Socket-Outlet
Product Code: 2514015
Product category
Explosion-proof plugs, socket outlets and connectors for Zone 1 and Zone 2 installations.

ATEX Plugs, Sockets & ConnectorsProduct Code: 2514015
ATEX Plugs, Sockets & ConnectorsProduct Code: 2518013
The range of ATEX Plugs according to – the section outlines the complete range of hazardous area plugs and sockets certified by ATEX to the Ex e Explosion Proof explosion protection concept.
ATEX Plugs, Sockets & ConnectorsElectrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications
ATEX Plugs, Sockets & ConnectorsElectrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

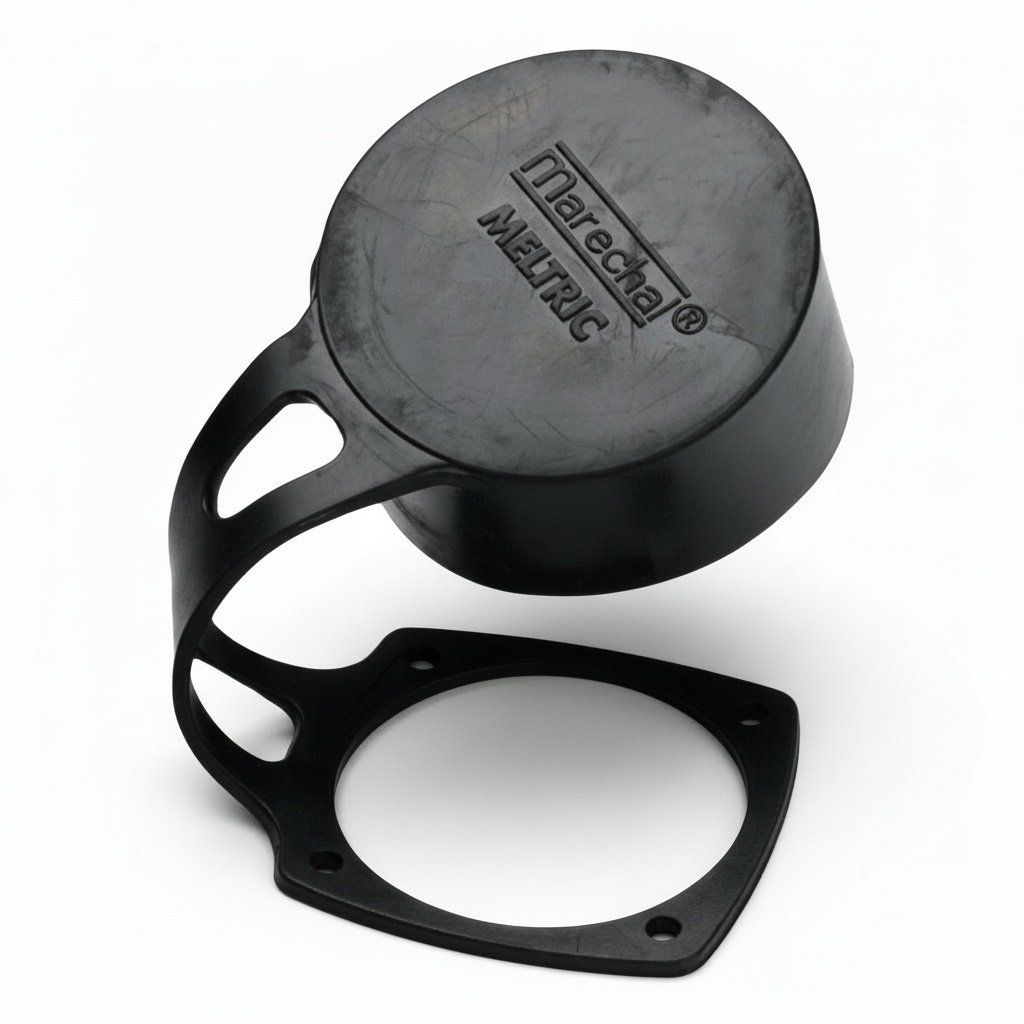

Industrial Plugs – Marechal 16A-250A Plugs & Sockets (Decontactors)Product Code: 616A426
Industrial Plugs – Marechal 16A-250A Plugs & Sockets (Decontactors)Full range of voltages, frequencies and contact configurations are available, see Marechal DSN6 Plugs, Sockets & Decontactors.
Industrial Plugs – Marechal 16A-250A Plugs & Sockets (Decontactors)Full range of voltages, frequencies and contact configurations are available, see Marechal DSN6 Plugs, Sockets & Decontactors.
Industrial Plugs – Marechal 16A-250A Plugs & Sockets (Decontactors)Full range of voltages, frequencies and contact configurations are available, see Marechal DSN6 Plugs, Sockets & Decontactors.
Industrial Plugs – Marechal 16A-250A Plugs & Sockets (Decontactors)Full range of voltages, frequencies and contact configurations are available, see Marechal DSN6 Plugs, Sockets & Decontactors.
Send us the specification — we source beyond the catalogue.
Send Your RequirementPortable tools, welding sets, pumps, lighting and temporary equipment all need power on hazardous-area sites. Certified plugs and sockets let that equipment be connected and disconnected safely. The range includes Ex e and Ex de socket-outlets and plugs, flameproof designs with interlocked switching, and industrial plugs for adjacent safe areas.
Inserting or removing a plug under load produces an arc. Hazardous-area sockets prevent that arc from reaching the atmosphere, typically by a mechanical interlock that only allows the plug to be withdrawn when the switch is OFF, or by making and breaking contact inside a flameproof chamber.
| Parameter | Typical options |
|---|---|
| Current rating | 16 A, 32 A, 63 A and higher |
| Poles | 2P+E, 3P+E, 3P+N+E |
| Voltage | 24–42 V for tools in confined spaces, 110 V, 230 V, 400 V |
| Protection | Ex de, Ex e with interlock, Ex tb for dust |
| Mounting | Wall, panel, cable coupler, distribution board |
Request a quote with your requirements, quantities and delivery country – we reply with prices, certificates and lead times.
An interlock stops the plug being inserted or removed while the circuit is live, so no arc is produced in the hazardous atmosphere.
Generally no. Hazardous-area plug systems are proprietary, so plugs and sockets should be ordered from the same manufacturer and series.
Yes. Models marked Ex tb are certified for Zone 21 and Zone 22 combustible dust areas.
Share your specifications and quantities. Our team will review your request and come back with sourcing options and a quotation.
