The Super Starco™ elevator bucket is the result of intensive research to achieve the maximum individual bucket capacity, while still maintaining the perfect fill and discharge characteristics of the original standard Starco™ bucket over a wide speed range.
| Brand | 4B |
|---|---|
| Material | HDP, Nylon |
| Use by Industry | Agricultural, Industrial |

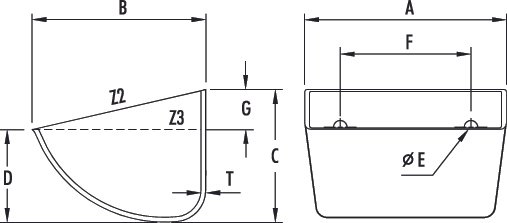

| SPS Bucket | A | B | C | D | T | HDP | Nylon | PU | Cap. (L) | Cap. (L) | Holes | E | F | G | Hole | Max. | |
| PLASTIC | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (kg) | (kg) | Z2 (total) | Z3 (water) | No. | (dia mm) | (mm) | (mm) | options | Pcs/Mtr | |
| SPS 80-80 | 90 | 85 | 63 | 43 | 4 | 0.08 | 0.09 | 0.1 | 0.24 | 0.2 | 2 | 9 | 43 | 18 | R | 15 | |
| SPS 100-90 | 110 | 100 | 67 | 44 | 5 | 0.11 | 0.13 | 0.15 | 0.39 | 0.32 | 2 | 9 | 50 | 20 | R | 14 | |
| SPS 120-100 | 129 | 110 | 80 | 55 | 5 | 0.15 | 0.18 | 0.2 | 0.61 | 0.48 | 2 | 9 | 67 | 25 | R | 12 | |
| SPS 130-120 | 135 | 120 | 85 | 57 | 5 | 0.19 | 0.23 | 0.25 | 0.72 | 0.54 | 2 | 9 | 70 | 25 | R | 11 | |
| SPS 140-120 | 145 | 120 | 90 | 62 | 5 | 0.18 | 0.22 | 0.24 | 0.81 | 0.62 | 2 | 8.5 | 70 | 25 | R | 10.8 | |
| SPS 130-130 | 146 | 130 | 90 | 60 | 5 | 0.21 | 0.25 | 0.28 | 0.88 | 0.68 | 2 | 9 | 70 | 25 | R | 10.8 | |
| SPS 160-140 | 172 | 152 | 113 | 78 | 6 | 0.34 | 0.4 | 0.45 | 1.55 | 1.25 | 2 | 9 | 100 | 30 | R | 8.6 | |
| SPS 180-140 | 187 | 150 | 112 | 77 | 6 | 0.3 | 0.36 | 0.4 | 1.79 | 1.42 | 2 | 9 | 100 | 30 | R | 8.6 | |
| SPS 200-150 | 205 | 150 | 112 | 75 | 6 | 0.35 | 0.42 | 0.46 | 1.89 | 1.39 | 2 | 9 | 100 | 32 | R | 8.6 | |
| SPS 300-150 | 305 | 152 | 115 | 80 | 7 | 0.65 | 0.77 | 0.86 | 2.92 | 2.28 | 4 | 9 | 51-102-51 | 32 | N-R | 8.5 | |
| SPS 200-160 | 210 | 158 | 115 | 79 | 7 | 0.39 | 0.46 | 0.51 | 2.2 | 1.77 | 2 | 9 | 100 | 32 | R | 8.5 | |
| SPS 230-170 | 240 | 175 | 138 | 93 | 7 | 0.61 | 0.73 | 0.81 | 3.09 | 2.42 | 2 | 11 | 120 | 36 | R | 7 | |
| SPS 240-165 | 250 | 170 | 132 | 93 | 7 | 0.54 | 0.64 | 0.71 | 3.12 | 2.42 | 2 | 11 | 120 | 35 | R | 7.4 | |
| SPS 280-165 | 293 | 170 | 132 | 95 | 7 | 0.67 | 0.79 | 0.88 | 3.75 | 3.06 | 3 | 11 | 80 | 36 | N | 7.4 | |
| . | SPS 280-170 | 282 | 175 | 138 | 97 | 7 | 0.67 | 0.8 | 0.88 | 3.77 | 2.96 | 3 | 11 | 80 | 37 | R | 7 |
| SPS 280-180 | 290 | 185 | 140 | 97 | 7 | 0.84 | 1 | 1.11 | 4.21 | 3.34 | 3 | 11 | 80 | 36 | N | 7 | |
| SPS 300-180 | 316 | 185 | 140 | 97 | 8 | 0.85 | 1.01 | 1.12 | 4.69 | 3.79 | 3 | 11 | 100 | 36 | N-F | 7 | |
| SPS 330-180 | 347 | 185 | 140 | 97 | 8 | 0.9 | 1.07 | 1.19 | 5.3 | 4.1 | 3 | 11 | 110 | 38 | N-F | 7 | |
| SPS 350-180 | 367 | 186 | 140 | 97 | 9 | 1.12 | 1.33 | 1.48 | 5.35 | 4.27 | 3 | 11 | 120 | 38 | N-F | 7 | |
| SPS 300-215 | 318 | 220 | 168 | 117 | 9 | 1.18 | 1.4 | 1.56 | 6.66 | 5.38 | 3 | 11 | 100 | 50 | R | 5.88 | |
| SPS 330-215 | 343 | 220 | 168 | 117 | 9 | 1.3 | 1.55 | 1.72 | 7.2 | 5.86 | 3 | 11 | 120 | 50 | N-F-R | 5.88 | |
| SPS 350-215 | 368 | 220 | 168 | 117 | 9 | 1.38 | 1.64 | 1.82 | 7.75 | 6.2 | 3 | 11 | 120 | 50 | R | 5.88 | |
| SPS 370-215 | 390 | 220 | 168 | 117 | 9 | 1.45 | 1.72 | 1.91 | 8.45 | 6.48 | 4 | 11 | 90 | 50 | N-F-R | 5.88 | |
| SPS 400-215 | 420 | 220 | 168 | 117 | 9 | 1.54 | 1.83 | 2.03 | 9.1 | 7.29 | 4 | 11 | 100 | 50 | R | 5.88 | |
| SPS 450-215 | 470 | 220 | 165 | 117 | 9 | 1.56 | 1.86 | 2.06 | 9.95 | 7.8 | 5 | 11 | 90 | 50 | N-R | 5.88 | |
| SPS 500-215 | 525 | 220 | 168 | 117 | 9 | 1.84 | 2.19 | 2.43 | 11.6 | 9 | 5 | 11 | 100 | 50 | N-F-R | 5.88 |
Plastic buckets require a large flat washer of a minimum 30mm O/D between the hex nut and the inside of the bucket.
N = no holes
F = flat holes
R = recessed holes
