Deep drawn solid steel elevator bucket, designed to replace large fabricated elevator buckets. For use with both standard rubber and steel web belting along with plain holes, on a chain and bucket…
Deep drawn solid steel elevator bucket, designed to replace large fabricated elevator buckets. For use with both standard rubber and steel web belting along with plain holes, on a chain and bucket elevator.
| Brand | 4B |
|---|---|
| Part numbers | SJ330-250/3, SJ330-250/4, SJ370-250/3, SJ370-250/4, SJ470-250/3, SJ470-250/4 |
| Material | Steel |
| Use by Industry | Industrial |
| weight | Capacity | Recessed Holes | ||||||||||||

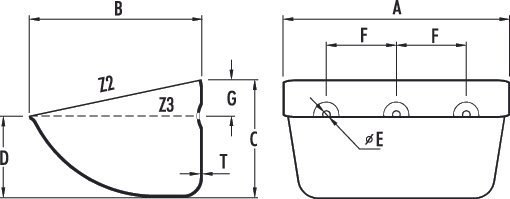

| . | SJ Bucket | A | B | C | D | T | Z2 | Z3 | E | F | G | Max. | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kg | (total) | (water) | No. | (dia. mm) | (mm) | (mm) | Pcs./Mtr | ||
| SJ330-250/3 | 340 | 260 | 190 | 130 | 3 | 4.5 | 9.6 | 7.2 | 3 | 13 | 80 | 55 | 5 | |
| SJ330-250/4 | 340 | 260 | 190 | 130 | 4 | 6 | 9.6 | 7.2 | 3 | 13 | 80 | 55 | 5 | |
| SJ370-250/3 | 380 | 260 | 190 | 130 | 3 | 5.1 | 10.8 | 8.3 | 4 | 13 | 80 | 55 | 5 | |
| SJ370-250/4 | 380 | 260 | 190 | 130 | 4 | 6.8 | 10.8 | 8.3 | 4 | 13 | 80 | 55 | 5 | |
| SJ470-250/3 | 480 | 260 | 190 | 130 | 3 | 6.5 | 14 | 10.5 | 5 | 13 | 80 | 55 | 5 | |
| SJ470-250/4 | 480 | 260 | 190 | 130 | 4 | 8.6 | 14 | 10.5 | 5 | 13 | 80 | 55 | 5 |
Special holes / thicknesses / wearbands - available on request.
Tell us your quantity and requirements — we reply within one business day.
