Mainly used above and below deck of the ship as control and communication cables in radio, radar and information systems.
Mainly used above and below deck of the ship as control and communication cables in radio, radar and information systems.
| Rated voltage | 250V |
|---|---|
| Conductor | Electrolytic, stranded, annealed copper wire. IEC 60228 Class 2 (tinned on request). |
| Insulation | PVC insulation with Polyamide protective covering. |
| Outer sheath | Flame retardant, PVC based compound. Color: Green. |
| Working temperature | – 20°C / + 85°C |
| Layup | Cores laid up in pair, pairs laid up concentrically. |
| Separator | Separating foil over pairs. |
| Individual screen | Screening from copper wires over twisted pairs. |
| Separator | Separating foil individual screen. |
| Inner sheath | PVC compound. |
| Separator | Water blocking tape. |
| Screen | Electrolytic copper braided screen (90% coverage). |
| Construction | VG 88778 |
| Tests and material | VG 88778 |
| Flame retardation | IEC 60332 /1, IEC 60332 / 3 Cat A |
| Min. bending radius (fixed) | 7 x (Overall Diameter) |
| Test voltage | 1,5kV |
| CROSS SECTION (mm2) | OVERALL DIAMETER (mm) | APPX. WEIGHT (kg / km) | COPPER WEIGHT (kg / km) |
|---|---|---|---|
| 2x2x0,75 | 16 | 370 | 28.8 |
| 4x2x0,75 | 18.1 | 490 | 57.6 |
Tell us your quantity and requirements — we reply within one business day.

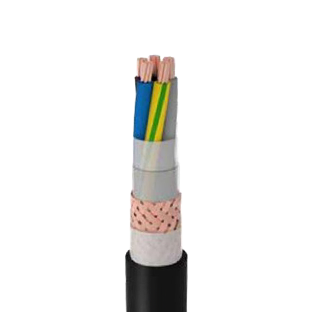

Defence CablesUsed as fixed installation cable in power, control and lighting electrical systems in most areas, below and above deck on Navy vessels. Comply the general requirements of BV 3400 (Specification…

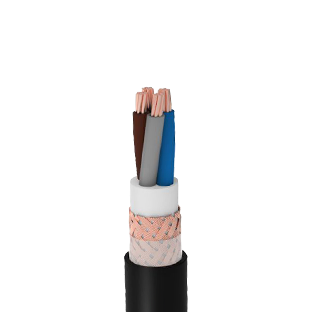

Defence CablesUsed as fixed installation cable in light power, control, distribution and lighting electrical systems in most areas, below and above deck on Navy vessels. Comply the general requirements of BV…
