The Speed Relay is a microprocessor controlled digital speed monitor for use with 2, 3, 4 wire NPN/PNP sensors, 4B’s WDA range of sensors or Contact sensor inputs, with a user programmable electromechanical relay and PhotoMOS Solid State Relay (SSR) outputs. The Speed Relay has a 160x80 pixel LCD display to provide information, and 3 front panel buttons to program settings.
Technical Specifications
Brand
4B
Part numbers
USR1V4, USR1V46
Features
Universal speed relay for all speed monitoring applications
Intuitive user configuration using control buttons and LCD display
Relay and solid state outputs with individual speed range monitoring
Supports complete 4B sensor range
Live, scalable, linear, and rotary speed display: mtrs/s, RPM. PPM
The Speed Relay is used to monitor the speed of a rotating shaft and detect if it rises or falls below a preset safety level. The DIN rail mounted speed relay can…

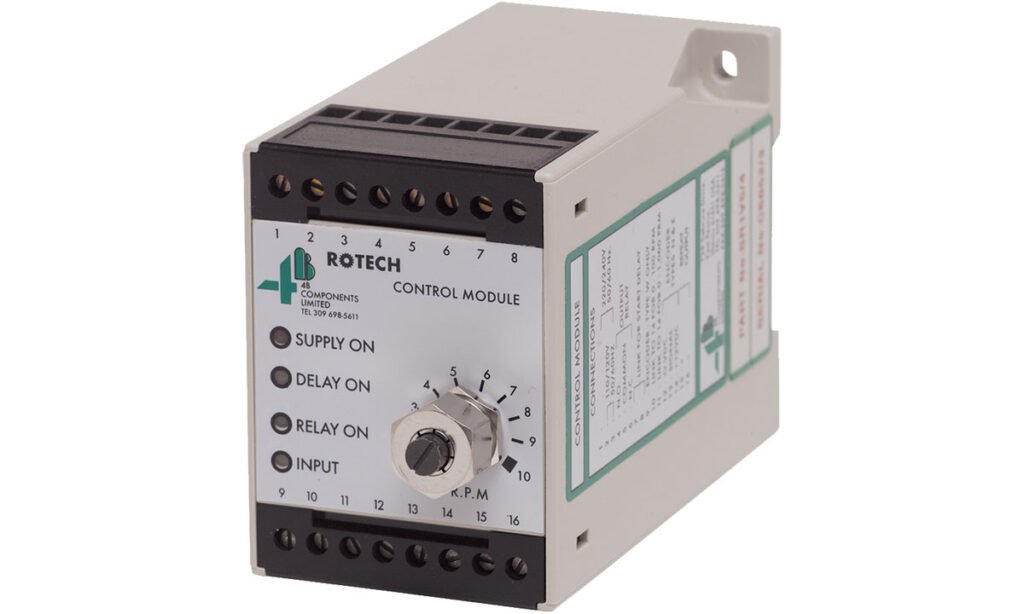

Rotational Speed Controller - AUE400 & SR4000 Series

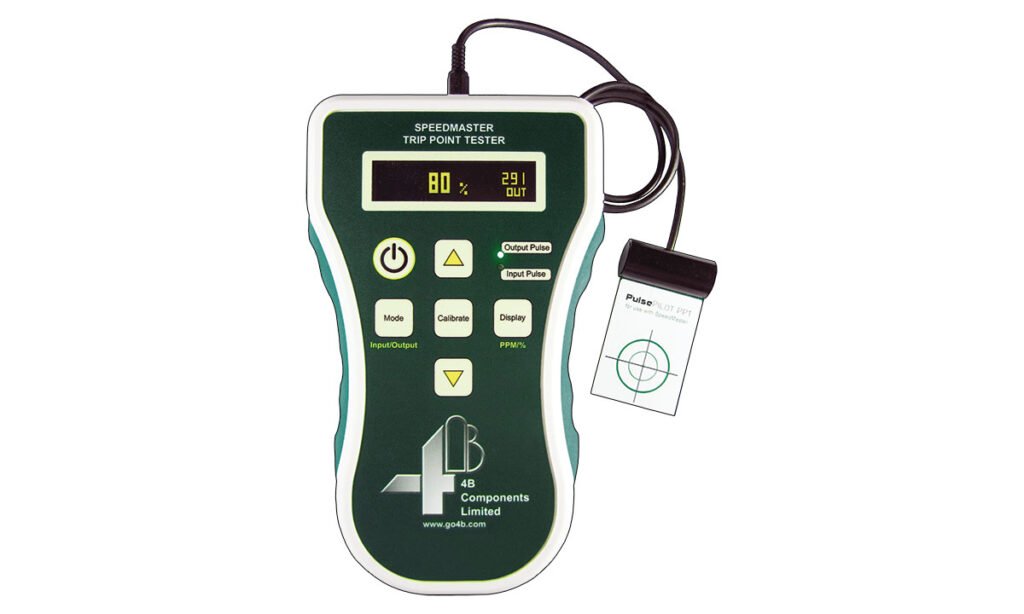

The SpeedMaster™ with Pulse Pilot is the only device that accurately tests the calibration of a speed switch, and allows testing of the 10% alarm and 20% shutdown features of the sensor…

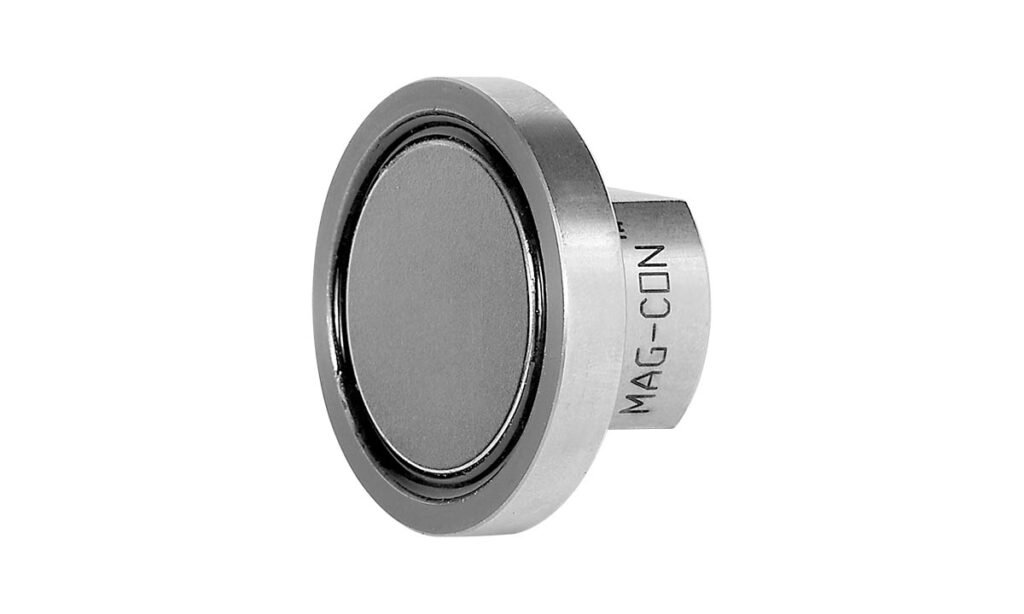

The Mag-Con™ (MAG2000) is an optional magnetic connector that screws onto the Whirligig and magnetically couples it to the shaft being monitored. The Mag-Con is made from stainless steel, has a holding…
