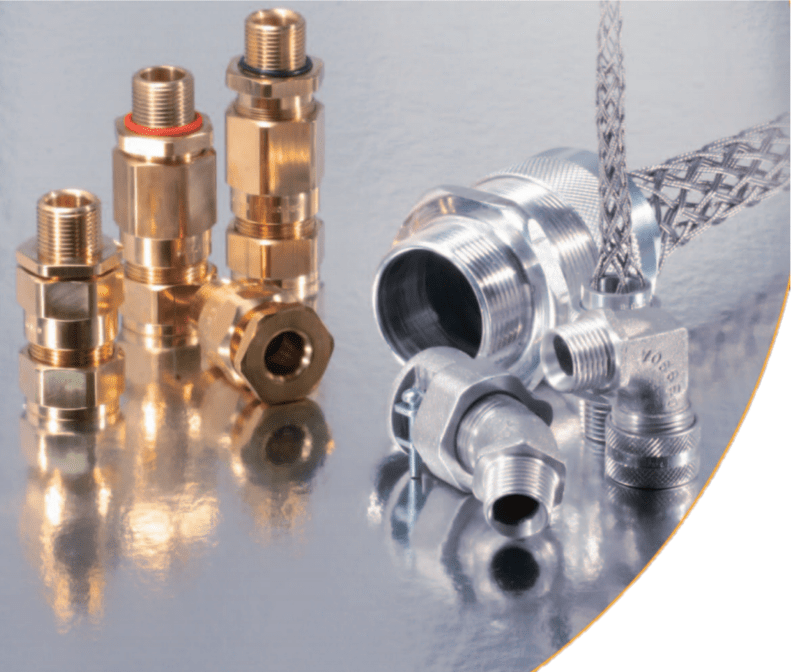

Amphenol offer a broad range of explosion proof and industrial cable glands for use within ATEX rated Zone 1 and Zone 2 hazardous areas. This cable gland range, suitable for both armoured…
Amphenol offer a broad range of explosion proof and industrial cable glands for use within ATEX rated Zone 1 and Zone 2 hazardous areas. This cable gland range, suitable for both armoured and unarmoured cable, is designed to perform in the most demanding of environments.
Manufactured from brass & stainless steel base materials, with a variety of plating options available these ATEX, IECEx & CSA certified cable glands are also available with IP, Deluge and NEMA certifications.
Amphenol Hazardous Area Connectors
This table is a quick reference guide to the cable glands found in this range by Amphenol.
Your proactive problem solvers experienced in succession planning for the replacement of obsolete, non-conformant and legacy equipment in hazardous areas.
Your first-choice provider of innovative and competitive solutions to ensure ATEX & IECEx Compliance for Hazardous Area Electrical, HVAC & Process Instrumentation Equipment to UK and international projects.
Panels | Plugs | Isolators | Enclosures | Lighting | Control Stations | Motor Starters | Call Points | Heat Trace | Gas Detection | Flame Detection | Process Instrumentation | Process Heating | Fans | Security Locks
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| Gland Type | Outer Seal | Inner Seal | Lead Option | Armour Clamp | Certification | IP Rating |
| ATEX/CSA Approved Cable Glands with Elastomeric Seals | ||||||
| EX-20 | ✓ | ✓ | ✓ | ✓ | Ex d/Ex e | Deluge, IP66, IP68 NEMA, 4X |
| EX-25 | ✓ | ✓ | ✓ | ✓ | Ex d/Ex e (Not CSA) | IP66 IP67 |
| EE-30 | ✓ | ✕ | ✓ | ✕ | Ex e (Not CSA) | IP66 |
| EX-35 | ✓ | ✕ | ✕ | ✕ | Ex d/Ex e | IP66 IP68 NEMA, 4X |
| EX-40 | ✓ x2 | ✕ | ✕ | ✕ | Ex d/Ex e | |
| EX-45 | ✓ | ✕ | ✕ | ✕ | Ex d/Ex e | |
| EE-RG | ✓ | ✕ | ✕ | ✕ | Ex e | IP66 IP68 |
| ATEX/CSA Approved Cable Glands with Elastomeric Seals for Flat Cable | ||||||
| EX-50 | Flat Cable | Flat Cable | ✕ | Braid | Ex d/Ex e | IP66 |
| EX-55 | ✕ | ✕ | ✕ | Ex d/Ex e | IP68 | |
| ATEX Approved Compound Filled Barrier Cable Glands | ||||||
| EX-60 | ✓ | Compound | ✓ | ✓ | Ex d | Deluge, IP66, IP68 NEMA, 4X |
| EX-65 | Compound | ✓ | ✕ | |||
| EX-70 | ✓ | ✓ | ✕ | |||
| EX-75 (stopper box) | ✕ | ✕ | ✕ | |||
| Non Hazardous Industrial Cable Glands | ||||||
| CGA | ✕ | ✕ | ✕ | ✓ | Industrial (BS6121) | IP30 |
| CGSB | ✓ | ✕ | ✕ | ✓ | Industrial | IP66 |
| CGDS | ✓ | ✓ | ✓ | ✓ | IP67 | |
| CGU | ✓ | ✕ | ✓ | ✕ | IP66 | |
