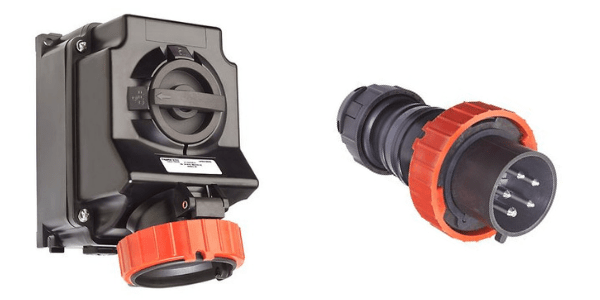

Appleton ATX UPR432PR6 Plug

Product Overview

APPLETON ATX UPR432pR6

Plugs & Sockets | ATEX Certified | Zone 1 & Zone 2 Hazardous Areas

UPR Series 32 Amp Plugs and Sockets manufactured by Appleton ATX are compact, lightweight, strong and corrosion resistant.

The plugs and sockets with ATEX Certification can be used with both onshore and offshore portable and stationery electrical equipment in hazardous areas with corrosive atmospheres and those classed as Zone 1 and 2 and Zone 21 and 22 installations.

ATEX plug Specification

• Amperage: 32 Amps
• Number of Pins: 4P (3P + Earth)
• Voltage: 380-415V
• Plug Colour: Red
• Frequency: 50/60Hz (Hertz)

UPR432PR6 plug should be used in conjunction with ATX UPR432RR6

plug Features

• Plug and socket system is designed with a mechanical interlock to insure disengagement cannot occur while energized
• Large ON/OFF actuator on the receptacle gives clear, visible indication of the receptacle status for maximum hazardous location protection
• LV receptacle can be locked in 0 (Off) and 1 (On) positions
• Different voltages are color coded for easy identification
• The receptacles are keyed to accept UPR plugs of the proper voltage
• Receptacle explosion proof switch for safe use in hazardous areas
• ATX UPR plugs can be used in non-hazardous IEC 60309-2 sockets
• Operating temperature of -20 °C to +55 °C (-4 °F to +131 °F)
• Used With ATX UPR 32 Amp Socket- UPR432RR6
