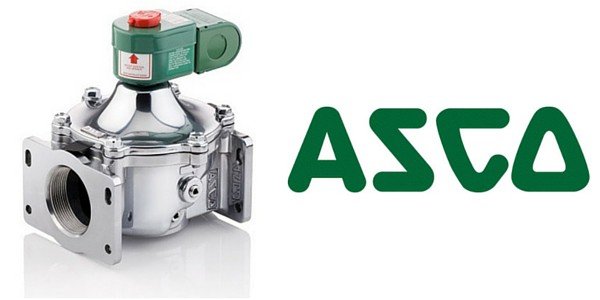

ASCO 214 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 214 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 214 solenoid valves feature a unique double disc design with overtravel provides redundant sealing for leak tight shutoff.
With a visual indication of open and shut position, the ASCO 214 solenoid valves also feature a proof of closure switch 1 amp & visual indicator.
ASCO 210 valves are ATEX & IECEx certified – available with explosion-proof solenoid enclosure and also UL listed for fire protection systems. CSA certified solenoid valve.
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Body | Aluminium |
| Seals and disc | NBR |
| Core Tube | 305 Stainless steel |
| Core Guide | POM |
| Rider Ring | PTFE |
| Core and plugnut | 430F Stainless Steel |
| Springs | 302 Stainless steel |
| Shading coil | Copper |
| Pipe plug | Zinc Plated Steel |
Tell us your quantity and requirements — we reply within one business day.
