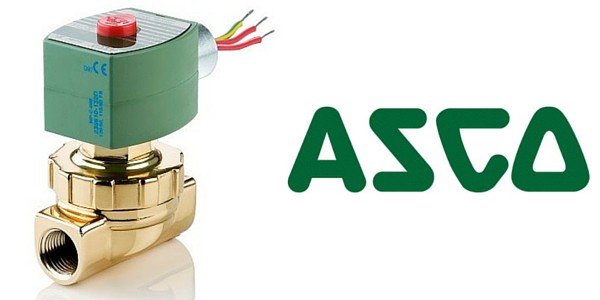

ASCO 266 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 266 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 266 solenoid valves are general purpose enclosures featuring 2 way normally closed or normally open operation.
The valves are suitable for on-off control of fuel oil in commercial and industrial burners as well as being suitable for both light and heavy oil fuels.
Typical industries and applications include combustion within oil and gas and other industries.
Fluids suitable for use with ASCO 266 Solenoid Valves include:
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Standard Coil and Class of Insulation | Watt Rating and Power Consumption | Spare Coil Family | ||||
| AC | General Purpose | |||||
| Watts | VA Holding | VA Inrush | 24/60 | 120/60 | 240/60 | |
| 110/50 | 220/50 | |||||
| F | 15.4 | 27 | 160 | 099257 | 099257 | 099257 |
| F | 20 | 43 | 240 | 099257 | 099257 | 099257 |
| Standard lead length 18″ (72″ leads optional – change suffix “D” to “K”). | ||||||
| Body | Seals And Disc | Core And Plugnut | Springs | Shading Coil |
| Brass | FKM (Suffix V), SS (Suffix L) | 430F Stainless Steel | 302 Stainless Steel | Copper |
