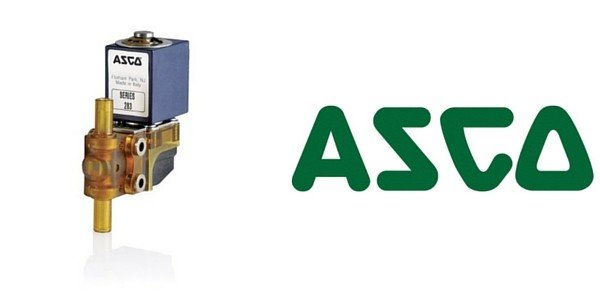

ASCO 283 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 283 solenoid valves are part of the ASCO Red Hat range of valves.
NC = Normally Closed Valve
NO = Normally Opened Valve
Typical applications of the ASCO 283 solenoid valves include in medical analyzers, biotechnology, and the chemical industry.
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Valve Parts in Contact with Fluids | |
| Body | Spigot – PEI (polyetherimide) Threaded – 1/4: PEI (polyetherimide) 1/2: PPS (polyphenylene sulphide) |
| Poppet seal | VMQ, EPDM or FPM |
| Coil insulation class | 12, 24 VDC +10%, -5% |
| Connector | 4, 9, 13 Watts |
| Connector specification | |
| with coil 6W/6W (BMX) | Class F |
| with coil 8W/9W (AMX) | 14˚F to 140˚F (-10˚C to 60˚C) |
| Electrical safety | DIN Spade Terminals |
| Electrical enclosure protection | Moulded IP65 (EN 60529) |
| Standard voltages | DC (=) : 12V – 24V (Other voltages and 60 Hz on request) AC (~) : 24V – 115V – 230V / 50 Hz |
Tell us your quantity and requirements — we reply within one business day.
