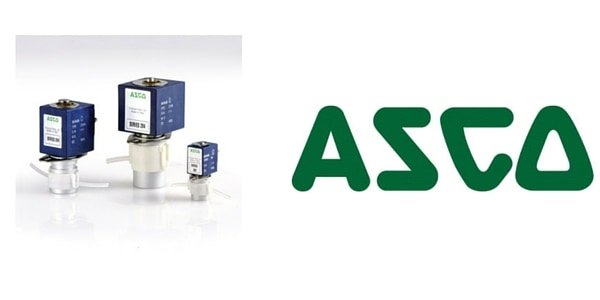

ASCO 284 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 284 solenoid valves are part of the ASCO Red Hat range of valves.
NC = Normally Closed Valve
NO = Normally Opened Valve
Typical applications of the ASCO 284 solenoid valves include in medical equipment, analytical instruments, food and industrial applications.
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Valve Parts in Contact with Fluids | |
| Recommended Tubing | VMQ (Silicone), max. hardness 50 Shore A (Not supplied with valve) |
| Body | Anodized Aluminum |
| Pinch Mechanism | POM (reinforced acetal copolymer) |
| Internal Solenoid Parts | Stainless Steel |
| Core Tube | Nickel plated brass |
| Standard Voltage | 12, 24 VDC +10%, -5% |
| Power Consumption | 4, 9, 13 Watts |
| Duty Cycle Rating | Continuous |
| Coil Insulation | Class F |
| Ambient Temperature | 14˚F to 140˚F (-10˚C to 60˚C) |
| Electrical Connection | DIN Spade Terminals |
| DIN Connectors (not included with valve) | |
| – 4 Watt Coil | Size 9.4 mm, Form C |
| – 9 Watt Coil | Size 18 mm, Form A |
| – 13 Watt Coil | Size 18 mm, Form A |
| Protection Rating | IP65 with DIN Plug Connector |
