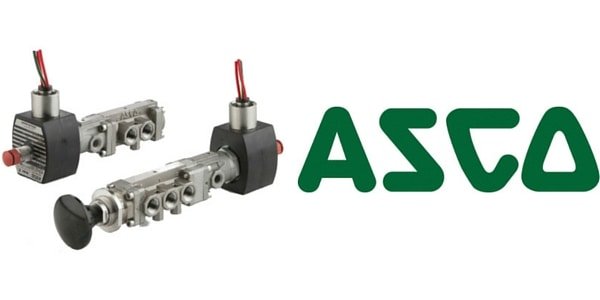

ASCO 362 Solenoid Valves – Spool Valve 3 Way & 4 Way NACE MR0175

Product Overview

ASCO 362 solenoid valves are part of the ASCO Red Hat range of valves.

ASCO 362 solenoid valves are ideal for valve automation within the oil and gas industry. The reliable, robust design offers flow performance of 2.0 Cv.

Corrosion Resistant with 316 L Stainless Steel valve materials, the ASCO 362 solenoid valves are ideal for offshore and harsh environments including the oil and gas industry.

ASCO 362 Solenoid Valves – Product Features

Industry leading flow performance – ASCO 362 solenoid valves deliver the best performance per pipe size with a flow of up to 15.5 Cv for 1″.

4-way construction available in any pipe size – This construction provides the simplest and most cost effective means to pilot double acting process valves.

ASCO’s proven solenoid technology and reliability –

• ASCO solenoid valves are proven in use in a wide range of valve automation applications.
• 1.4 W solenoid with ATEX & IECEx, UL and CSA hazardous location approvals supports global designs and simplifies inventory requirements
• Low power options reduce power consumption
• Solenoid options with factory sealed leads reduce installation cost

Corrosion resistance –

• 316L Stainless Steel valve materials offer longer life in harsh environments
• NACE compliant (non solenoid versions only)

Extensive solenoid, pneumatic, and manual options – 3-way and 4-way valves with the following options offer solutions for a broad range of applications including:

• Low Temperature
• Palm Button
• Pilot Operated
• Dual Pilot
• Single Solenoid
• Dual Solenoid

ASCO SOLENOID VALVES – HAZARDOUS AREA LOCATIONS, safety & standards

ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.

Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.

ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
