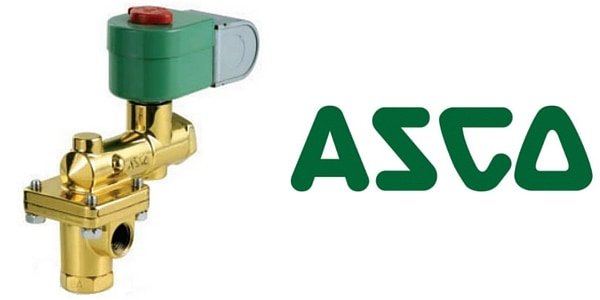

ASCO 377 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 377 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO 377 solenoid valves are general purpose enclosures suitable for combustion and heating equipment applications within the oil and gas industry.
The 3 -way operation of the ASCO 377 allows diversion of flow from commercial/industrial oil burners to recirculatory system.
Typical applications for the ASCO 377 solenoid valves include combustion and heating equipment for use throughout industries such as oil and gas.
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Valve Parts in Contact with Fluids | |
| Body | Brass |
| Seals And Disc | FKM |
| Core And Plugnut | 430F Stainless Steel |
| Springs | 302 Stainless Steel |
| Shading Coil | Copper |
| Standard Coil and Class of Insulation | Watt Rating and Power Consumption | Ambient Temperature °F | Spare Coil Family | |||
| AC | General Purpose | Explosionproof | ||||
| Watts | VA Holding | VA Inrush | AC | AC | ||
| F | 15.4 | 27 | 160 | 32 to 115 | 099257 | – |
| Standard Voltages: 24, 120, 240 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz). | ||||||
