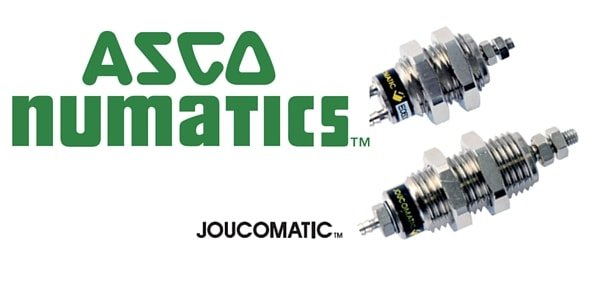

ASCO 429 Panel Air Cylinders – ASCO Numatics Joucomatic

Product Overview

ASCO Numatics Joucomatic Cylinders. Panel Cylinders.

ASCO 429 panel cylinders are specified to provide air or neutral gas flow control up to 7 bar using nickel plated brass body cylinders.

ASCO Numatics Joucomatic panel cylinders suit 6-16mm diameters available in both single or double acting designs.

ASCO Numatics Joucomatic products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

Features

• compact panel cylinders with rear connection including double acting cylinder
• threaded body and nuts enable adaptation on any support through a tapped or smooth hole
• adjustable body axis opposite the cylinder support

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 3-7 bar (single-acting cylinder), 1.5-7 bar (double acting cylinder)

Cylinder Ambient Temperature : +5°C to +60°C

panel CYLINDER Construction

ASCO 429 Panel Air Cylinders :

• Body – Nickeled brass cylinder
• Nuts – Nickeled brass
• Rod – Iron steel
• Piston Seals – NBR (nitrile)

ASCO 429 Panel Air Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 429 panel air cylinders – for technical support contact our team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

ASCO Numatics Joucomatic 429 Panel Air Cylinders – Dimensions

ASCO Numatics valves and cylinders control the flow of air, gas, water, oil and steam in commercial, industrial and hazardous areas.
