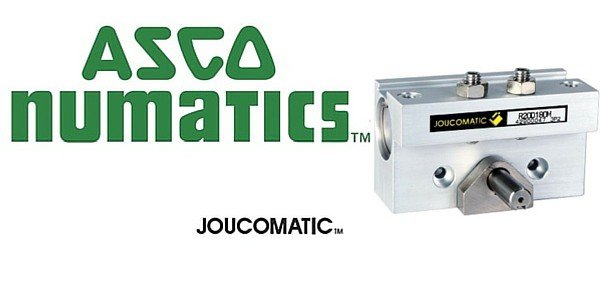

ASCO 429 Rotatable Cylinders 2, 3 & 4 Positions – ASCO Numatics Joucomatic

Product Overview

ASCO Numatics Joucomatic Cylinders. Rotatable Cylinders.

ASCO 429 rotatable cylinders are specified to provide air or neutral gas flow control up to 7 bar using light alloy body cylinders.

ASCO Numatics Joucomatic rotatable cylinders suit 16-18-22mm diameters available in a double acting design with 2, 3 & 4 positions

ASCO products include an extensive range of solenoid valves, angle body piston valves, valve manifolds, cylinders, filters, regulators, lubricators and accessories.

ASCO Numatics Joucomatic 429 Rotatable Cylinders FEATURES

• Equipped for magnetic position detectors
• 2, 3 and 4 positions
• Mounting options
• Cushioning -2 position models – Adjustable pneumatic cushioning 3 and 4 position models – No cushioning

Fluid : Air or neutral gas, filtered, lubricated or not

Operating Pressure : 2 to 7 bar

Cylinder Ambient Temperature : + 5°C, +60°C

ASCO 429 Rotatable Cylinders – SELECTION TABLE

The following should enable the correct selection of ASCO 429 rotatable cylinders – for technical support contact our team who are trained by ASCO Numatics to provide expert advise on pneumatic cylinders and actuators.

❉ Define angles α + β (2 α + β = 180°).

ASCO Numatics Joucomatic 429 Rotatable Cylinders – Dimensions

ASCO Numatics valves and cylinders control the flow of air, gas, water, oil and steam in commercial, industrial and hazardous areas.
