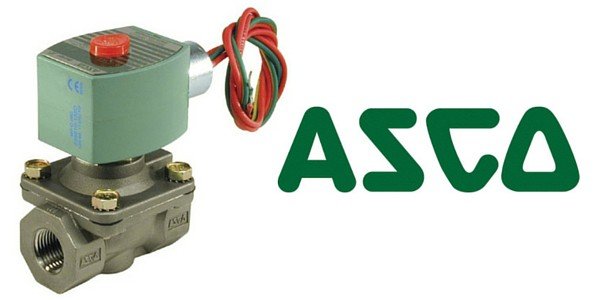

ASCO HV266 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO HV266 solenoid valves are part of the ASCO Red Hat range of valves.
ASCO HV266 solenoid valves are 2-way normally closed operation valves for the control of commercial and industrial gas burners.
The ASCO HV266 solenoid valves are suitable for high pressure applications and features a stainless steel body construction.
In addition to being mountable in any position, the ASCO HV266 solenoid valves are general purpose, Type 1 metal enclosures with 7/8″ hole for 1/2″ conduit connector.
Watertight, Types 1, 2, 3, 3S, 4 & 4X molded epoxy enclosure with 1/2″ conduit hub.
ASCO solenoid valves (2-way, 3-way and 4-way type including NAMUR interfaces) control the critical flow of air, gas, water, oil and steam across all industries – hazardous area solenoid valves are available for Division and Zone classifications.
Class I, Division 2 and Zone 1/Zone 2 approved solenoid valves according to ATEX, IECEx, FM, CSA and UL are available. Flameproof and explosion-proof valves can be specified for potentially explosive atmospheres where there is a presence of flammable liquids, gases or vapours.
ASCO valves improve reliability and performance of safety systems according to IEC 61508, IEC 61511 and Safety Integrity Levels (SIL) – ASCO spool valves with SIL 4 capability are SAEL listed as assessed by Exida and TÜV.
| Category | Process Instrumentation |
|---|
| Valve Parts in Contact with Fluids | |
| Body | Stainless steel (300 series) |
| Seals and disc | NBR |
| Core tube | 305 stainless steel |
| Core and plugnut | 430F stainless steel |
| Springs | 302 stainless steel |
| Shading coil | Silver |
| Standard Coil Class of Insulation | Watt Rating and Power Consumption | Ambient Temp.°F | Spare Coil Family | |||
| AC | General Purpose | Explosion proof | ||||
| Watts | VA Holding | VA Inrush | AC | AC | ||
| F | 17.1 | 40 | 90 | 32 to 125 | 238610 | 238614 |
| F | 15.4 | 27 | 160 | 32 to 125 | 99257 | – |
| F | 16.1 | 35 | 180 | 32 to 125 | 272610 | 272614 |
| Standard Voltages: 24, 120, 240 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz). | ||||||
