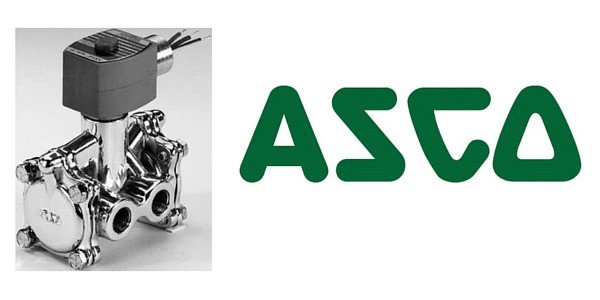

ASCO JPIS 8316 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
ASCO JPIS 8316 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The JPIS 8316 has diaphragm poppet valves suitable for controlling air, inert gas, and liquids. The internal pilot controls large orifices to provide high flows and the solenoid valve can be used
ASCO JPIS 8316 has a resilient seating for tight shutoff and offers flexibility as it can be mounted in any position.
The nominal ambient working temperature ranges for the ASCO JPIS 8315 hazardous area solenoid valve are -0˚C to 52˚C (-32˚F to 125˚F).
Contact our team for copy hazardous area certificates.
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X
IECEx approved for: Ex ia IIC T6 Ga under IECExFMG10.0008X
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
• Standard 3-way and 4-way solenoid valves
• Direct-acting and pilot-operated solenoid valves
• Manual reset and NAMUR valves
• Rugged 316L stainless steel valves for harsh environments
• Low Power Intrinsically Safe and Non-Incendive valves
• Low temperature solenoid valves down to -58°F (-50°C)
Read Blog ➡ ATEX Solenoid Valves – ASCO Valves for International Hazardous Area Installations
| Category | Process Instrumentation |
|---|
| ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) | CSA | UL FM | ATEX IECEx |
| ASCO JPIS 8316 | 3-Way Valve | 1/4-3/4 | 5.5 (4.7) | ✓ | ✓ | ✓ |
| Valve Parts In Contact With Fluid | ||
| Body | Brass | |
| Seals and Discs | NBR | |
| Diaphragm Assembly | NBR | |
| Core Tube | 305 Stainless Steel | |
| Core and Plugnut | 430F Stainless Steel | |
| Core Springs | 302 Stainless Steel and 17-7PH Stainless Steel | |
| Shading Coil | Copper | |
| Core Guide | CA | |
