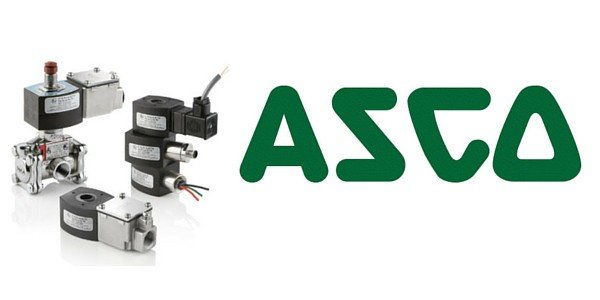

ASCO JPIS 8344 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
ASCO JPIS 8344 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The JPIS 8344 has 4 different coil terminations and H class coil construction. Designed solely for installation in intrinsically safe or NIFW areas, with properly approved and sized limiting barriers.
ASCO JPIS 8344 is very flexible as it is compatible with supervisory current applications and is mountable in any position.
Contact our team for copy hazardous area certificates.
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X
IECEx approved for: Ex ia IIC T6 Ga under IECExFMG10.0008X
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
• Standard 3-way and 4-way solenoid valves
• Direct-acting and pilot-operated solenoid valves
• Manual reset and NAMUR valves
• Rugged 316L stainless steel valves for harsh environments
• Low Power Intrinsically Safe and Non-Incendive valves
• Low temperature solenoid valves down to -58°F (-50°C)
Read Blog ➡ ATEX Solenoid Valves – ASCO Valves for International Hazardous Area Installations
| Category | Process Instrumentation |
|---|
| ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) | CSA | UL FM | ATEX IECEx |
| ASCO JPIS 8344 | 4-Way Valve | 1/4-3/4 | 5.6 (4.8) | ✓ | ✓ | ✓ |
| Valve Parts In Contact With Fluid | |||
| Body | Brass | Stainless Steel | Aluminium |
| Seals and Discs | PUR, NBR | ||
| Sleeve | 430 Stainless Steel | ||
| Core and Plugnut | 430F Stainless Steel | ||
| Core Springs | 302 Stainless Steel | ||
| Pilot Seat Insert (Series 8316 & 8344 only) | POM | ||
| Rider Rings | PTFE | ||
| Spring Retainer | POM | ||
