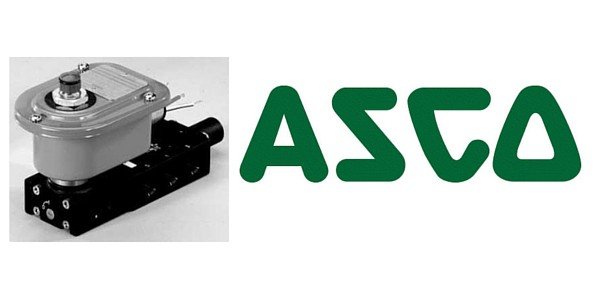

ASCO JPIS 8551 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
ASCO JPIS 8551 intrinsic safety valvesare part of the hazardous area solenoid valve range suitable for use in ATEX Zone 1 and Zone 2 hazardous area applications.
The JPIS 8551 mounts directly to actuators with NAMUR interfaces and is designed solely for installation in intrinsically safe areas with properly approved and sized current and voltage-limiting safety barriers.
These valves are suitable for use in hazardous locations, as classified by the National Electrical Code: Classes I, II, and III, Division 1, including Groups A through G.
ASCO JPIS 8551 uses electronically enhanced solenoids that have efficient cartridge operators and non polarised coils with triple redundant blocking diodes.
Capacitor stores power required to open the valve, while blocking diodes prevent it from flowing back into the wiring in the hazardous area and Low Power and General Purpose constructions are available.
The nominal ambient working temperature ranges for the ASCO JPIS 8551 hazardous area solenoid valve are -20˚C to 60˚C (-4˚F to 140˚F).
Contact our team for copy hazardous area certificates.
II 1 G Ex ia IIC T6 Ga under FM10ATEX0015X
IECEx approved for: Ex ia IIC T6 Ga under IECExFMG10.0008X
ASCO solenoid valves provide flow control in hazardous area industries including oil, gas, petrochem, mining, power and process industries to ATEX (European), IECEx (International), CSA (North America), UL (United States & Canada), NEPSI (China), INMETRO (Brazil) and TR CU (Russia) approvals.
• Standard 3-way and 4-way solenoid valves
• Direct-acting and pilot-operated solenoid valves
• Manual reset and NAMUR valves
• Rugged 316L stainless steel valves for harsh environments
• Low Power Intrinsically Safe and Non-Incendive valves
• Low temperature solenoid valves down to -58°F (-50°C)
Read Blog ➡ ATEX Solenoid Valves – ASCO Valves for International Hazardous Area Installations
| Category | Process Instrumentation |
|---|
| ASCO Valve Series | Type | Pipe Size (in) | Max. Cv (Kv) | CSA | UL FM | ATEX IECEx |
| ASCO JPIS 8551 | 3-Way/4-Way Valve | 1/4 | .86 (.75) | ✓ | ✓ | ✓ |
| Valve Parts In Contact With Fluid | ||
| Body | Anodized Aluminum | 316 Stainless Steel |
| Seals and Discs | NBR and PUR | |
| Sleeve | 304L Stainless Steel | |
| Core Spring | 302 Stainless Steel | |
| Core and Plugnut | 430F Stainless Steel | |
| Rider Ring | PTFE | |
| Spring Retainer | CA | |
| End Covers | Glass Filled PA + FV | 316 Stainless Steel |
| Spool | CA | |
| Internals | Zamak, Steel, CA | |
