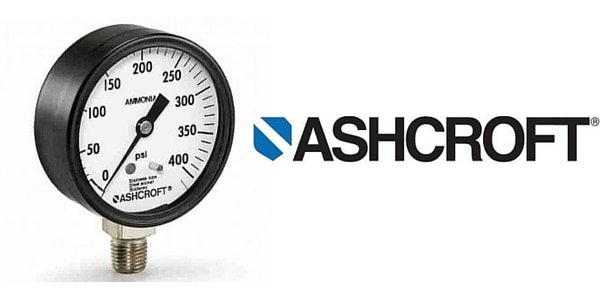

Ashcroft 1005M XRG Agricultural Ammonia Gauge

Product Overview

Ashcroft 1005M XRG agricultural ammonia gauge is used in the agricultural sector as it is designed to perform accurately and reliably in rugged applications.

The Ashcroft 1005M XRG agricultural ammonia gauge has been designed with extended gauge life and superior gauge performance thanks to the patented PowerFlex^™ movement.

Ashcroft 1005M XRG – Application

• Agricultural Equipment

The Ashcroft 1005M XRG agricultural ammonia gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1005M XRG Agricultural Ammonia Gauge – Features

• PowerFlex^™ movement provides superior resistance to shock, vibration and pulsation; extends product life and reduces maintenance costs
• True Zero^™ reduces reading errors by using a “zero zone” instead of conventional dial pins (posts); this ensures product safety, integrity and system control
• Glass window to prevent fogging

ASHCROFT 1005M XRG – How To Order

Here is a typical ordering example for an Ashcroft 1005M XRG pressure gauge – for technical support, specification and sales contact our team.

Ashcroft Gauge 45-W-1000-H-02L-XAP-#100

• Gauge Dial Size : 2 1/2″ (25)
• Movement : Patented Ashcroft PowerFlex (W)
• Case Type Number : 1000 (1005)
• Connection Material : Steel (M)
• Connection Size/Location : 1/4″ NPT Lower (02L)
• Window and Retaining Ring : Glass (XRG)
• Gauge Range : 0/400 psi (#400)
