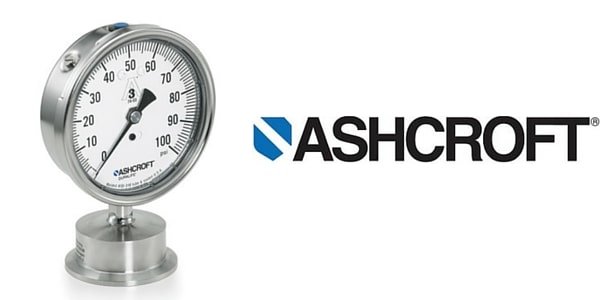

Ashcroft 1032 sanitary pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety. The Ashcroft 1032 pressure gauge has been designed to withstand…
Ashcroft 1032 sanitary pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety. The Ashcroft 1032 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
The Ashcroft 1032 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Watch how Ashcroft pressure gauges and temperature instruments protect people in all industries and every environment.
Ashcroft gauges monitor pressure in filtration, flow and level applications including pumps, control systems, filters and heat exchangers – providing process pressure measurement for hydrostatic pressure, filter monitoring or regulating flow and deionized water.
Ashcroft Gauges – Instrumentation For Water & Waste Water Treatment Industries
Image : Mott MacDonald
Hazardous area (ATEX & IECEx Certified) flameproof pressure gauges are available for potentially explosive atmospheres – T&D’s CompEX Certificated Sales Team supply worldwide oil, gas and petrochem projects, call us. ➡ Did you know? T&D distribute Water, Gas & Heat Meters from Itron, Elster and Kamstrup : visit our Metering section.
| Category | Process Instrumentation |
|---|
| Ashcroft Model Number | Ashcroft 1032 |
| Accuracy | 1.5% F.S for pressure ranges 100 psi and above. 2.0% F.S for vacuum compound and ranges below 100 psi |
| Ranges | 15# through 1000# including compound & vacuum |
| Diaphragm Material & Surface Finish | 316L SS, 12 to 20 RA electropolished |
| Bourdon Tube & Socket Material | 316L SS |
| Process Connection | 2½” & 3½” dial size: 1½” or 2″ Tri-Clamp. 4½” dial size: 2″ Tri-Clamp |
| Connection Location | Lower or Lower Back |
| Dial Material | White with black markings with 3A-74 |
| Dial Size | 2½”, 3½” or 4½” diameter |
| Case & Ring Material | 300 SS electropolished |
| Window | 2½” & 3½” dial size: Polycarbonate. 4½” dial size: Glass |
| Pointer | 2½” dial size: Black-painted aluminium, adjustable. 3½” dial size: Black-painted aluminium with external adjust. 4½” dial size: Black-painted aluminium, adjustable |
| Ring Type | Bayonet, removable |
| Movement | 2½” & 3½” dial size: 300 SS. 4½” dial size: 400 SS |
| System Fill | USP food grade glycerin standard. Other materials available. |
| Agency Approvals | 3A compliance to sanitary standard 74 |
| Clean or Steam in Place (CIP or SIP): | Process temperature limit of 280ºF (138ºC) |
| Autoclave or Sterilise | Ambient temperature limit of 300ºF (149ºC) when supplied with polysulfone window (3½” dry gauge only) |
