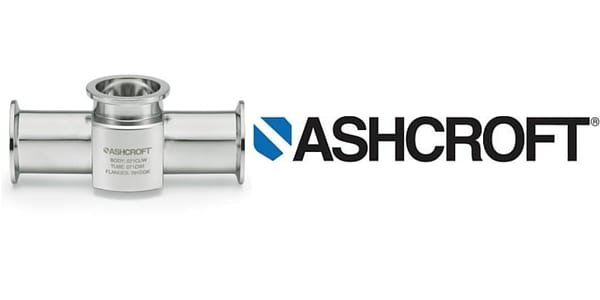

Ashcroft 1037 Sanitary Instrument Fitting

Product Overview

Ashcroft 1037 sanitary instrument fitting is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety. The Ashcroft 1037 sanitary instrument fitting has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.

Ashcroft 1037 Sanitary Instrument Fitting – Applications

• Specialised OEM Equipment
• Food & Dairy
• Pharmaceutical
• Biotech
• Medical Equipment
• Filtration

The Ashcroft 1037 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1037 Sanitary Instrument Fitting – Features

• Wetted material heat number stamped on each fitting
• Clean or Steam in Place (CIP/SIP)
• Autoclave or Sterilize
• Pipe size: 1/2″ to 2″; mates with type 1036 Inline Sanitary gauge
• 316L stainless steel construction
• Wetted material: electropolished 316LSS (12 to 20RA) internal surface finish
• End connections Tri-Clamp^® sizes
• Instrument connections Tri-Clamp^® modified

Ashcroft 1037– HOW to Order

Here is a typical ordering example for an Ashcroft 1036 pressure gauge – for technical support, specification and sales contact our team.

Ashcroft Gauge : 35-1036-S-L-15-L-XXX-100#

• Gauge Dial Size : 3 1 ⁄2 ˝(35)
• Case Type Number : 1036 (1036)
• Tube and Socket Material : 316SS (S)
• Fill : (glycerin) (L)
• Connection Size : : 1.5˝ seal (15)
• Connection Location : Lower (L)
• Option : (XXX)
• Gauge Range : 100 (100#)
