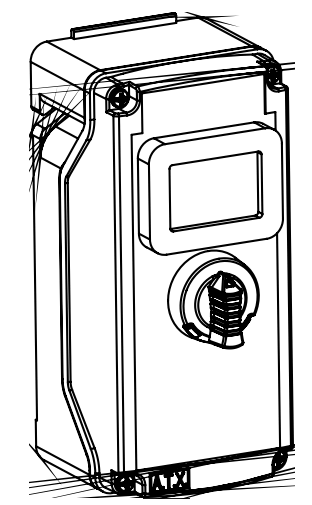

ATEX Ammeter & 3-Position Selector Switch | Zone 1 & Zone 2 Hazardous Area | ATX U43W2VA13M3

Product Overview

• Zone 1 and Zone 2 Hazardous Areas
• Zone 21 and Zone 22 Hazardous Areas
• II 2 GD
• Ex de IIC/Ex demb IIC/Ex tD A21
• IP66 – IK09

ATX U43W2VA13M3

Ammeter & 3-Position Selector Switch

• Manufacturer: Appleton ATX
• Order Code: U43W2VA13M3
• Description: 1x ammeter 1.89 x 1.89 in/48 x 48 mm, 1A C.T.,3 F.L.C., with 0 – 1 – 3 scale 1x 3-position selector switch ‘I – 0 – II’ with spring return from II to 0 1NO + 1NC contacts
• Bottom Entries: 2 X M20
• Weight: 0.80kg (1.76 lb)
• Volume: 2.5dm³ (152.26in³)
• View complete range of ATEX Control Stations
