Wildlife Friendly Amber Light | Linear Light Fitting Zone 2 & Zone 22
Wildlife Friendly Amber Light | Linear Light Fitting Zone 2 & Zone 22
Zone 2 Light Fittings ATEX, IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres
Linear Generation II | UKCA Approved

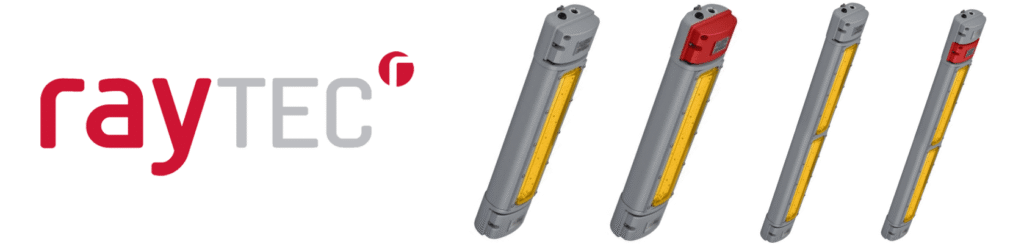

SPARTAN Linear Generation II range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations near hazardous coastal facilities, or nature reserves in potentially explosive atmospheres. It uses a warmer wavelength of LED, avoiding the dangers associated with wildlife wandering towards blue-white light.
Using Raytec’s field-proven, long-life LED technology, the WL84 & WL168 Standard & Emergency Linear is globally certified for all Zone 2 applications.
Zone 2 Gas
Hazardous Area T Rating – T4 (T6 available on request)
Zone 22 Dust
The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents (WL84 Standard & Emergency) & 2x36W fluorescents (WL168 Standard & Emergency), with lumen output and light distribution also offering a direct replacement.
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+, while providing a lumen output of up to 3,524 delivered lumens (WL84) and to up 7,048 delivered lumens. (WL168). All SPARTAN luminaires come with an industry leading 5 year warranty.
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| Certification: | ATEX and IEC Ex rated for Zone 2/21/22 Gas and Dust, and UL/CSA inc. C1D2. UKCA approved. |
| Beam Angles: | Symmetrical and Asymmetrical optics |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Consumption: | WL84 Standard 24W WL84 Emergency 32W WL168 Standard 49W WL168 Emergency 56W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 80 (WL84 Standard & Emergency) 160 (WL168 Standard & Emergency) |
| Power Output: | Up to 7,048lm |
| Wavelength: | 600nm |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -40°C to +60°C (-20°C to +50°C for emergency variants) |
| SPARTAN Zone 2/22 ATEX and IEC Ex LED Wildlife Friendly Linear Luminaires | ||
| SPARTAN Zone 2/22 Wildlife Friendly Linear WL84 | ||
| SPZ-WL84-4K-A | SPARTAN Wildlife Friendly Linear 80 LED, Amber-Light, Zone 2/22 | (2x18W / 2ft retrofit) |
| SPZ-WL84-4K-A-EMX25 | SPARTAN Wildlife Friendly Linear 80 LED, Amber-Light, Zone 2/22 – Intelligent Emergency variant (25% Output) | (2x18W / 2ft retrofit) |
| SPARTAN Zone 2/22 Wildlife Friendly Linear WL168 | ||
| SPZ-WL168-4K-A | SPARTAN Wildlife Friendly Linear 160 LED, Amber-Light, Zone 2/22 | (2x36W / 4ft retrofit) |
| SPZ-WL168-4K-A-EMX25 | SPARTAN Wildlife Friendly Linear 160 LED, Amber-Light, Zone 2/22 – Intelligent Emergency variant (25% Output) | (2x36W / 4ft retrofit) |
