Product Category: Switches | ATEX Certified | Zone 1 & Zone 2 Hazardous Areas
Product Category: Switches | ATEX Certified | Zone 1 & Zone 2 Hazardous Areas

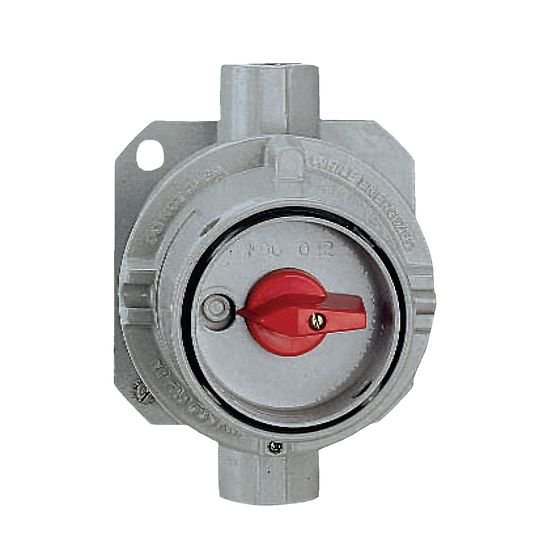

Flameproof ATX SWD Series 16 and 32 Amp switches, circuit breakers and “break glass” call points manufactured by Appleton ATX are designed to prevent operation in explosive atmospheres during connect and disconnect operation of lighting and light power loads. The switches ideal for use in hazardous areas where ignitable vapors, gases or highly combustible dusts are present.
♦ See our complete range of ATEX Plugs for hazardous area electrical power distribution at low voltage – this includes flameproof plugs according to the Ex d Explosion Protection concept.
Full Range ➡ Switches Hazardous Area Zone 1 Zone 2 ATEX Ex de
| Category | ATEX Control Stations |
|---|
| ATEX Certifications & Compliances | Zone 1 and 2 – 21 and 22; Ex II 2 GD; IP66; IK10 |
| Stand Materials | Marine grade aluminum alloy box with A2 stainless steel captive screws |
| Termination | 16 Amp: 4 mm² (0.006 in²) terminals. 32 Amp: 6 mm² (0.009 in²) terminals |
| Internal earth | 2 x 4 mm² (0.006 in²) terminals |
| External earth | 16 Amp: M5. 32 Amp: M6 |
| 16 Amp Temperature Class | T6 for Ta = +40 °C (+104 °F), T5 for Ta = +55 °C (+131 °F) |
| 16 Amp Surface Temperature | T95 °C (+203 °F) |
| 16 Amp Ambient Temperature | 40 °C to +55 °C (-40 °F to +131 °F) |
