Product Overview

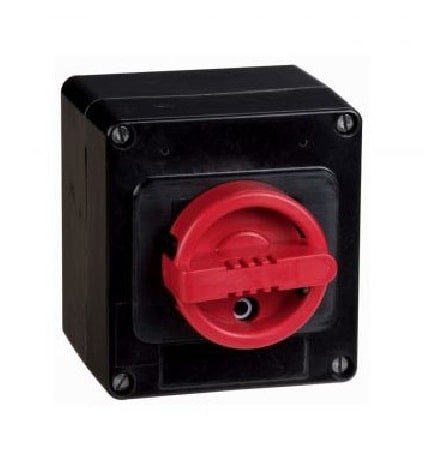

Appleton ATX SWE020S301AG

Product Category: Switches | ATEX Certified | Zone 1 & Zone 2 Hazardous Areas

Increased safety ATX SWE Series 16 and 20 Amp switches, circuit breakers, and “break glass” call points manufactured by Appleton ATX are designed to prevent operation in explosive atmospheres during connect and disconnect operation of lighting and light power loads. The switches are ideal for use in hazardous areas where ignitable vapors, gases or highly combustible dusts are present.

Full Range ➡ Switches Hazardous Area Zone 1 Zone 2 ATEX Ex de

♦ See our complete range of ATEX Plugs for hazardous area electrical power distribution at low voltage – this includes flameproof plugs according to the Ex d Explosion Protection concept.

SWITCH Features

• Increased Safety. Ideal for installation in chemical and petrochemical plants, refineries and hazardous area industries
• Available up to 690 Volts and up to 20 Amps
• 16 Amp switch has two bottom M20 clearance holes. The switch mechanism is fixed at the bottom of the box
• 16 Amp switch is supplied with 1 x white self-adhesive laminated plastic label with black lettering, 58 mm x 18 mm (2.28″ x 0.71″)
• 20 Amp switch has two M20 threaded entries on the bottom of the box. The switch mechanism is fixed on the bottom of the box
• 20 Amp switch has a padlockable handle in position 0 using maximum 4 padlocks. The maximum handle diameter is 8 mm (0.315″”””) and minimum 15 mm (0.59″”””) length
• 20 Amp is supplied with 1 x yellow self-adhesive laminated plastic label with black lettering; 65 mm x 18 mm (2.56″””” x 0.71″”””)

ATEX SWITCH Specification

• Switch Type: 3-pole
• Weight: 1 kg (2.20lbs)
• Volume: 2 dm³ (122.05 in³)
• Wiring Diagram Number: S301
