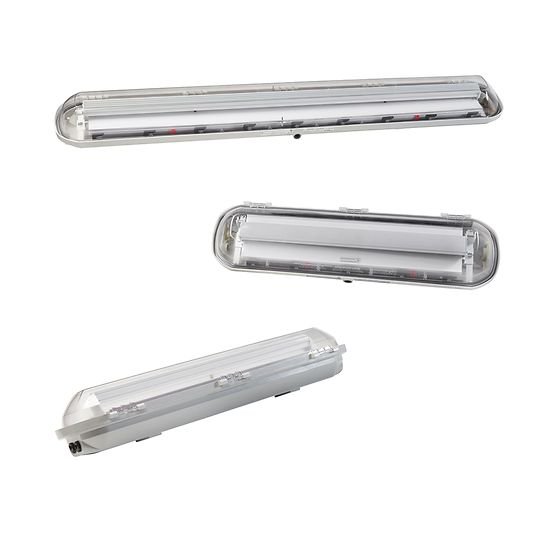

ATX FELED7CBDSAD | Hazardous Area LED Light Fitting

Product Overview

hazardous area LED light fitting

Appleton ATX FELED7CBDSAD

Zone 1 & Zone 2 (Gas) | Zone 21 & Zone 22 (Dust)

FELED Series Nonmetallic LED Luminaires manufactured by Appleton ATX provide hazardous area lighting and are easy to install and maintain, non-metallic linear light fitting fixtures using LED technology – the LED light fitting is available in a standard version or an emergency back-up version with built in battery.

LED light fittings provide energy, maintenance and safety savings where hazardous area locations require a lighting upgrade from conventional fluorescent type lights.

• Product: Linear Light Fitting
• Light Fitting Type: LED
• Manufacturer: Appleton ATX
• Range: FELED
• Lens: Diffused
• Mounting Height: 10 meters
• Lux on Ground: 18m²
• Voltage Range: BD: 100 TO 240 Vac, 50/60 Hz
• Power Consumption: 63 Watts
• Lumen Output: 7050 lumens
• Temperature Rating (in horizontal position): T6 @ 55ºC
• Ambient Temperature: -30ºC to + 55ºC (–22 °F to +131 °F)
• Light Fitting Length: 1.4 m (4.6 ft)
• Light Fitting Weight: 11 kg (24.3 lbs)
• For Armoured Cable
• M20 Entries
• ATX FELED7CBDSAD is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations
• Hazardous Area Certified: ATEX & IECEx
• Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

LED Lighting

This Zone 1 & 2 (Zone 21 & 22) LED light fitting is also available for unarmoured cable applications (M25 Entries) in explosive gas and dust atmospheres – order code FELED7CBDSND.

Ordering LED Light Fittings

The following Appleton ATX part number generator explains the process for selecting the correct LED light fitting for Zone 1 & Zone 2 hazardous area lighting applications using the FELED range of nonmetallic LED luminaires.
