Brass rub blocks help monitor belt misalignment in bucket elevators and conveyors by detecting heat generated from the friction caused by a misaligned belt rubbing against the brass surface.A temperature sensor embedded…
Brass rub blocks help monitor belt misalignment in bucket elevators and conveyors by detecting heat generated from the friction caused by a misaligned belt rubbing against the brass surface.
A temperature sensor embedded in the brass block measures the heat, and the system triggers an alarm and shutdown once the temperature reaches a trip-point.
Typically, these sensors are installed in pairs on opposite sides of the machine to detect misalignment on both sides. They can be connected directly to a PLC input or, for enhanced safety, integrated with an independent monitoring system such as 4B’s T500 Elite Hotbus™, Watchdog™ Super Elite, or T400N Elite Hotswitch.
Inspection doors are available for easier periodic maintenance and testing of the brass rub block and system.
| Brand | 4B |
|---|---|
| Part numbers | RB2W4LR2-KIT |
| Application | Belt Conveyor, Bucket Elevator |
Tell us your quantity and requirements — we reply within one business day.

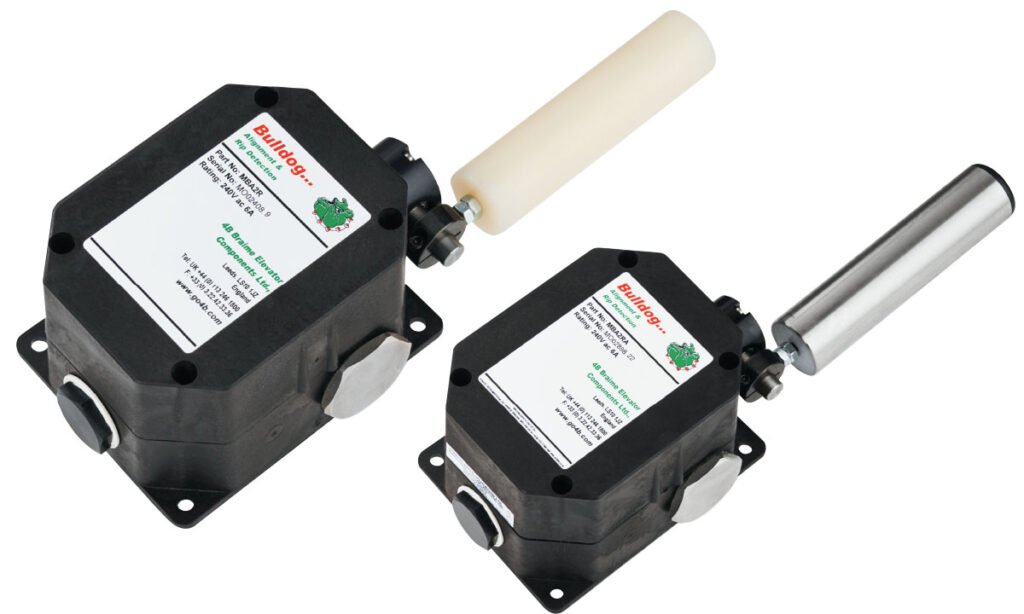

Alignment SensorsThe Bulldog alignment and rip detection switch is an electro-mechanical system designed to detect dangerous misalignment of the conveyor and also detection of belt tear damage. The switch will detect horizontal misalignment…
Alignment SensorsNon-contacting extended range magnetic proximity sensor, not affected by dust or material build up, used to detect moving ferrous material up to 100mm away from the sensor. The WDA sensor can be…

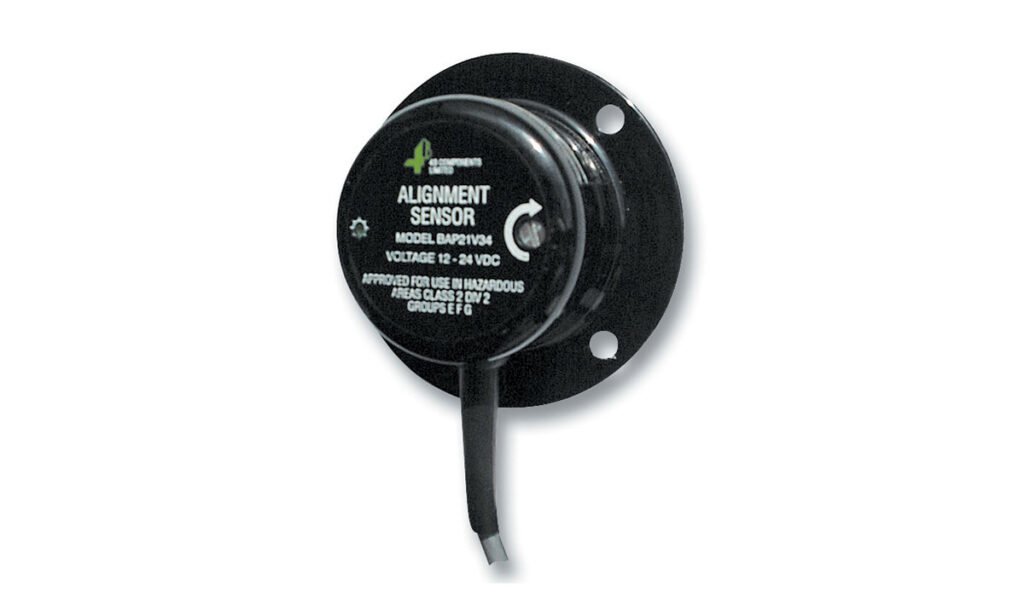

Alignment SensorsThe BAP detects moving ferrous material and is designed for use with bucket elevators to detect belt misalignment condition. It can also detect ferrous bolts where plastic or 316 stainless buckets are…
