C200HS Twin Spindle CNC Lathe
C200HS Twin Spindle CNC Lathe: maximum turning diameter Ø200 mm, maximum turning length 300 mm, bar capacity Ø52 mm. Request a quote.
Maximum turning diameterØ200 mm
Maximum turning length300 mm
Bar capacityØ52 mm
Spindle speed4500 rpm
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
The C200HS is a twin-spindle CNC lathe for high-volume turning. With two spindles in one machine, the first and second operations run in the same cycle, so finished parts leave the machine without manual re-clamping.
C200HS at a glance
Maximum turning diameter Ø200 mm, maximum turning length 300 mm, bar capacity Ø52 mm, spindle speed 4500 rpm and X/Z travel 110+15/350 mm.
Further key data: positioning accuracy 0.008/350 mm; repeatability ≤0.005 mm/300 mm; turret 4-Station Square Turret; spindle drive Direct-Drive Motorized Spindle. The machine is equipped with FANUC 0i-TF CNC control.
Quality components
Key components come from established suppliers: FANUC (CNC control, servo motors); NSK (spindle bearings); THK (guideways, ball screw); SANLIU (fixture, hydraulic cylinder); SCHNEIDER (electrical components); FAG (ball screw bearings); ISHAN (lubrication pump).
Double the output per machine
Two spindles share one machine base, control and footprint. Parts can be machined on both sides in one cycle or two parts can run in parallel, which raises output and lowers cost per part.
Ready for automation
Twin-spindle lathes are well suited to gantry or robot loading. Options include part catchers, tool setters, chip conveyors and loading interfaces.
Available options for the C200HS include high-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher and chip conveyor.
Frequently asked questions
What are the main specifications of the C200HS?
Maximum turning diameter Ø200 mm, maximum turning length 300 mm, bar capacity Ø52 mm, spindle speed 4500 rpm and X/Z travel 110+15/350 mm. The full data is in the specification table on this page.
Which CNC control does the C200HS use?
It is equipped with FANUC 0i-TF CNC control.
Which options are available for the C200HS?
High-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher, chip conveyor, oil-water separator and linear encoder.
How do I get a quotation for the C200HS?
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the C200HS? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all twin-spindle CNC lathes.
Technical Specifications
| Maximum turning diameter | Ø200 mm |
|---|---|
| Maximum turning length | 300 mm |
| Bar capacity | Ø52 mm |
| Spindle speed | 4500 rpm |
| Machine type | Twin-spindle CNC lathe |
| CNC control | FANUC 0i-TF |
C200HS – technical specifications
| Specification | C200HS |
|---|---|
| Machining Capacity | |
| Maximum Swing Diameter Over Saddle | Ø215 mm |
| Maximum Turning Diameter | Ø200 mm |
| Standard Turning Diameter | Ø200 mm |
| Swing Diameter Over Cross Slide | Ø300 mm |
| Maximum Turning Length | 300 mm |
| Chuck Size | 8″ |
| Bar Capacity Diameter | Ø52 mm |
| Spindle | |
| Spindle Nose Type | A2-6 |
| Spindle Bearing Model | Front NN3020 + 100BAR, Rear NN3017 |
| Spindle Through Hole Diameter | Ø66 mm |
| Spindle Drive Method | Direct-Drive Motorized Spindle |
| Spindle Transmission Ratio | 1:1 |
| Maximum Torque | 170 Nm |
| Maximum Spindle Speed | 4500 rpm |
| Axis Travel & Accuracy | |
| Maximum Travel of X/Z Axis | 110+15/350 mm |
| Rapid Feed Rate of X/Z Axis | 28 m/min |
| Guideway Type of X/Z Axis | 35/45 mm Roller Linear Guideway |
| Ball Screw Diameter/Pitch of X/Z Axis | Ø32 mm/Pitch10 |
| Positioning Accuracy of X/Z Axis | 0.008/350 mm |
| Repeatable Positioning Accuracy of X/Z Axis | ≤0.005 mm/300 mm |
| Motor Power | |
| X Axis Motor | 1.8 kW(bisc12b/3000) |
| Z Axis Motor | 1.8 kW(bisc12/3000) |
| Spindle Motor | 15/26.8 kW |
| Hydraulic Station | 2.2 kW |
| Water Pump | 3.2 kW |
| Air Conditioner | 0.8 kW |
| Turret | |
| Turret Model | 4-Station Square Turret |
| Tool Change Time (Adjacent Tool / Opposite Tool) | 0.8sec/1.5sec |
| Square Tool Holders | 25 mm |
| Round Tool Holders | Ø32 mm |
| Articulated Robot Arm | |
| Articulated Robot Arm Power | 2.3 kW |
| Arm Reach | 700 mm |
| Payload | 7KG |
| Other Specifications | |
| Standard CNC Controller | FANUC |
| Voltage/Power Requirements | 380V/45 kVA |
| Hydraulic Tank Capacity | 55L |
| Overall Dimensions (L × W × H) | 2500×2200×1860 mm |
Standard accessories
| Item Name | Specification | Quantity | Remarks |
|---|---|---|---|
| Foot Pedal Switch | Green*1 | 2 | |
| Hex Key Wrench Set | 1 | ||
| Leveling Blocks | 6 | ||
| Leveling Screws | 6 | With Machine | |
| Machine Operation Manual | 1 | ||
| CNC System Operation Manual | FANUC | 1 | |
| Certificate of Conformity | 1 | ||
| Packing List | 1 | ||
| Laser Calibration Report | 2 | USB Disc | |
| Stainless Steel Tubing | 1 | ||
| Reduction Sleeve (Ø32) | Ø16, Ø20, Ø25 | 3 | 1 Each |
| Tool Clamping Block | 6 | ||
| Chuck Wrench | 8 Inch | 2 | |
| Packing List | 1 | ||
| Items not installed on the machine will be placed inside the accessory box |
Key components and brands
| Item Name | Model/Specification | Brand |
|---|---|---|
| CNC System Controller | FANUC 0i-TF(3B) | FANUC |
| Servo Drive Motor | bisc12b/3000(X),bisc12/3000(Z) | FANUC |
| Spindle Bearings | Front NN3020 + 100BAR, Rear NN3017(P4 Grade) | NSK |
| Guideways | HSR35(X),HSR45(Z)(H2 Grade Roller) | THK |
| Ball Screw | EBC3210(C3 Grade) | THK |
| Fixture | X3-08A6 | SANLIU (China) |
| Hydraulic Cylinder | XH-852T | SANLIU (China) |
| Electrical Components | LC1N0910M5N(AC Contactor) | SCHNEIDER |
| Turret | 4-Station Square Turret | In-house |
| Ball Screw Bearings | 2562(X)(P4 Grade) | FAG |
| Lubrication Pump | YET-V2P2 220V | ISHAN (Taiwan) |
| Control Cabinet Cooling | EA-800-1225 | WINHEE (China) |
| Machine Bed | Meehanite Cast Iron One-piece Slant Bed with Electro-Hydraulic Integration | In-house |
| Hydraulic Components | Hydraulic Station Assembly | HOMN/HYKO |
| Chip Conveyor | Rear Chain-Type Automatic Chip Conveyor | TONGYI/JIBAO |
Specifications may change. The final configuration is confirmed in our quotation.
Applications
- High-volume automotive parts
- Flanges, rings and discs
- Bearing and gear blanks
- Robot-loaded turning cells
Features
- Two spindles in one machine
- Front and back machining in one cycle
- Compact footprint for high output
- Automation-ready layout
Available Options
Request Information About This Product
Tell us your quantity and requirements — we reply within one business day.
Related Products
Twin-Spindle CNC Lathes
Twin-Spindle CNC LathesCNC Machine Tools

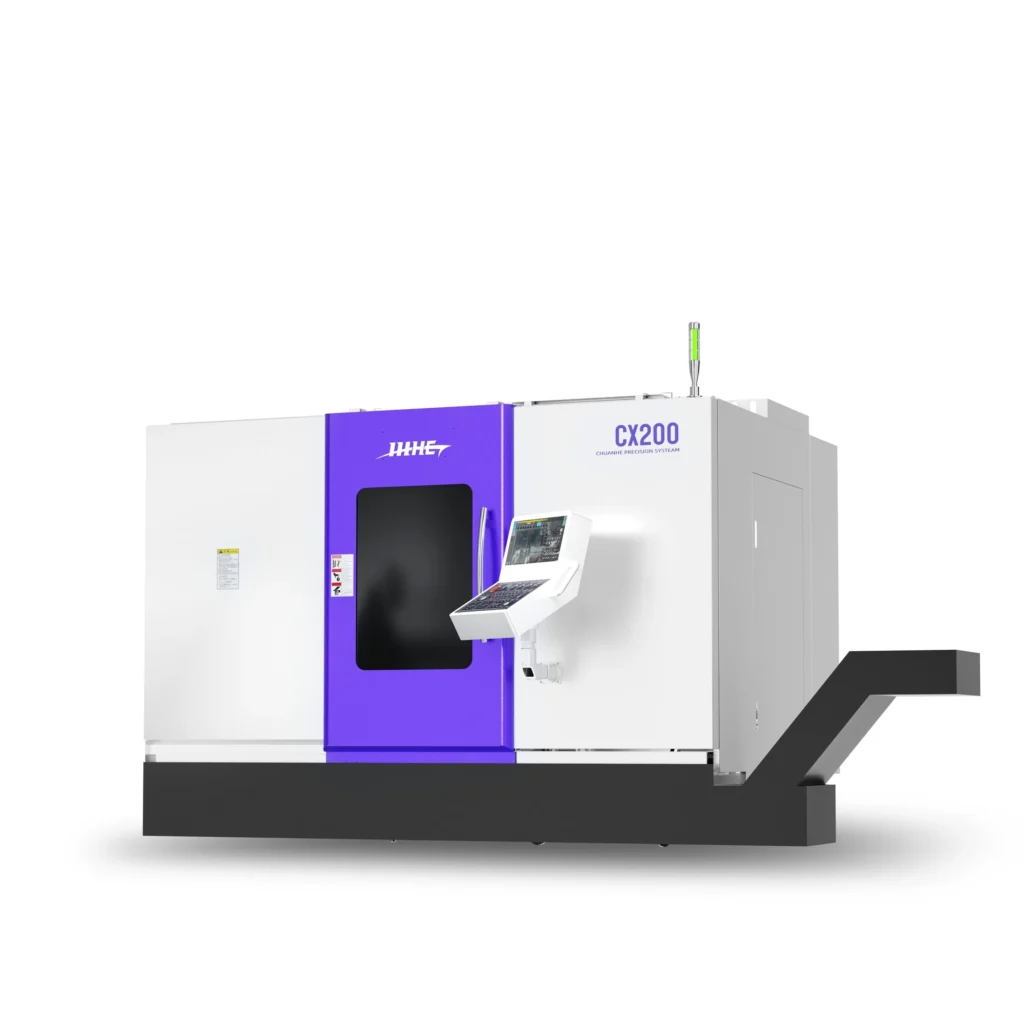

CX200 Twin Spindle Twin Turret CNC Lathe
