C250-2000 CNC Turret Lathe
C250-2000 CNC Turret Lathe: maximum turning diameter Ø600 mm, maximum turning length 2000 mm, bar capacity Ø72 mm, spindle speed 3500 rpm. Request a quote.
Maximum turning diameterØ600 mm
Maximum turning length2000 mm
Bar capacityØ72 mm
Spindle speed3500 rpm
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
The C250-2000 is a slant-bed CNC turret lathe for precision production turning. A rigid one-piece cast-iron bed, linear guideways and a fast-indexing turret give stable cutting and short tool-change times.
C250-2000 at a glance
Maximum turning diameter Ø600 mm, maximum turning length 2000 mm, bar capacity Ø72 mm, spindle speed 3500 rpm and X/Z travel 320/2220 mm.
Further key data: positioning accuracy 0.005/0.008 mm; repeatability ≤0.003/≤0.005 mm; turret MK-125SV-12T-440; spindle drive Synchronous Belt Drive. The machine is equipped with FANUC 0i-TF CNC control.
Quality components
Key components come from established suppliers: FANUC (CNC control, servo motors); NSK (spindle bearings); THK (guideway, ball screw); SANLIU (fixture, hydraulic cylinder); SCHNEIDER (electrical components); MYKUN (turret); FAG (ball screw bearings).
Built for production turning
The slant-bed layout lets chips fall away from the cutting zone, while the turret indexes quickly between tools. A tailstock with programmable quill supports long shafts, and chuck-based or bar-fed work can be set up quickly between batches.
Configured around your part
Options such as a bar feeder, part catcher, tool setter, chip conveyor, oil-mist collector and linear encoders let you adapt the lathe to your parts and level of automation. Send your drawing and we will confirm chuck size, tooling and workholding.
Available options for the C250-2000 include high-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher and chip conveyor.
Frequently asked questions
What are the main specifications of the C250-2000?
Maximum turning diameter Ø600 mm, maximum turning length 2000 mm, bar capacity Ø72 mm, spindle speed 3500 rpm and X/Z travel 320/2220 mm. The full data is in the specification table on this page.
Which CNC control does the C250-2000 use?
It is equipped with FANUC 0i-TF CNC control.
Which options are available for the C250-2000?
High-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher, chip conveyor, oil-water separator and linear encoder.
How do I get a quotation for the C250-2000?
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the C250-2000? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all CNC turret lathes.
Technical Specifications
| Maximum turning diameter | Ø600 mm |
|---|---|
| Maximum turning length | 2000 mm |
| Bar capacity | Ø72 mm |
| Spindle speed | 3500 rpm |
| Machine type | CNC turret lathe |
| CNC control | FANUC 0i-TF |
C250-2000 – technical specifications
| Specification | C250-2000 |
|---|---|
| Machining Capacity | |
| Maximum Swing Diameter Over Saddle | Ø700 mm |
| Maximum Turning Diameter | Ø600 mm |
| Standard Turning Diameter | Ø260 mm |
| Swing Diameter Over Cross Slide | Ø584 mm |
| Maximum Turning Length | 2000 mm |
| Chuck Size | 10″ |
| Bar Capacity Diameter | Ø72 mm |
| Spindle | |
| Spindle Nose Type | A2-8 |
| Spindle Bearing Model | Front NN3024+120B+Rear NN3022 |
| Spindle Through Hole Diameter | Ø86 mm |
| Spindle Drive Method | Synchronous Belt Drive |
| Spindle Transmission Ratio | 1:2 |
| Maximum Torque | 544 Nm |
| Maximum Spindle Speed | 3500 rpm |
| Axis Travel & Accuracy | |
| Maximum Travel of X/Z Axis | 320/2220 mm |
| Rapid Feed Rate of X/Z Axis | 25 m/min |
| Guideway Type of X/Z Axis | 45 mm Linear Guideway |
| Ball Screw Diameter/Pitch of X/Z Axis | Ø40/50 mm*Pitch10 |
| Positioning Accuracy of X/Z Axis | 0.005/0.008 mm |
| Repeatable Positioning Accuracy of X/Z Axis | ≤0.003/≤0.005 mm |
| Motor Power | |
| X Axis Motor | 3KW(BISC22B/3000) |
| Z Axis Motor | 3KW(BISC30/2000) |
| Spindle Motor | 15/18.5KW(BIIP40/6000) |
| Hydraulic Station | 2.2 kW |
| Water Pump | 0.8 kW |
| Air Conditioner | 0.3 kW |
| Turret | |
| Turret Model | MK-125SV-12T-440 |
| Tool Change Time (Adjacent Tool / Opposite Tool) | 0.2sec/0.5sec |
| Square Tool Holders | 25 mm |
| Round Tool Holders | Ø40 mm |
| Tailstock | |
| Spindle Internal Taper | MT#5 |
| Core Axis Control Method | Programmable Hydraulic System |
| Tailstock Body Travel | 2000 mm |
| Tailstock Body Movement Method | Mechanical |
| Other Specifications | |
| Standard CNC Controller | FANUC |
| Voltage/Power Requirements | 380V/30 kVA |
| Hydraulic Tank Capacity | 55L |
| Overall Dimensions (L × W × H) | 6375×1970×2226 mm |
Key components and brands
| Item Name | Model/Specification | Brand |
|---|---|---|
| CNC System Controller | FANUC 0i-TF(3B) | FANUC |
| Servo Drive Motor | BISC22B/3000(X), BISC22/3000(Z) | FANUC |
| Spindle Bearings | FrontNN3024+120B+Rear NN3022(P4 Grade) | NSK |
| Guideway | HSR45(X), HSR45(Z)(H2 Grade) | THK |
| Ball Screw | EBB4010(X), EBB5010(Z)(C3 Grade) | THK |
| Fixture | X3-10A8 | SANLIU (China) |
| Hydraulic Cylinder | XH-1075T | SANLIU (China) |
| Electrical Components | LC1N0910M5N(AC Contactor) | SCHNEIDER |
| Turret | MK-125SV-12T-440 | MYKUN |
| Ball Screw Bearings | 2562(X), 3062(Z)(P4 Grade) | FAG |
| Lubrication Pump | YET-V2P2 220V | ISHAN (Taiwan) |
| Control Cabinet Cooling | EA-300-1225 | WINHEE (China) |
| Machine Bed | Meehanite cast iron integral slant bed with electro-hydraulic integration | In-house |
| Hydraulic Components | Hydraulic Station Assembly | HOMN/HYKO |
| Chip Conveyor | Side/Rear-Mounted Chain-Type Automatic Chip Conveyor | TONGYI/JIBAO |
Standard accessories
| Item Name | Specification | Quantity | Remarks |
|---|---|---|---|
| Foot Pedal Switch | Green*1, Yellow*1 | 2 | |
| Hex Key Wrench Set | 1 | ||
| Leveling Blocks | 15 | ||
| Leveling Screws | 15 | With Machine | |
| Machine Operation Manual | 1 | ||
| CNC System Operation Manual | 1 | ||
| Certificate of Conformity | 1 | ||
| Packing List | 1 | ||
| Laser Calibration Report | 2 | USB Disc | |
| Stainless Steel Tubing | 1 | ||
| Reduction Sleeve (Ø40) | Ø20, Ø25, Ø32 | 3 | 1 Each |
| Tool Clamping Block | 6 | ||
| Chuck Wrench | 10 Inch | 1 | |
| Packing List | 1 | ||
| Items not installed on the machine will be placed inside the accessory box |

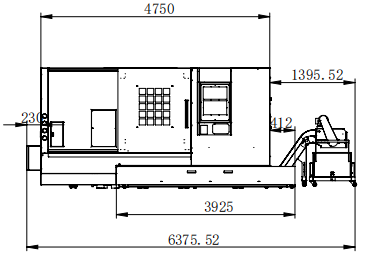

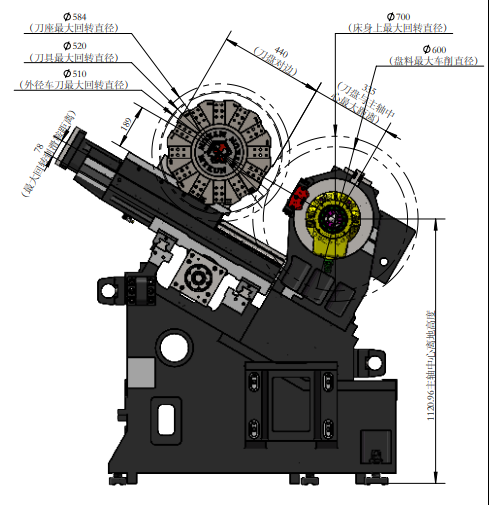

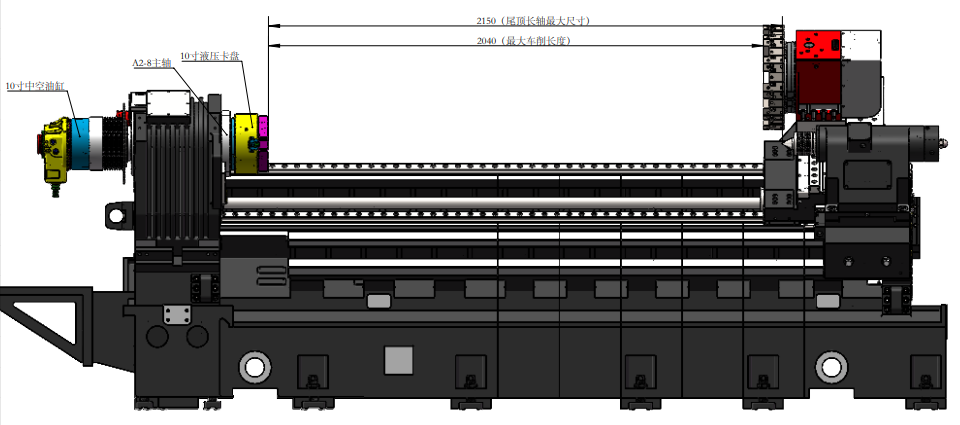

Dimension and interference drawings
Specifications may change. The final configuration is confirmed in our quotation.
Applications
- Shafts, flanges and bushings
- Automotive and hydraulic components
- Valve and pump parts
- Bar-fed production turning
- General subcontract machining
Features
- Rigid one-piece slant bed in cast iron
- Linear guideways and precision ball screws
- Fast-indexing turret
- Tailstock with programmable quill
- FANUC CNC control
Available Options
