Product Overview
The C250M-500 is a CNC turn-mill centre that combines turning with milling, drilling and tapping. A powered turret and C axis let you machine flats, holes and slots without moving the part to a second machine.
C250M-500 at a glance
Maximum turning diameter Ø425 mm, maximum turning length 510 mm, bar capacity Ø72 mm, spindle speed 3000 rpm and X/Z travel 210+100/550 mm.
Further key data: positioning accuracy 0.008/1000 mm; repeatability X: ≤0.003 mm/Z: ≤0.004 mm; turret BMT55-12T; spindle drive Synchronous Belt. The machine is equipped with FANUC 0i-TF CNC control.
Quality components
Key components come from established suppliers: FANUC (CNC control, servo motors, spindle motor model); NSK (spindle bearings); THK (guideway, ball screw); AUTOGRIP (fixture, hydraulic cylinder); SCHNEIDER (electrical components); CHENGXIN (turret); FAG (ball screw bearings).
Complete parts in one setup
Driven tools in the turret work together with the C axis on the main spindle. That removes secondary operations on a machining centre, cuts handling and work-in-progress, and keeps features accurately positioned relative to each other.
Options and automation
Bar feeders, part catchers, tool setters and chip conveyors are available for automated production. Send your drawing so we can confirm turret, tooling and spindle configuration for your part.
Available options for the C250M-500 include high-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher and chip conveyor.
Frequently asked questions
What are the main specifications of the C250M-500?
Maximum turning diameter Ø425 mm, maximum turning length 510 mm, bar capacity Ø72 mm, spindle speed 3000 rpm and X/Z travel 210+100/550 mm. The full data is in the specification table on this page.
Which CNC control does the C250M-500 use?
It is equipped with FANUC 0i-TF CNC control.
Which options are available for the C250M-500?
High-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher, chip conveyor, oil-water separator and linear encoder.
How do I get a quotation for the C250M-500?
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the C250M-500? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all turn-mill centres.
Technical Specifications
| Maximum turning diameter | Ø425 mm |
|---|---|
| Maximum turning length | 510 mm |
| Bar capacity | Ø72 mm |
| Spindle speed | 3000 rpm |
| Machine type | CNC turn-mill centre |
| CNC control | FANUC 0i-TF |
C250M-500 – technical specifications
| Specification | C250M-500 |
|---|---|
| Machining Capacity | |
| Maximum Swing Diameter Over Saddle | Ø560 mm |
| Maximum Turning Diameter | Ø425 mm |
| Standard Turning Diameter | Ø200 mm |
| Swing Diameter Over Cross Slide | Ø450 mm |
| Maximum Turning Length | 510 mm |
| Chuck Size | 10″ () |
| Bar Capacity Diameter | Ø72 mm |
| Spindle | |
| Spindle Nose Type | A2-8 |
| Spindle Bearing Model | NN3024+120B+NN3022 |
| Spindle Through Hole Diameter | Ø86 mm |
| Spindle Drive Method | Synchronous Belt |
| Spindle Transmission Ratio | 2:1 |
| Rated / Maximum Spindle Torque | 105/191 N·m |
| Maximum Spindle Speed | 3000 rpm |
| Axis Travel & Accuracy | |
| Maximum Travel of X/Z Axis | 210+100/550 mm |
| Rapid Feed Rate of X/Z Axis | 28 m/min |
| Guideway Type of X/Z Axis | 35/45 mm Linear Guide Way |
| Ball Screw Diameter/Pitch of X/Z Axis | Ø32 mm*Pitch10/Ø40 mm*Pitch10 |
| Positioning Accuracy of X/Z Axis | 0.008/1000 mm |
| Repeatable Positioning Accuracy of X/Z Axis | X: ≤0.003 mm/Z: ≤0.004 mm |
| Motor Power | |
| X Axis Motor | 1.8 kW |
| Z Axis Motor | 1.8 kW |
| Power Motor | 4.5 kW |
| Hydraulic Station | 1.5 kW |
| Spindle Motor | 11/15 kW |
| Water Pump | 0.8 kW |
| Air Conditioner | 0.3 kW |
| Turret | |
| Turret Model | BMT55-12T |
| Tool Change Time (Adjacent Tool / Opposite Tool) | 0.5sec/0.8sec |
| Square Tool Holders | 25 mm |
| Round Tool Holders | Ø40 mm |
| Tailstock | |
| Spindle Internal Taper | MT#5 |
| Core Axis Control Method | Programmable Hydraulic System |
| Tailstock Body Travel | 400 mm |
| Tailstock Body Movement Method | Mechanical |
| Other Specifications | |
| Standard CNC Controller | FANUC |
| Voltage/Power Requirements | 380V/30 kVA |
| Hydraulic Tank Capacity | 45L |
| Overall Dimensions (L × W × H) | Without chip conveyor: 2200×1600×2100 mm ; side conveyor: 3175×1600×2100 mm ; rear conveyor: 2200×2660×2100 mm |
Standard accessories
| Item Name | Specification | Quantity | Remarks |
|---|---|---|---|
| Foot Pedal Switch | Green*1, Yellow*1 | 2 | |
| Hex Key Wrench Set | 1 | ||
| Leveling Blocks | 6 | ||
| Leveling Screws | 6 | With Machine | |
| Machine Operation Manual | 1 | ||
| CNC System Operation Manual | FANUC | 1 | |
| Certificate of Conformity | 1 | ||
| Packing List | 1 | ||
| Laser Calibration Report | 2 | USB Disc | |
| Stainless Steel Tubing | 1 | ||
| Reduction Sleeve (Ø32) | Ø20, Ø25, Ø32 | 3 | 1 Each |
| Tool Clamping Block | 6 | ||
| Chuck Wrench | 10 Inch | 1 | |
| Packing List | 1 | ||
| Items not installed on the machine will be placed inside the accessory box |
Key components and brands
| Item Name | Model/Specification | Brand |
|---|---|---|
| CNC System Controller | FANUC 0i-TF (3B) | FANUC (Japan) |
| Servo Drive Motor | bisc12b/3000 (X), bisc12/3000 (Z), Ais22/6000 (driven tooling) | FANUC (Japan) |
| Spindle Motor Model | BII12/10000 | FANUC |
| Spindle Bearings | NN3024+120B+NN3022(P4 Grade) | NSK |
| Guideway | HSR35(X), HSR45(Z)(H2 Grade) | THK |
| Ball Screw | SDA3210(X), SDA4010(Z)(C3 Grade) | THK |
| Fixture | 3H-210 | AUTOGRIP (Taiwan) |
| Hydraulic Cylinder | TK-A1075 | AUTOGRIP (Taiwan) |
| Electrical Components | LC1N0910M5N(AC Contactor) | SCHNEIDER |
| Turret | BMT55-12T | CHENGXIN |
| Ball Screw Bearings | 2562(X)3062(Z)(P4 Grade) | FAG |
| Lubrication Pump | YET-V2P2 220V | ISHAN (Taiwan) |
| Control Cabinet Cooling | EA-300-1225 | WINHEE (China) |
| Machine Bed | Meehanite Cast Iron Integral Slant Bed, with Integrated Mechanical, Electrical, and Hydraulic Systems | In-house |
| Hydraulic Components | Hydraulic Station Assembly | HOMN / HYKO |
| Chip Conveyor | Side/rear-mounted chain-type automatic chip conveyor | TONGYI / JIBAO |

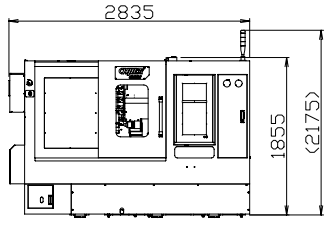

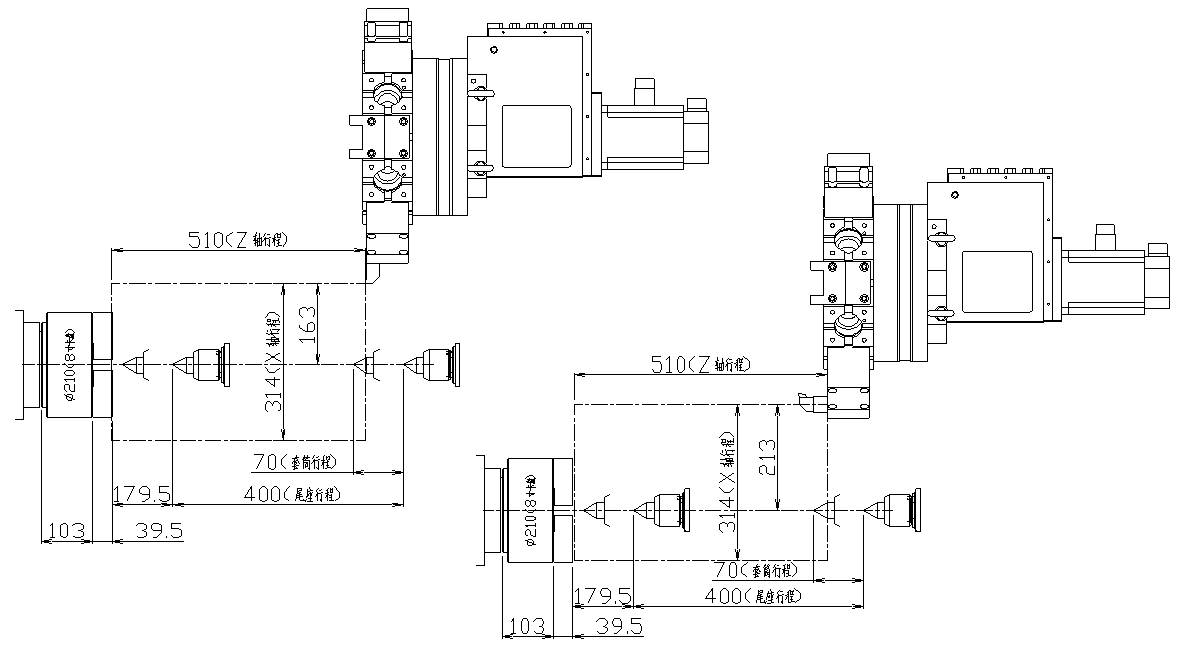

Dimension and interference drawings
Specifications may change. The final configuration is confirmed in our quotation.
Applications
- Complex turned parts with milled features
- Hydraulic and pneumatic fittings
- Automotive components
- Medical and precision parts
- Bar-fed production cells
Features
- Powered turret for milling, drilling and tapping
- C-axis spindle positioning
- Slant-bed construction with linear guideways
- FANUC CNC control
- Bar-feeder ready
Available Options
Request Information About This Product
Tell us your quantity and requirements — we reply within one business day.
