C360-3000 CNC Turret Lathe
C360-3000 CNC Turret Lathe: maximum turning diameter Ø640 mm(Limited to 440 tool disc), maximum turning length 3150 mm. Request a quote.
Maximum turning diameterØ640 mm(Limited to 440 tool disc)
Maximum turning length3150 mm
Bar capacityØ88 mm
Spindle speed1800 rpm
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
The C360-3000 is a slant-bed CNC turret lathe for precision production turning. A rigid one-piece cast-iron bed, linear guideways and a fast-indexing turret give stable cutting and short tool-change times.
C360-3000 at a glance
Maximum turning diameter Ø640 mm(Limited to 440 tool disc), maximum turning length 3150 mm, bar capacity Ø88 mm, spindle speed 1800 rpm and X/Z travel 330/3340 mm.
Further key data: positioning accuracy ±0.008/1000 mm; repeatability ±0.004 mm; turret MK-125SV-12T-001; spindle drive Belt Drive. The machine is equipped with FANUC 0i-TF CNC control.
Quality components
Key components come from established suppliers: FANUC (CNC control, servo motors); NSK (spindle bearings, ball screw bearings); THK (guideways, ball screw); SANLIU (fixture, hydraulic cylinder); SCHNEIDER (electrical components); MYKUN (turret); ISHAN (lubrication pump).
Built for production turning
The slant-bed layout lets chips fall away from the cutting zone, while the turret indexes quickly between tools. A tailstock with programmable quill supports long shafts, and chuck-based or bar-fed work can be set up quickly between batches.
Configured around your part
Options such as a bar feeder, part catcher, tool setter, chip conveyor, oil-mist collector and linear encoders let you adapt the lathe to your parts and level of automation. Send your drawing and we will confirm chuck size, tooling and workholding.
Available options for the C360-3000 include high-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher and chip conveyor.
Frequently asked questions
What are the main specifications of the C360-3000?
Maximum turning diameter Ø640 mm(Limited to 440 tool disc), maximum turning length 3150 mm, bar capacity Ø88 mm, spindle speed 1800 rpm and X/Z travel 330/3340 mm. The full data is in the specification table on this page.
Which CNC control does the C360-3000 use?
It is equipped with FANUC 0i-TF CNC control.
Which options are available for the C360-3000?
High-speed centrifugal pump, oil mist collector, safety door lock, bar feeder, pneumatic sliding door, tool setter, part catcher, chip conveyor, oil-water separator and linear encoder.
How do I get a quotation for the C360-3000?
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the C360-3000? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all CNC turret lathes.
Technical Specifications
| Maximum turning diameter | Ø640 mm(Limited to 440 tool disc) |
|---|---|
| Maximum turning length | 3150 mm |
| Bar capacity | Ø88 mm |
| Spindle speed | 1800 rpm |
| Machine type | CNC turret lathe |
| CNC control | FANUC 0i-TF |
C360-3000 – technical specifications
| Specification | C360-3000 |
|---|---|
| Machining Capacity | |
| Maximum Swing Diameter Over Saddle | Ø830 mm |
| Maximum Turning Diameter | Ø640 mm(Limited to 440 tool disc) |
| Standard Turning Diameter | Ø380 mm |
| Swing Diameter Over Cross Slide | Ø600 mm |
| Maximum Turning Length | 3150 mm |
| Chuck Size | 15″ |
| Bar Capacity Diameter | Ø88 mm |
| Spindle | |
| Spindle Nose Type | A2-11 |
| Spindle Bearing Model | NN3030P4 + 170BAR10SCP4+NN3024P4 |
| Spindle Through Hole Diameter | Ø102 mm |
| Spindle Drive Method | Belt Drive |
| Spindle Transmission Ratio | 1:2.5 |
| Maximum Torque | 540 Nm |
| Maximum Spindle Speed | 1800 rpm |
| Axis Travel & Accuracy | |
| Maximum Travel of X/Z Axis | 330/3340 mm |
| Rapid Feed Rate of X/Z Axis | 15 m/min |
| Guideway Type of X/Z Axis | Hardened Guideway |
| Ball Screw Diameter/Pitch of X/Z Axis | Ø40 mm*Pitch8 Ø63 mm*Pitch16 |
| Positioning Accuracy of X/Z Axis | ±0.008/1000 mm |
| Repeatable Positioning Accuracy of X/Z Axis | ±0.004 mm |
| Motor Power | |
| X Axis Motor | 4 kW(aiF22/3000-B) |
| Z Axis Motor | 6 kW(aiF40/3000-B) |
| Spindle Motor | 22/30 kW(aiI22/8000-B) |
| Hydraulic Station | 2.2 kW |
| Water Pump | 0.8 kW |
| Air Conditioner | 0.3 kW |
| Turret | |
| Turret Model | MK-125SV-12T-001 |
| Tool Change Time (Adjacent Tool / Opposite Tool) | 0.27sec/0.57sec |
| Square Tool Holders | 25 mm |
| Round Tool Holders | Ø40 mm(Center Height 60 mm) |
| Tailstock | |
| Spindle Internal Taper | MT#5 |
| Core Axis Control Method | Programmable Hydraulic System |
| Tailstock Body Travel | 3185 mm |
| Tailstock Body Movement Method | Mechanical |
| Other Specifications | |
| Standard CNC Controller | FANUC |
| Voltage/Power Requirements | 380V/30 kVA |
| Hydraulic Tank Capacity | 55L |
| Overall Dimensions (L × W × H) | 7630×2130×2755 mm |
| Equipment Weight | 9300KG |
Key components and brands
| Item Name | Model/Specification | Brand |
|---|---|---|
| CNC System Controller | FANUC 0i-TF | FANUC |
| Servo Drive Motor | aiF22/3000-B(X) aiF40/3000-B(Z) | FANUC |
| Spindle Bearings | NN3030+170+NN3024(P4 Grade) | NSK |
| Guideways | HSR45(X),HSR45(Z)(H2 Grade) | THK |
| Ball Screw | 4008C3(X) 5010C3(Z) | THK |
| Fixture | X3-15A11 | SANLIU (China) |
| Hydraulic Cylinder | XH-1512T | SANLIU (China) |
| Electrical Components | LC1N0910M5N(AC Contactor) | SCHNEIDER |
| Turret | 125-12T | MYKUN (Taiwan) |
| Ball Screw Bearings | 30TAC62B+6206DDU(X) 40TAC90B+6308DDU(Z) | NSK |
| Lubrication Pump | YET-V2P2 220V | ISHAN (Taiwan) |
| Control Cabinet Cooling | EA-300-1225 | WINHEE (China) |
| Machine Bed | Meehanite Cast Iron One-piece Slant Bed with Electro-Hydraulic Integration | In-house |
| Hydraulic Components | Hydraulic Station Assembly | HOMN/HYKO |
| Chip Conveyor | Side and Rear Chain-Type Automatic Chip Conveyor | JIBAO |

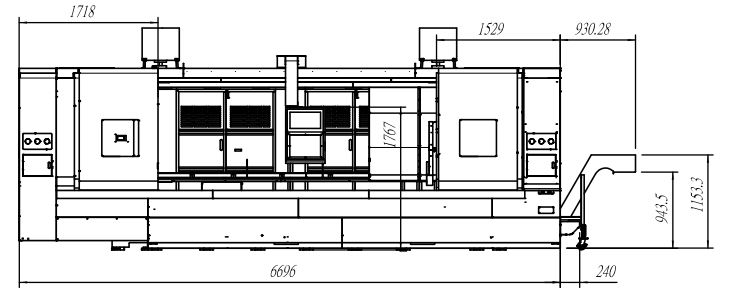

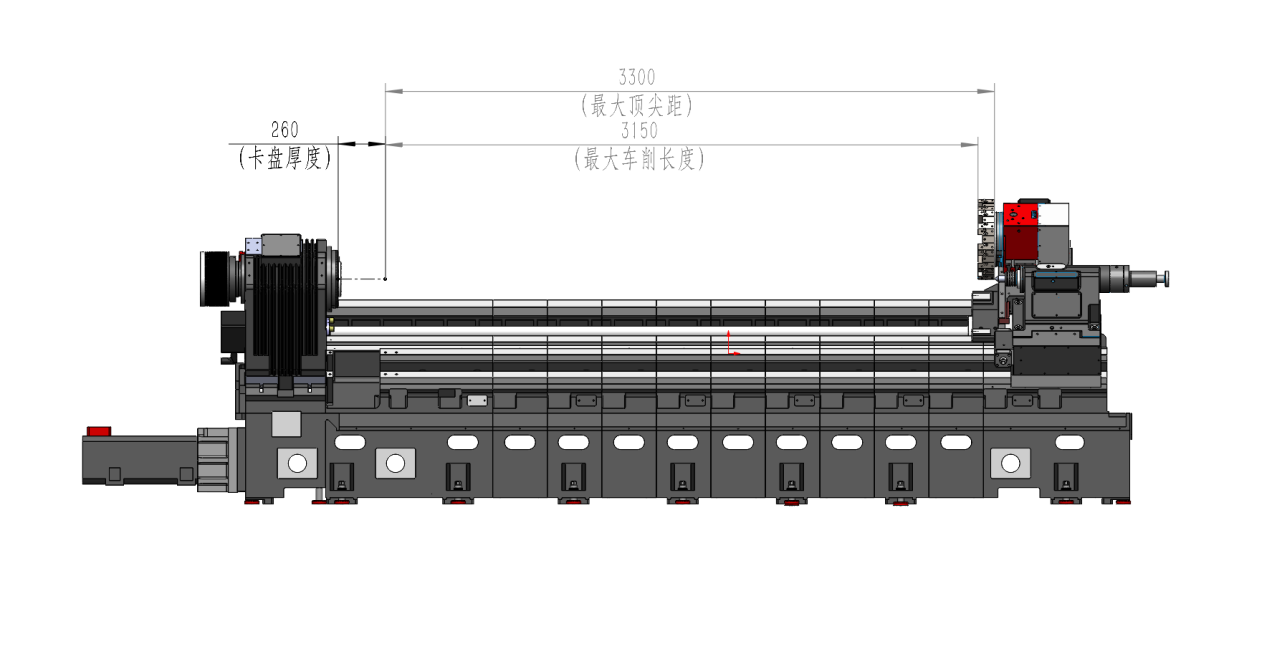

Dimension and interference drawings
Specifications may change. The final configuration is confirmed in our quotation.
Applications
- Shafts, flanges and bushings
- Automotive and hydraulic components
- Valve and pump parts
- Bar-fed production turning
- General subcontract machining
Features
- Rigid one-piece slant bed in cast iron
- Linear guideways and precision ball screws
- Fast-indexing turret
- Tailstock with programmable quill
- FANUC CNC control
