Chromalox HSRL Hazardous Area Trace Heating Cable to 150°F (65°C) – Self Regulating

Product Overview

frost protection

Chromalox HSRL hazardous area trace heating cables are self regulating and provide process temperature maintenance and frost protection to Fire Protection System Piping, other metal and plastic pipework, instrument lines, tanks and drums up to 150°F (65°C) – with CSA and FM certification Chromalox HSRL heat trace cables ensures operating integrity in Div. 1 hazardous areas.

• Energy efficient HSRL trace heating cables requires less energy as less heat is required
• HSRL trace heating cables offer low installation costs and require less maintenance minimising downtime
• Can be single overlapped without burnout, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps
• Chromalox HL Connection Kits reduce installation time

trace heating CABLE – SPECIFICATION

Chromalox HSRL hazardous area trace heating cables are self-regulating as they increase power output as temperatures falls to provide guaranteed frost protection and temperature maintenance of industrial process and water pipework. This range of heat trace cable is available in 3, 5, 8 and 10 w/ft.

• Approximate Heating Cable Size : 3/8″ W x 1/8″ H
• Process Temperature Maintenance: 150°F (65°C)
• Maximum Continuous Exposure Temperature : 185°F (85°C)
• Available Models (Voltages) : 120 and 208 – 277V
• Minimum Cable Bend Radius : 1-1/8″
• Trace Heating Cable Circuit Lengths : Up to 660 feet
• Hazardous Locations: Division 1

Output Wattage at Alternate Voltages (W/Ft.)

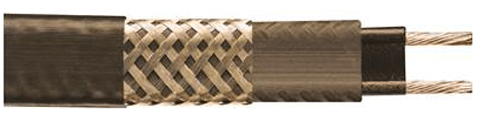

Construction

• A Twin 16 AWG Copper Buss Wires are able to Provide reliable electrical current capability.
• B Semiconductive Polymer Core Matrix is the ‘self regulating component of the cable and it’s electrical resistance varies with temperature.
• C Polyolefin Jacket is flame retardant and electrically insulates the matrix and buss wires and provides resistance to water and some inorganic chemical solutions.
• D Tinned Copper Braid that provides additional mechanical protection in any environment, and a positive ground path.
• E High Temperature Fluoropolymer Overjacket is a corrosion resistant, flame retardant overjacket which is highly effective in many environments.

Chromalox HSRL HEAT TRACE CABLE – HAZARDOUS AREA CERTIFICATIONS

FM Approvals

• Class I, Division 1, Groups B, C, D
• Class II, Division 1, Groups E, F, G
• Class III, Division 1
• 3 Watt rated T6 temperature class
• 5 and 8 Watt rated T5 temperature class
• 10 Watt rated T4A temperature class

CSA

• Class I, Division 1, Groups B, C, D
• Class II, Division 1, Groups E, F, G
• 3 Watt rated T6 temperature class
• 5 and 8 Watt rated T5 temperature class
• 10 Watt rated T4A temperature class
