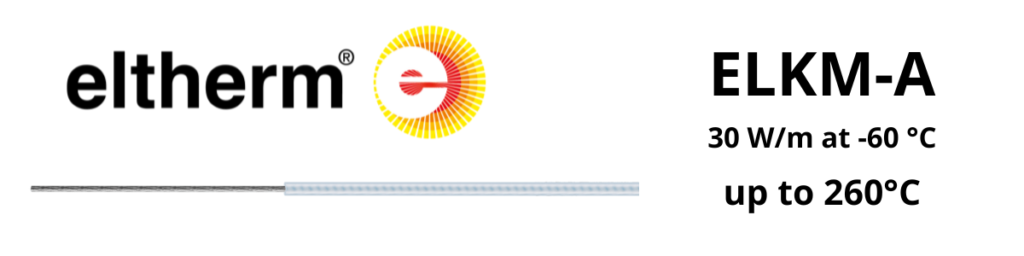

Eltherm ELKM-A constant wattage resistance heat tracing cables provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 260° Celsius.
Eltherm resistance heating cables are manufactured from a high-resistance heating conductor, PTFE insulated with protective braid and fluoropolymer outer jacket. Powered at specific voltage the resistance heat generated by the conductors provides electrical trace heating to pipes and vessels. Resistance heating cables will “burn-out” if overlapped unlike self-regulating trace heating cables.
These heat tracing cables manufactured by Eltherm offer flexibility in use as they can easily be cut to the required length off the roll, with the assurance of constant power output. There is no need for connecting cable and input can be unilateral. The constant wattage heat tracing cable is quick and easy to assemble, saving time and reducing operating costs.
Since the heat tracing cable output of up to 30 W/m is possible for lengths laid to piping, Eltherm ELKM-A heat tracing cables are particularly suited for piping with high output requirements such as in industrial process technology. The following are applications are below:
Eltherm ELKM-A heater cable wattages per metre – 30 watts
Contact our team for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heater cable for your application.
Resistance heating cables application : frost protection and process heating.
| Category | Heat Tracing Cables & Systems |
|---|
| Nominal Resistance Ω/km | Cable Outer Diameter Approx (mm) | Weight Approx (g/m) | Temperature Coefficient (x 10-3/K) | Eltherm Order Code |
| 1.95 | 5.8 | 112 | 4.30 | 0136002 |
| 2.90 | 4.6 | 73 | 4.30 | 0136006 |
| 4.40 | 4.2 | 54 | 4.30 | 0136004 |
| 7.20 | 3.1 | 33 | 4.30 | 0136007 |
| 10.00 | 3.0 | 31 | 4.30 | 0136008 |
| 11.70 | 2.7 | 30 | 4.30 | 0136010 |
| 15.00 | 2.6 | 19 | 4.30 | 0136012 |
| 25.00 | 2.5 | 17 | 3.00 | 0136016 |
| 31.50 | 2.9 | 23 | 1.60 | 0136020 |
| 50.00 | 2.6 | 17 | 1.60 | 0136030 |
| 65.00 | 2.4 | 14 | 1.60 | 0136032 |
| 80.00 | 2.7 | 20 | 0.90 | 0136038 |
| 100.00 | 2.5 | 17 | 0.90 | 0136042 |
| 157.00 | 2.5 | 17 | 0.45 | 0136049 |
| 180.00 | 2.2 | 12 | 0.90 | 0136052 |
| 200.00 | 2.4 | 14 | 0.45 | 0136054 |
| 260.00 | 2.2 | 12 | 0.45 | 0136058 |
| 280.00 | 2.1 | 10 | 0.38 | 0136059 |
| 328.00 | 2.5 | 16 | 0.18 | 0136061 |
| 360.00 | 2.1 | 10 | 0.45 | 0136064 |
| 430.00 | 2.3 | 13 | 0.18 | 0136066 |
| 480.00 | 2.2 | 12 | 0.18 | 0136068 |
| 600.00 | 2.1 | 10 | 0.18 | 0136076 |
| 800.00 | 2.0 | 9 | 0.18 | 0136080 |
| 1000.00 | 2.1 | 10 | 0.04 | 0136082 |
| 1470.00 | 2.1 | 9 | 0.04 | 0136092 |
| 1750.00 | 2.0 | 8 | 0.04 | 0136094 |
| 1900.00 | 2.2 | 12 | 0.04 | 0136096 |
| 2900.00 | 2.1 | 9 | 0.04 | 0136104 |
| 4000.00 | 2.0 | 8 | 0.04 | 0136114 |
| 4700.00 | 1.9 | 8 | 0.15 | 0136118 |
| 6000.00 | 1.9 | 7 | 0.20 | 0136124 |
| 7000.00 | 2.0 | 7 | 0.15 | 0136126 |
| 8000.00 | 2.0 | 7 | 0.15 | 0136128 |
