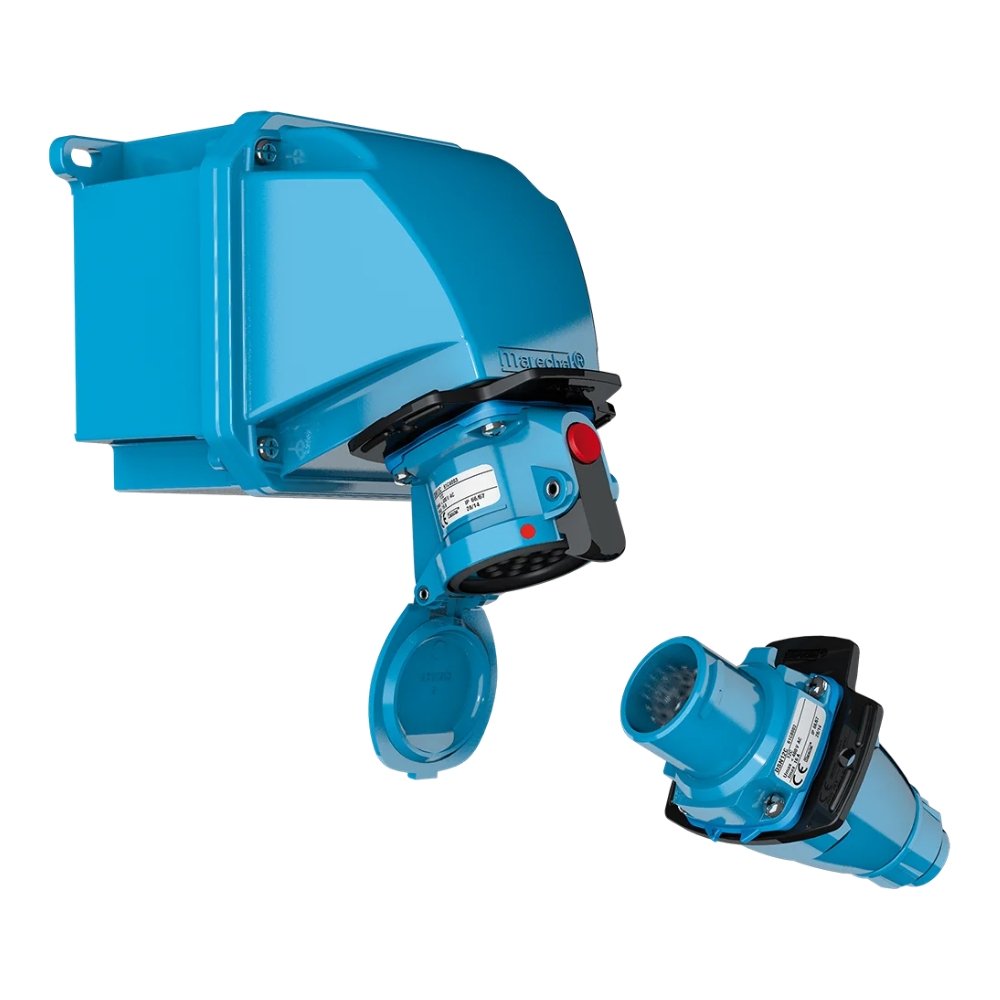

Marechal DSN12C Multicontact Connector 16A 480V Inlet & Outlet
£POA
Request a Quote
Call Us: +44 (0)191 410 4292
Marechal DSN12C Plugs, Sockets & Multi-Contact Connectors are compact, high-performance connectors designed for signal and control applications across industrial and hazardous area environments.
Marechal DSN12C Description
Offering up to 12 contacts, the DSN12C provides compact, high-performance multichannel power and signal connectivity — ideal for automation systems, control panels and hazardous area wiring networks.
Rated at 16 A and 480 V, the Marechal DSN12C Multicontact Connector ensures safe and reliable operation in the most demanding environments. With built-in protection of IP66/IP67/IP69 and IK09, it excels in harsh, wet or dusty industrial locations, rated for a temperature range of -40 °C to +60 °C.
Designed with a robust glass-reinforced polymer housing and silver-nickel butt contacts, the DSN12C delivers both mechanical strength and outstanding conductivity. Its compact 12-contact footprint accommodates both power and low-level control wiring in one sealed connector.
The Marechal DSN Multicontact Connector range includes wall-mount sockets, inlets, outlet boxes, handles and adapters — available in multiple contact configurations for LV and signal applications.
A full range of Marechal accessories, sleeves, boxes and handles is available to support complete system integration.
Contact our experts – order or find out more about the DSN12C and our complete range of Marechal Plugs, Sockets & Connectors for your operations. We provide technical advice, quotations and fast delivery for both UK & export projects.
Contact Our Experts
Technical Specifications
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| DSN12C Electrical Features | |
|---|---|
| Maximum voltage | 480 V |
| Impulse withstand voltage | 5 kV |
| Contact resistance | ‹ 2 mΩ |
| Permitted current range | 4 – 20 mA / 16 A |
| Total current (∑ contacts) | 110 A |
| Wiring (terminals) | To weld / crimp |
| DSN12C Climatic Features | |
| Ambient temperature | -40 °C to +60 °C |
| IP protection | IP66 / IP67 / IP69 (automatic closure) |
| Impact resistance | IK09 |
| DSN12C Mechanical Features | |
| Number of contacts | 12 |
| Butt contacts | Silver-nickel tips |
| Contact protection | Silvering |
| Load cycles | > 5 000 cycles |
| Vibration resistance | 5 – 1000 Hz, 1 g (90 mins each critical frequency) – IEC 6068-2-6 |
| Product Type | Description | Part Reference | Specifications | Image |
|---|---|---|---|---|
| Socket-Outlet (Female) | Marechal DSN12C Multicontact Connector – 12 Contacts, Female Outlet | 61A4001 | 480 V AC, 12 Contacts IP66/IP67, Impact Resistance IK09 | |
| Inlet (Male) | Marechal DSN12C Multicontact Connector – 12 Contacts, Male Inlet | 61A8001 | 480 V AC, 12 Contacts IP66/IP67, Impact Resistance IK09 | |
| Each DSN12C connector is supplied with one bag of 13 contacts, including insulation sleeves and ferrules. | ||||
| Accessory / Category | Description | Reference |
|---|---|---|
| OPTIONS | ||
| Locking pin for 2 padlocks (Ø 4–8 mm) | Provides secure locking for socket cover (padlocks not supplied) | Ref. + 843 |
| Larger release button | Replacement release button for socket-outlet | Socket ref. + 453 |
| In-line connections | Pair of finger draw plates to aid closing | 611A346 |
| Inlet cap (IP66 / IP67) | Protective cap for male inlet, rated IP66/IP67 | 611A426 |
| IP40 self-returning lid (manual closing) | Manual return lid option for socket-outlet | Socket ref. + R |
| Self-ejection | Self-ejection mechanism (see catalogue page 192) | — |
| Bag of 13 female contacts | Includes insulation sleeves and ferrules (supplied with product) | 01AA213 |
| Bag of 13 male contacts | Includes insulation sleeves and ferrules | 01AA113 |
| Black colour option | Products are also available in black; replace 2nd character of reference with “5” | — |
| BOXES | ||
| Poly box – 30° (M20) | Angled poly enclosure, M20 cable entry | 511B3M20 |
| Poly box – 30° (M25) | Angled poly enclosure, M25 cable entry | 511B3M25 |
| Poly box + poly sleeve | Combined poly box and sleeve; earth bar ref. shown | Earth bar: 51AA089 |
| Poly box – 70° (no hole) | 70° angled box without gland hole | 511C7000 |
| Poly box – 70° (Ø20 hole) | 70° angled box with Ø20 gland hole | 511C7M20 |
| Poly box – 70° (Ø25 hole) | 70° angled box with Ø25 gland hole | 511C7M25 |
| Poly box – 70° (Ø32 hole) | 70° angled box with Ø32 gland hole | 511C7M32 |
| Metal box + earthing wire + poly sleeve | Robust metal enclosure with earthing and sleeve (cable glands not supplied) | 511C3M20 |
| SLEEVES | ||
| Poly sleeve – 30° | Polyethylene sleeve for 30° installations | 511M3 |
| Poly sleeve – 70° | Polyethylene sleeve for 70° installations | 511M7 |
| Metal sleeve – 0° (straight) | Straight metal sleeve for heavy duty installations | 591M0 |
| Metal sleeve – 30° | 30° metal sleeve for angled installations | 591M3 |
| HANDLES | ||
| Poly handle with gland | For cable Ø 9–18 mm | 511P0D18 |
| Poly handle with gland | For cable Ø 5–21 mm | 511P0D21 |
| 60° poly handle with gland | For cable Ø 9–18 mm | 511P6D18 |
| Poly handle + poly cable gland | 5–12 mm (self-ejection ref. +443) | 511P020P — Ref. +443 |
| Poly handle + poly cable gland | 9–18 mm (self-ejection ref. +443) | 511P025P — Ref. +443 |
| Poly handle + poly cable gland | 14–25 mm (self-ejection ref. +443) | 511P032P — Ref. +443 |
| Poly handle (without cable gland) | M20 threaded entry | 511P0M20 |
| Poly handle (without cable gland) | M25 threaded entry | 511P0M25 |
| Poly handle (without cable gland) | M32 threaded entry | 511P0M32 |
