Wellglass Lighting for Zone 1, Zone 21, Zone 2, Zone 22 Hazardous Area Lighting Applications
Wellglass Lighting for Zone 1, Zone 21, Zone 2, Zone 22 Hazardous Area Lighting Applications

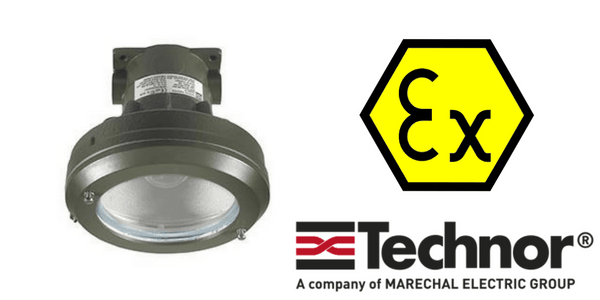

Technor’s LED EVCC-PR is a wellglass Ex d lighting fixture suitable for hazardous area lighting and offersoffers Ex-e IIC mode of protection and are suitable for on-shore and off-shore tank inspection lighting applications.
Technor LED EVCC-PR wellglass lighting is classified to international hazardous area classifications with ATEX, IECEx and TRCU certification, with ingress protection IP66 and an operational ambient temperature range of -52°C to +60°C.
ATEX
under IEC Ex directive, junction boxes and enclosures are suitable for IIC group of gases/dusts only
Approvals
Certified 01ATEX0019X (standard), TR CU (marking upon request, ordering code to be required), IECEx INE 15.0031X
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| Material | Aluminium with low content of copper |
| IP rating | IP66 |
| Ambient temperature range | -52°C to +60°C |
| Approvals | INERIS 01ATEX0019X (standard) TR CU (marking upon request, ordering code to be required) IECEx INE 15.0031X |
| Gaskets | O-ring made of Nitrile Rubber (NBR) |
| Surface treatment | Green colour polyurethane painting cycle RAL6003 (other colour available upon request) |
| Entries | N° 2 entries M25x1,5 (plugs and cable glands excluded) |
| Hardware and screws | AISI304 Stainless steel external hardware and screws |
| Lamps | Included |
| Rated Operation Voltage (UE) | 230V |
| Frequency | 50 Hz / 60 Hz |
| Accessories Available Upon Request | Fixing flange for porthole |
| Technor Part Number | Code | Lamp (W) | Weight (Kg) | Temperature Class | Dimensions (mm) | |
| A | B | |||||
| EVCC-PR3/LED 7 | A047631071G14 | 7 | 4.40 | T3 | 170 | 195 |
