Exe Earth Lead Adaptors

Increased Safety Earth Lead Adaptors

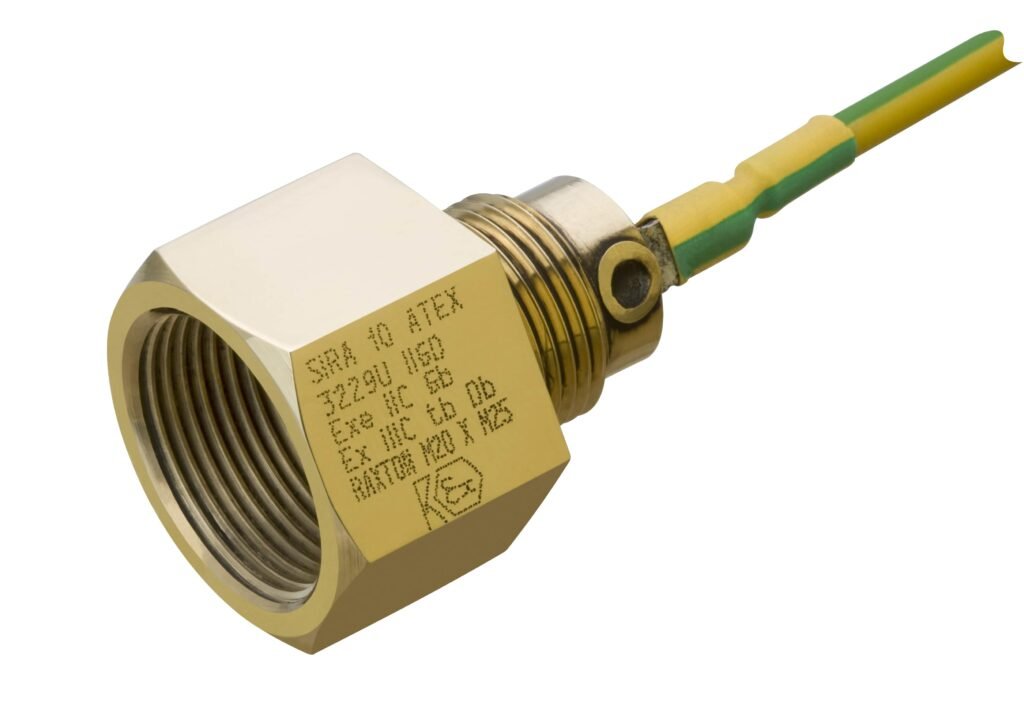

Raxton Exe hazardous area earth lead adaptors allow earth continuity to be maintained by providing an earth lead which can be terminated inside the enclosure.

Earth lead adaptors are produced with an undercut and supplied complete with an ‘O’ ring to maintain the IP integrity of the installation. Earth lead adaptors, manufactured by Raxton, are marked with the appropriate approval number and size.

Materials

• Brass: BS2874: 1985 CZ121
• Stainless Steel: BS970 PT3 316 S11

Raxton Exe earth lead adaptors are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

exd exe earth lead adaptor dimensions

The ATEX Certified earth lead adaptors are suitable for both Zone 1 & Zone 2 hazardous area installations.

Hazardous Areas

The hazardous area reducers are certified and approved to the following international hazardous area classifications and Increased Safety Standards.

Approvals & Certifications: Sira 10ATEX1225X | IECEx SIR 12.0014X | GOST TС С-GB.ГБ06.В00105 | INMETRO NCC 12.0764X

earth lead adaptor Thread selection

• Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
• National Pipe Thread (NPT) to ANSI/ASME:1983

These adaptor selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe earth lead adaptor suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

National Pipe Thread to ANSI/ASME: 1983

British Standard Pipe to BS 21:1985
