Product Overview

Electrical Thread Conversions & Cable Installation Solutions for Hazardous Areas & Explosion Proof/Protection Applications

Exe threaded earth plates

Increased Safety Threaded Earth Plates

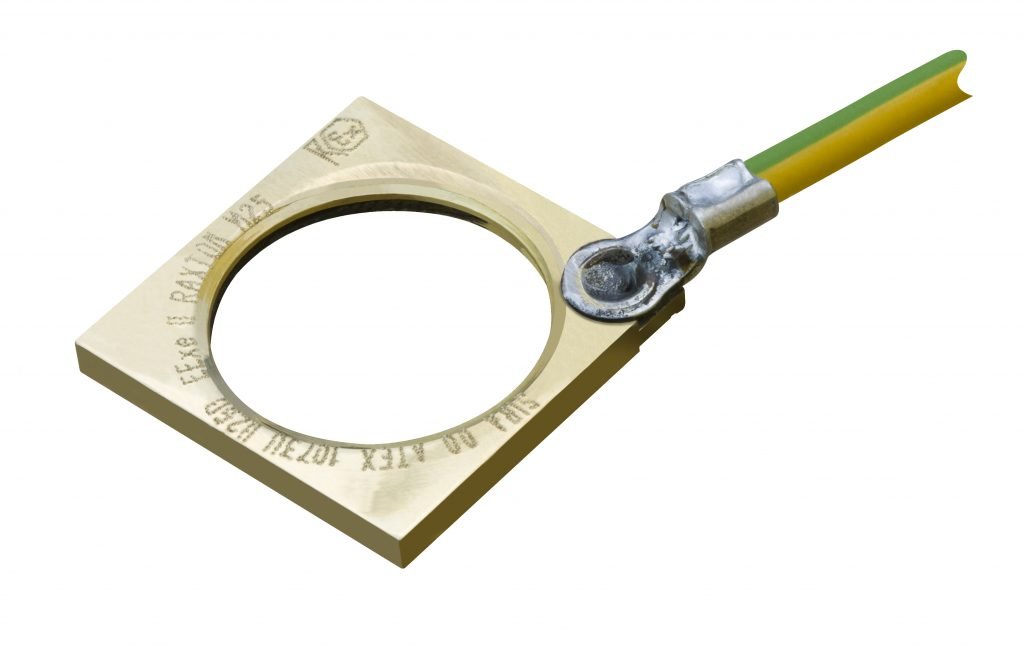

Raxton Exe hazardous area threaded earth plates are designed to ensure earth continuity when terminating brass glands into non metallic enclosure.

The additional use of a locknut is recommended to ensure pressure is maintained with the wall enclosure.

Threaded Earth Plates, manufactured by Raxton, are marked with the appropriate approval number and size.

Materials

• Brass: BS2874: 1985 CZ121
• Stainless Steel: BS970 PT3 316 S11

Raxton Exe threaded earth plates are available in a variety of finishes including Nickel, Electro Zinc, Zinc Passivated, Chromatised, Electroless Nickel and Anodised.

exd exe threaded earth plates dimensions

The ATEX Certified threaded earth plates are suitable for both Zone 1 & Zone 2 hazardous area installations.

Hazardous Areas

The hazardous area reducers are certified and approved to the following international hazardous area classifications and Increased Safety Standards.

Approvals & Certifications: Sira 10ATEX1225X | GOST TС С-GB.ГБ06.В00105

threaded earth plate selection

• Isometric (ISO) to BS3643:1981 and ISO 965 Pts 1 & 3
• National Pipe Thread (NPT) to ANSI/ASME:1983

These threaded earth plate selection tables identify the standard thread variations produced and are designed to assist the user in selecting the correct hazardous area Exe threaded earth plate suitable for use in Zone 1 or Zone 2 potentially explosive atmospheres according to the ATEX Directive.

Isometric to BS 3643:1981

National Pipe Thread to ANSI/ASME: 1983

British Standard Pipe to BS 21:1985

Adaptors, Reducers, Stopping Plugs & Breather Drains
