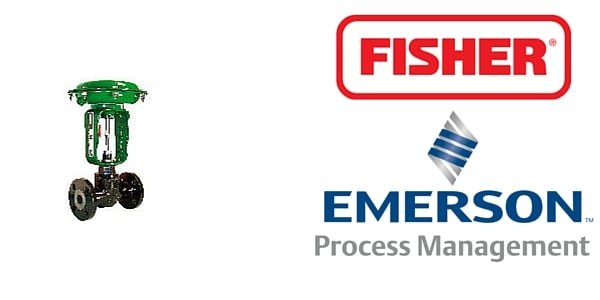

Fisher Baumann 24000C Universal Globe Valve – Sliding Stem Valves

Fisher Baumann 24000C Universal Globe Valveis part of the sliding stem valve rangethat is well suited for general utility applications that are non-corrosive where pressure, flow and temperature controls are required as…

CategoryMechanical
Request a Quote
Request Datasheet
  • Quoted to your quantity
  • Documentation on request
  • International delivery

Product Overview

Fisher Baumann 24000C Universal Globe Valveis part of the sliding stem valve rangethat is well suited for general utility applications that are non-corrosive where pressure, flow and temperature controls are required as well as body integrity.

The Baumann 24000C boasts good control characteristics, tight shutoff, rugged construction, high performance packing, and easy maintainability.

The 24000C universal globe valve is therefore able to offer reduced maintenance costs, reduced process variability, and increased process availability, resulting in lower long-term operating costs.

Product Features

  • Compact and light weight design reduces installed piping costs
  • ASME and EN end connections are available to meet your piping standards
  • High quality type 316 austenitic stainless steel trim materials
  • 416 stainless steel trim available
  • Superior dual plug and stem guiding provides increased stability during plug travel
  • Multiple trim capacity reductions available to meet changing process requirements
  • Epoxy powder coated valve body and actuator with stainless steel fasteners for corrosion resistance
  • Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices
  • Entire actuator and yoke can be removed from the valve assembly while maintaining packing integrity
  • Fisher® FIELDVUE™ Digital Valve Controller available for remote calibration and diagnostics in facilities using the PlantWeb™ architecture

Materials of construction

See how Fisher Control Valves provide safe, efficient and intuitive flow control.

Technical Specifications

CategoryMechanical
SizesNPS 1/2, 3/4, 1, 1-1/2, 2
ConnectionsCL150RF or DIN PN10-40 metric flanges
Body MaterialCarbon Steel
Valve Body RatingANSI CL150
Trim Material316 SS or PTFE Seat
Trim CharacteristicEqual % or Linear
Seat LeakageANSI/FCI 70-2 Class IV or VI
Cv Ratings0.2 to 50
Bonnet TypeStandard threaded
Packing MaterialPTFE V-ring, PTFE ENVIRO-SEAL™, or Graphite
Temperature Range-29ºC to 232ºC (-20ºF to 450ºF)
Key NoDescriptionMaterial
1Valve BodyCast Carbon Steel (ASME SA216 Grade WCC and EN 10213 1.0619 Dual Certified
2Seat RingStandardASTM A276 S31600 / S31603 Dual Certified
Optionall ASTM A582 S41600 Condition T
4Plug (Metal Seat) Cv < 2.5StandardASME SA479 S21800 Annealed
OptionalASTM A582 S41600 Condition T
Plug (Metal Seat) Cv > 4.0StandardASTM A276 S31600 / S31603 Dual Certified
OptionalASTM A582 S41600 Condition T
Plug (Soft Seat)ASTM A276 S31600 / S31603 with PTFE (Polytetrafluoroethylene) Insert
5StemASTM A276 S31600 Condition A
8BonnetCast Carbon Steel (ASME SA216 and EN 10213 1.0619 Dual Certified
8ABonnet BushingASTM A276 S44004, HT 56-60 HRC or ASTM A311 Class B Stressproof 62-65 HRC
9Drive Nut (Yoke)S30400
10Packing FollowerASTM A276 S31600 / S31603 Dual Certified
12O-RingFKM (Fluorocarbon)
14PackingStandardRefer to figure 2, table 2 (see data sheet)
OptionalRefer to figure 3, table 3 (see data sheet)
27LocknutsStainless Steel (18-8 SST)
49Body GasketStandardAnnealed Soft Copper
OptionalGraphite Grade GHR with 316 SST Insert
58Travel IndicatorASME SA240 S30400
