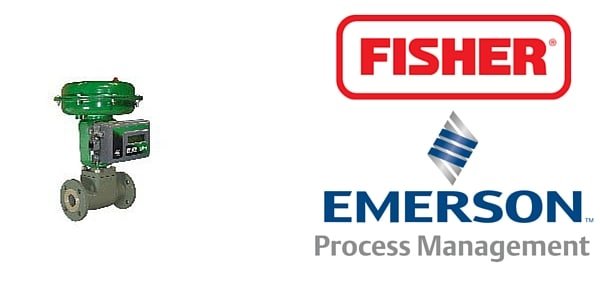

Fisher Baumann 24000CVF & SVF Universal Globe Valveare part of the sliding stem valve rangethat can be used for the control of pressure, temperature, level, and flow.
Fisher Baumann 24000CVF & SVF Universal Globe Valveare part of the sliding stem valve rangethat can be used for the control of pressure, temperature, level, and flow.
The Baumann 24000CVF & SVF valves are available with ASME CL150 RF, CL300 RF, or PN 10-40 flanged end connections.
The 24000CVF & SVF universal globe valves are compact and light weight making them ideal for installation in areas where space is at a premium.
The design of the 24000CVF & SVF aids high performance as it features low deadband and hysteresis, high flow capacity, superb control characteristics, tight shutoff and advanced packing systems to meet demanding service conditions.
See how Fisher Control Valves provide safe, efficient and intuitive flow control.
| Category | Mechanical |
|---|
| Sizes | NPS 1/2, 3/4, 1, 1-1/2, 2 or DN 15, 20, 25, 40, 50 |
| Connections | Mates with CL150 or 300 RF Flanges or PN 10-40 RF Flanges |
| Body Material | Cast Carbon Steel (Dual Certified ASTM A216 WCC/GP240GH WN 1.0619) or Cast 316L SST (ASTM A351 CF3M) |
| Valve Body Rating | CL150 or 300 per ASME B16.34 or DIN PN 10-40 EN 1092-1 |
| Trim Material | 316 SS (Cl IV) or PTFE Seat (Cl VI) |
| Trim Characteristic | Equal % or Linear |
| Seat Leakage | ANSI/FCI 70-2 Class IV or VI |
| Cv Ratings | 0.00013 to 53.7 |
| Bonnet Type | Standard bolted, extensions, and bellows seal |
| Key No | Description | Material |
| 1 | Valve Body, Carbon Steel | Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified) |
| Valve Body, Stainless Steel | ASME SA351 CF3M | |
| 2 | Seat Ring (For Low Flow Trim, Refer to tables 2 & 3 data sheet) | Standard ASTM A276 S31600/ S31603 Dual Certified / Optional ASTM A582 S41600 Condition T |
| 4 | Plug (Metal Seat) Cv < 3.3 | ASME SA479 S21800 (standard) / ASTM A582 S41600 Condition T (optional) |
| Plug (Metal Seat) Cv > 3.7 | ASTM A276 S31600/ S31603(standard) / ASTM A582 S41600 Condition T (optional) | |
| Plug (Soft Seat) | ASTM A276 S31600/ S31603 with PTFE (Polytetrafluoroethylene) insert | |
| 5 | Stem | ASTM A276 S31600 |
| 8 | Bonnet, Carbon Steel (Std) | Cast Carbon Steel (ASME SA216 WCC and EN10213 1.0619 Dual Certified) |
| Bonnet, Stainless Steel (Std) | ASME SA351 CF3M | |
| Bonnet (extended)(1) | ASME SA351 CF3M | |
| Bonnet (NOLEEK)(1) | ASME SA351 CF3M & ASTM A479 S31600/S31603, Annealed | |
| 8a | Bonnet Bushing(2) | ASTM A276 S44004, HT 56-60 HRC |
| 9 | Drive Nut (Yoke) | S30400 |
| 10 | Packing Follower | ASTM A276 S31600/S31603 Dual Certified |
| 11 | Stud | ASME SA193 Grade B8, Class 1 |
| 12 | Nut | ASME SA194 Grade 8 |
| 14 | V-Ring Packing (standard) | Refer to figure 4, table 4 data sheet |
| Packing (optional) | Refer to figures 5 & 6, tables 5 & 6 data sheet | |
| 27 | Locknuts | Stainless Steel (18-8 SST) |
| 49 | Body Gasket | Graphite Grade GHR with S31600 Insert |
| 58 | Travel Indicator | ASME SA240 S30400 |
