Product Overview

Zone 1 & Zone 2

Appleton ATX FDBAESLEDSLM

Zone 1 & Zone 2 (Gas) | Zone 21 & Zone 22 (Dust) Hazardous Areas

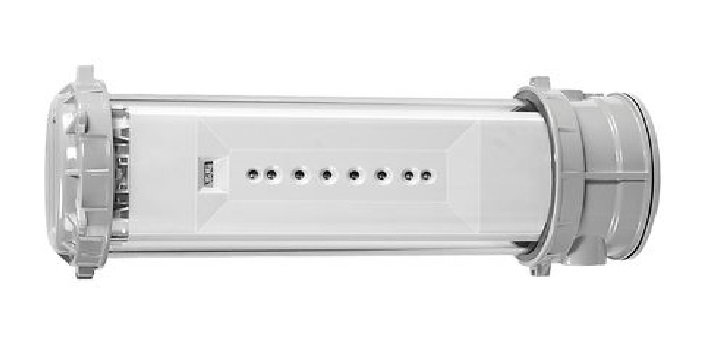

FDBAES Series of Flameproof LED Escape Lights, manufactured by Appleton ATX, provide emergency lighting in hazardous areas designated as Zone 1, Zone 2 , Zone 21 and Zone 22. The LED units are entirely self-contained within a flameproof enclosure, and feature a built-in, automatic self-test system.

These escape lights are available in switched, unswitched, addressable switched and addressable unswitched hazardous area lighting versions. Flameproof LED escape lights are ideal for use in or around pulp and paper mills, oil refineries and petrochemical plants.

• Product: Flameproof LED Emergency Light
• Light Fitting Type: Emergency Light Fitting – Space Lighting
• Manufacturer: Appleton ATX
• Range: FDBAES
• Lamp Type: LED Array
• Lumen Output: 540 lumens
• Efficacy: 110 lm/w
• Voltage: 230 Vac, 50/60 Hz
• LED Lumen Depreciation (L70): 60,000+ hours
• Ambient Temperature: -40 °C to +55 °C (-40 °F to +131 °F)
• Emergency Duration: 1 Hour
• Surface Temperature: T80°C (176°F)
• Color Temperature: 5650K
• Color Rendering Index (CRI): 70+
• Cable Entries: M20
• Internal Volume: > 2 dm³ (122 in³) – 2 litres
• Flameproof LED Emergency Light Weight: 8.1 kg | 0.32 lbs
• Flameproof LED Emergency Light Volume: 37.1 dm³ | 2264.0 in³
• Replaceable Components: Driver and Battery
• ATX FDBAESLEDSLM is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations
• Hazardous Area Certified: ATEX & IECEx
• Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

Selecting the Right Lumen Level

As LED light fittings are more efficient than the High Intensity Discharge (HID) equivalent, a watt-for-watt replacement would produce significantly higher than desired levels of lighting. Generally, an LED equivalent hazardous area light fittings produce the same light, but with 1/3 to 1/2 the energy consumption of HID lighting.
