Same quality, strength and durability as 4B's standard links.
Same quality, strength and durability as 4B's standard links.
| Brand | 4B |
|---|---|
| Part numbers | 142TNA, 142THA |

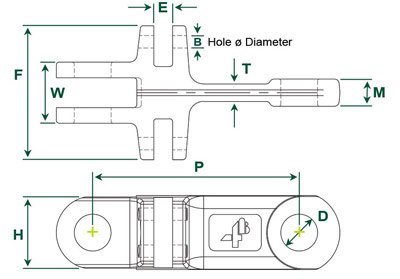

| Min. Breaking Load | Case Depth | Weight/Link | P | H | T | W | M | D | F | E | B | |||
| (kN) | (lb) | (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| 4B142TNA | 300 | 67500 | 0.7 mm | 1.67 kg | 142 | 50 | 12 | 42 | 18.7 | 25 | 92 | 13 | 8.5 | |
| 4B142THA | 450 | 101500 | 0.7 mm | 2.32 kg | 142 | 49 | 16 | 62 | 28.5 | 25 | 112 | 13 | 8.5 |
Case hardness: Rockwell C57-C62
Core hardness: Rockwell C40
Tell us your quantity and requirements — we reply within one business day.
