G306NC Surface Grinding Machine: spindle speed 1450 rpm, worktable area 600×300 mm, table movement 680 mm. Request a quote.
The G306NC is an NC surface grinding machine with boxway guideways. Automatic down-feed, spark-out passes and fixed grinding cycles give repeatable results with less operator intervention.
Spindle speed 1450 rpm, worktable area 600×300 mm, table movement 680 mm, grinding wheel Ø350×20-40×127 mm and maximum table load 420 kg.
Box guideways spread the cutting load over a large contact area, which gives high damping and stable grinding. Combined with a servo-driven vertical axis, this allows precise stock removal down to the final size.
The NC control handles rough and finish feed, spark-out passes and rapid approach automatically, so one operator can run several machines.
Spindle speed 1450 rpm, worktable area 600×300 mm, table movement 680 mm, grinding wheel Ø350×20-40×127 mm and maximum table load 420 kg. The full data is in the specification table on this page.
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the G306NC? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all NC surface grinders.
| Spindle speed | 1450 rpm |
|---|---|
| Worktable area | 600×300 mm |
| Table movement | 680 mm |
| Grinding wheel | Ø350×20-40×127 mm |
| Machine type | NC surface grinder |
| Specification | G306NC |
|---|---|
| Machining Capacity | |
| Worktable working area(mm) | 600×300 |
| Max left and right movement(mm) | 680 |
| Max front and back movement(mm) | 340 |
| Max distance from worktable surface to spindle center(mm) | 540 |
| Max worktable load capacity(kg) | 420 |
| Worktable | |
| T-slot of worktable(mmxN) | 14 mm×1 |
| Worktable speed(m/min) | 2-25 |
| Front and back handwheel feed1gra(mm) | 0.02 |
| Front and back automatic feed(mm)Feed amount(mm) | 0.01–5 |
| Front/Back Rapid Traversemm/min | 800 |
| Grinding wheel | |
| Grinding wheel size(mm) | Ø350×20-40×127 |
| Spindle speed(rpm) | 1450 |
| Upand down feed | |
| Up and down automaticfeed rate(mm)Feed amount(mm) | 0-0.1 |
| Up and down fast movement rate(mm/min)50HZ(mm/min) | 0-330 Adjustable |
| Motor | |
| Spindle motor(kW) | 3.75 |
| Up and down drive servo motor(kW) | 0.4 |
| Front and rear drive motor(kw) | 1.1 |
| Flushing motor(kW) | 0.18 |
| Size | |
| Machine height(mm) | 1900 |
| Footprint(L×W)(mm) | 2600×2200 |
| Gross Weight (kg) | 2500 |
| Parameter | Value |
|---|---|
| Front/Back Handwheel Feed per Revolution | 4 mm |
| Worktable Drive | Automatic hydraulic |
| Manual Vertical Feed per Division | 0.001 mm |
| Voltage / Power Requirements | 380V±10%/8 kW |
| Power Supply Frequency | 50∕60 HZ±2% |
| Hydraulic Motor | 1.5 kW |
| Overall Dimensions (L × W × H) | 4600×2600×1900 mm |
Specifications may change. The final configuration is confirmed in our quotation.
Tell us your quantity and requirements — we reply within one business day.

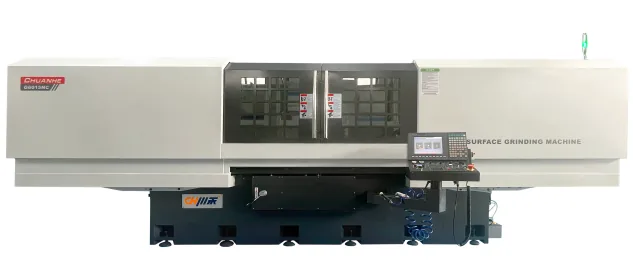

NC Surface GrindersG7020NC Surface Grinding Machine: table working area 2000×700 mm, lateral travel 2230 mm, grinding wheel Ø355(400)×20~40×Ø127. Request a quote.

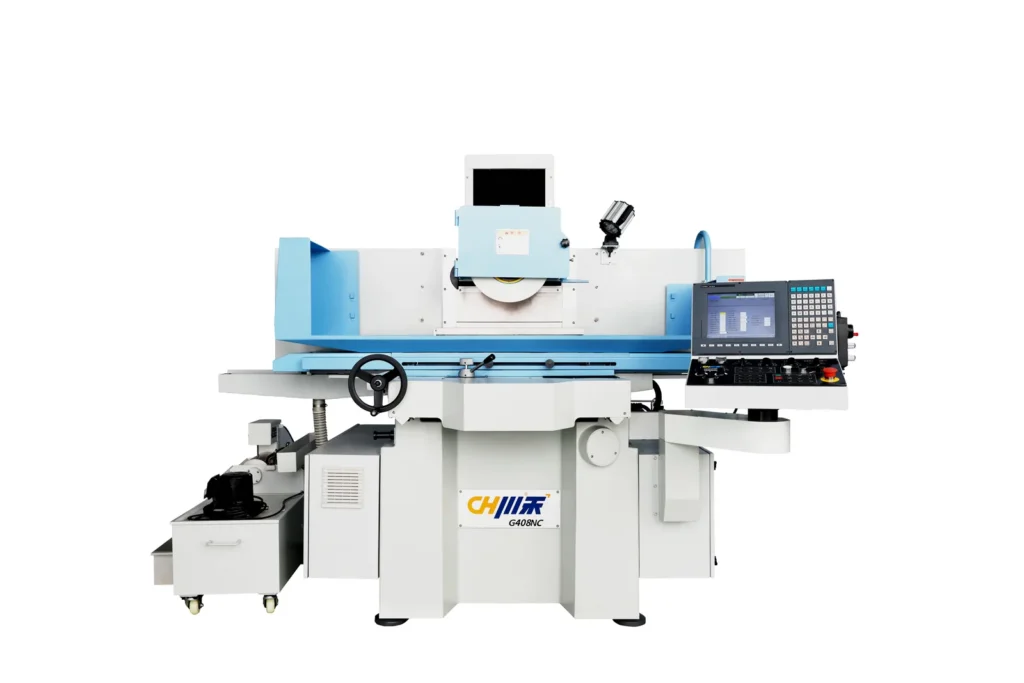

NC Surface GrindersG408NC Surface Grinding Machine: table working area 800×400 mm, lateral travel 880 mm, longitudinal travel 450 mm. Request a quote.

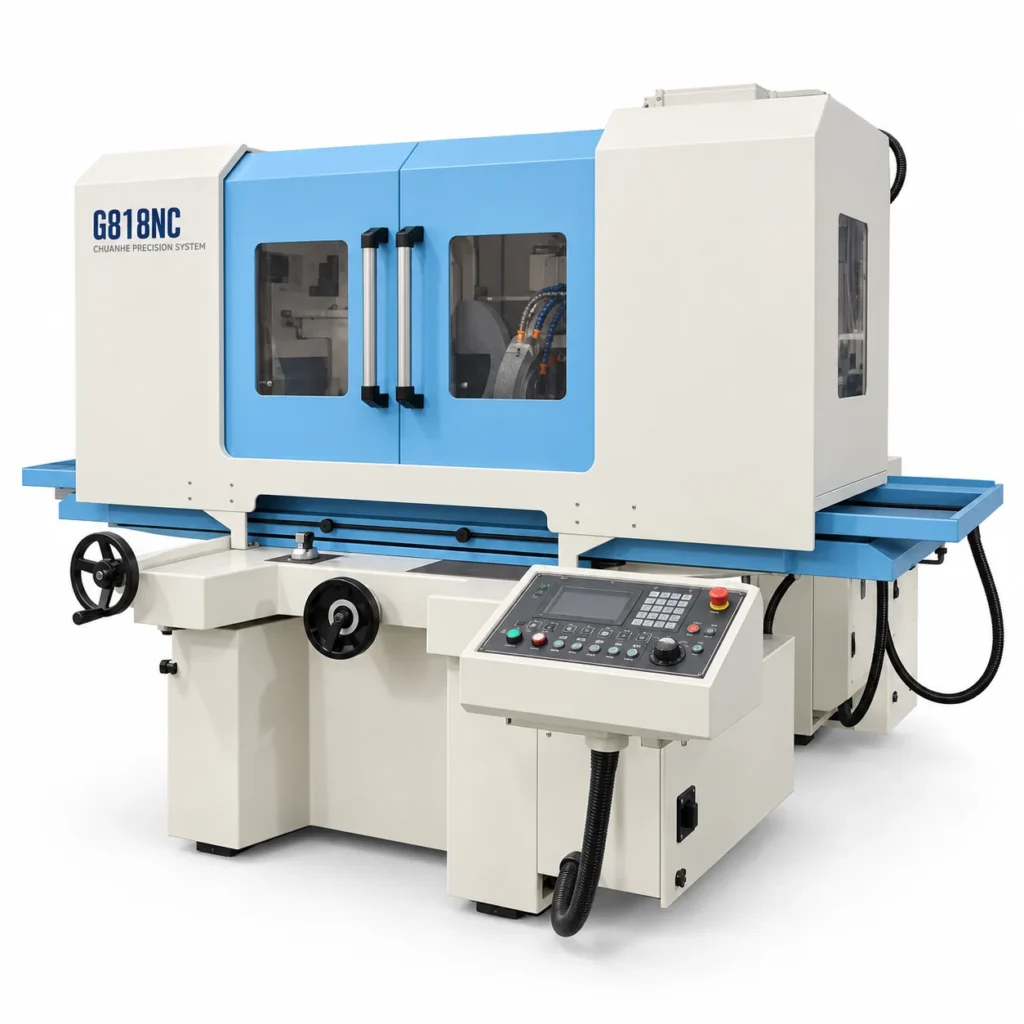

NC Surface GrindersG818NC Surface Grinding Machine: table working area 460×200 mm, lateral travel 540 mm, longitudinal travel 250 mm. Request a quote.
