G5010S Movable Column Surface Grinding Machine: spindle speed 1450 rpm, worktable area 1000×500 mm, table movement 1140 mm. Request a quote.
The G5010S is a movable-column surface grinding machine for large, heavy workpieces. The column travels front to back over the table, so the table only moves longitudinally and can carry heavy parts with high accuracy.
Spindle speed 1450 rpm, worktable area 1000×500 mm, table movement 1140 mm, grinding wheel Ø355×40×127 mm and maximum table load 800 kg.
Because the heavy workpiece does not move crosswise, accuracy stays high across a large working area. Servo-driven vertical feed and automatic feed cycles help to grind large plates and die sets efficiently.
Wheel size, chuck, coolant filtration and feed system can be matched to your parts. Send the largest workpiece size, weight and required flatness for a proposal.
Spindle speed 1450 rpm, worktable area 1000×500 mm, table movement 1140 mm, grinding wheel Ø355×40×127 mm and maximum table load 800 kg. The full data is in the specification table on this page.
Send us your part drawing, material, tolerances, batch size and delivery address through the quote form. We reply with a configuration, price and lead time for delivery to your site in Europe.
Interested in the G5010S? Send your drawing and requirements and we will reply with a configuration and quotation. Request a quote. See all movable-column surface grinders.
| Spindle speed | 1450 rpm |
|---|---|
| Worktable area | 1000×500 mm |
| Table movement | 1140 mm |
| Grinding wheel | Ø355×40×127 mm |
| Machine type | Movable-column surface grinder |
| Specification | G5010S |
|---|---|
| Machining Capacity | |
| Worktable working area(mm) | 1000×500 |
| Max left and right movement(mm) | 1140 |
| Max front and back movement(mm) | 540 |
| Max distance from worktable surface to spindle center(mm) | 600 |
| Max worktable load capacity(kg) | 800 |
| Worktable | |
| T-slot of worktable(mmxN) | 14×3 |
| Worktable speed(m/min) | 2-25 |
| Front and back handwheel feed1gra(mm) | 0.01 |
| Front and back automatic feed(mm)Feed amount(mm) | 0.2-20 |
| Fast movement back and forth(mm/min)50HZ(mm/min) | 1250 |
| Grinding wheel | |
| Grinding wheel size(mm) | Ø355×40×127 |
| Spindle speed(rpm) | 1450 |
| Up and down feed | |
| Manual feed servo motorMode | MPG:X1/X10 |
| Manual feed servo motorMin feed amount(mm) | 0.001 |
| Up and down automatic feed rate(mm) | 0-0.1 |
| Upand down fast movement rate(mm/min) | 0-750 Adjustable |
| Motor | |
| Spindle motor(kW) | 7.5 |
| Up and down drive servo motor(kVA) | 1 |
| Hydraulic motor(kW) | 2.2 |
| Flushing motor(kW) | 0.2 |
| Front and rear drive motor(kW) | 0.2 |
| Front and rear drive servo motor(kW) | / |
| Size | |
| Machine height(mm) | 2300 |
| Footprint (L×W)(mm) | 5000×2500 |
| Net / Gross Weight (kg) | 5000 / 6000 |
| Parameter | Value |
|---|---|
| Front/Back Handwheel Feed per Revolution | 5 mm |
| MPG Feed per Division (×1) | 0.001 mm |
| MPG Feed per Division (×10) | 0.01 mm |
Specifications may change. The final configuration is confirmed in our quotation.
Tell us your quantity and requirements — we reply within one business day.

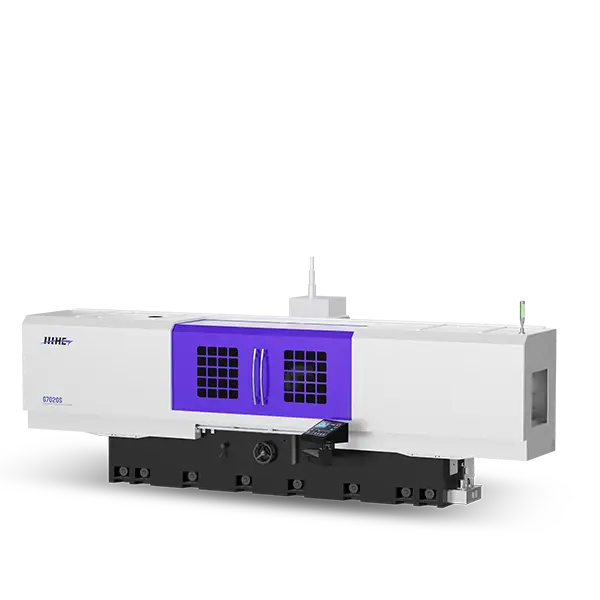

Movable-Column Surface GrindersG7020S Movable Column Surface Grinding Machine: spindle speed 950 rpm, worktable area 2000×700 mm, table movement 2230 mm. Request a quote.

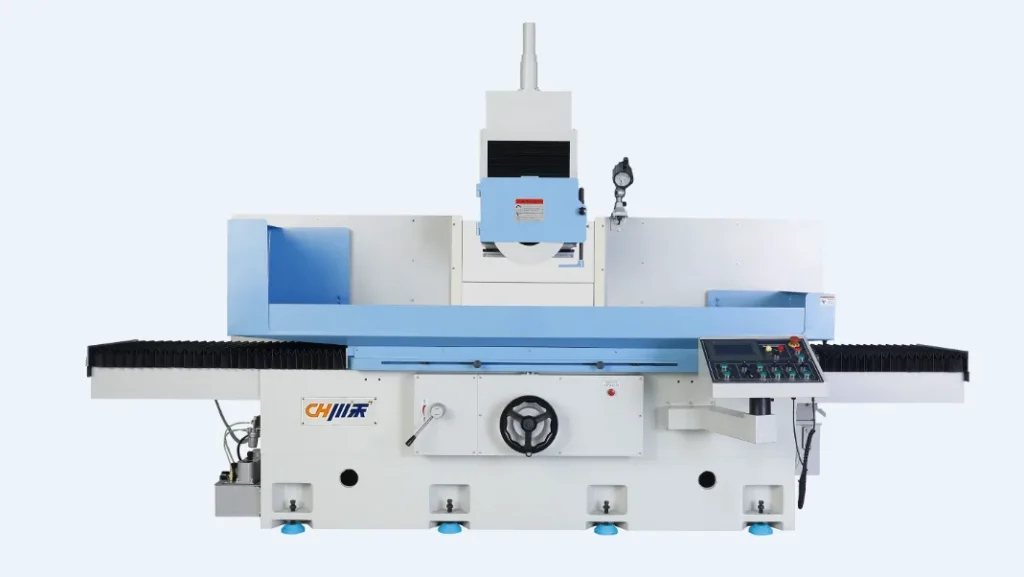

Movable-Column Surface GrindersG5012S Movable Column Surface Grinding Machine: table working area 1200×500 mm, lateral travel 1340 mm, longitudinal travel 540 mm. Request a quote.

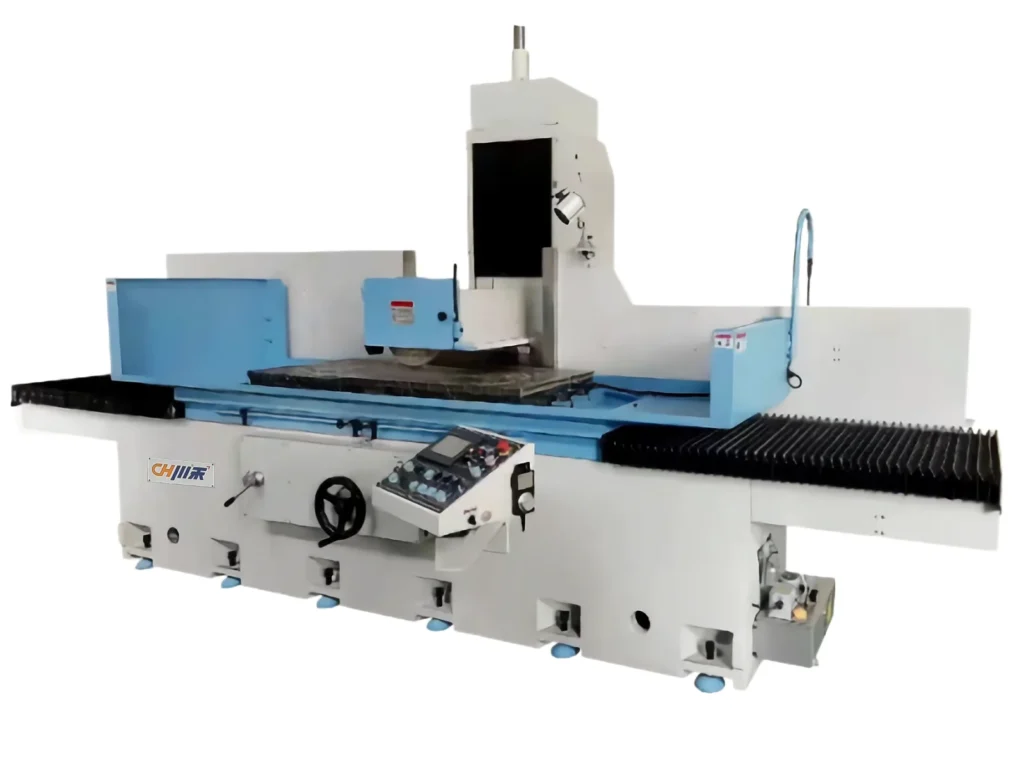

Movable-Column Surface GrindersG6030S Movable Column Surface Grinding Machine: table working area 3000×600 mm, lateral travel 3230 mm, longitudinal travel 650 mm. Request a quote.
