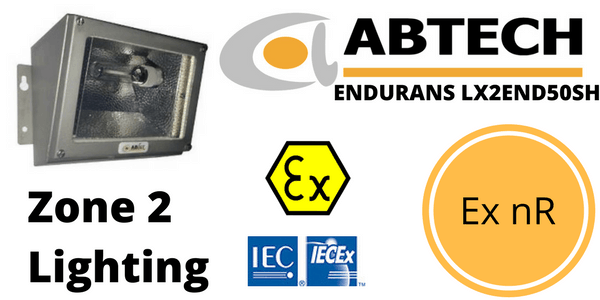

Hazardous Area Bulkhead Lighting Ex nR Zone 2 ATEX | Abtech LX2END50SH

Product Overview

Explosion Protection Ex nR

Bulkhead Lights for Zone 2 Hazardous Area Lighting Applications

The Abtech LX2END50SH bulkhead luminaire provides perimeter, walkway or stairwell lighting in harsh environmental conditions and is is suitable for use in Zone 2 and 22 hazardous areas – forming part of the Abtech Endurans Zone 2 Lighting range with ATEX certification.

The Zone 2 bulkhead lighting is manufactured from marine grade 316 stainless steel and ingress protected to IP66/67 according to EN60529.

• Product Category: Hazardous Area Lighting
• Product Range: Bulkheads
• Locations: Zone 2 Hazardous Areas (Gas)
• Locations; Zone 22 Hazardous Areas (Dust)
• Explosion Proof/Protection Concept: Ex nR Restricted Breathing
• Part Number: Abtech Endurans LX2END50SH
• Lamp Type: HPS/MBI
• Lamp Cap: E27
• Power Consumption: 50W
• Floodlight Weight: 8kg
• Temperature Rating: T3/T4 (see T Class Ratings)
• Hazardous Area ATEX Certification Code: ATEX CML 13ATEX4001X / IECEx CML 14.0023X
• Type of Protection: Ex nR (restricted breathing)
• Hazardous Area Classification: Zone 2 & 22, Gas and Dust
• Zone 2 Floodlight Coding: Ex nR IIC T3 or T4 Gc, Ex tc IIIC T1500C or T1350C Dc
• Zone 2 Hazardous Area Lighting

Hazardous Area Certification

Abtech Endurans bulkhead luminaires are certified according to leading hazardous area classifications including:

• Hazardous Area Classification Zone 2 & Zone 22, Gas and Dust
• Type of Explosion Protection Ex nR (restricted breathing)
• Apparatus Coding Ex nR IIC T3 or T4 Gc, Ex tc IIIC T1500C or T1350C Dc
• Certificate Number ATEX CML 13ATEX4001X / IECEx CML 14.0023X
