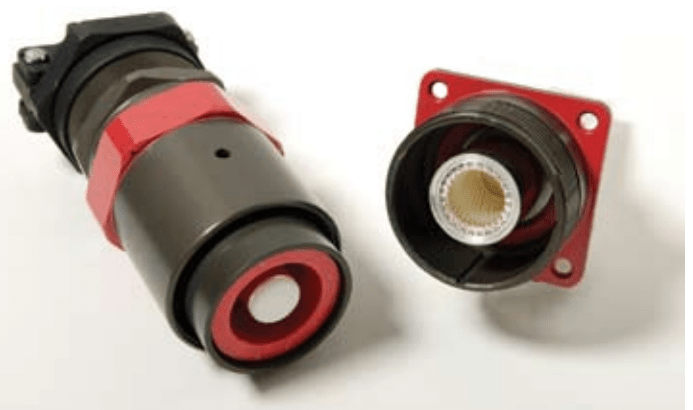

Amphenol Rig-Power connectors are cylindrical, metal, complete coupling in one turn single pole power connectors featuring RADSOK® Technology for use in hazardous areas.
RADSOK® high amperage contact technology uses the high tensile strength properties of a stamped and formed, high conductivity alloy grid to produce low insertion forces while maintaining a large conductive surface area. Amphenol offer VFD rated single pin connectors in the Star-Line and Star-Line EX series.
The Rig-Power range of plugs and sockets is rated for use up to 1000V AC/DC, is field repairable, requires low insertion and removal forces and features the smallest hardware footprint in the industry. The range includes plugs and cable receptacles with a mechanical clamp as well as panel mounted receptacles, all with contact configurations available from 313MCM to 777.
▲ Select Cable Size. See Cable Size & Amperage Guide below.
XX – Select Cable Diameter Code #. See Grommet Selection Guide below.
M designates Mechanical Clamp (For basket weave grip substitute K for M).
◆ Select standard colour code from Colour Code options below.
Use Crimp Tool: T&B #TBM15
Cable Size & Amperage Selection Guide (▲)
RIG-Power Grommet Selection Guide (XX)
Colour Code Options (◆)
Your proactive problem solvers experienced in succession planning for the replacement of obsolete, non-conformant and legacy equipment in hazardous areas.
Your first-choice provider of innovative and competitive solutions to ensure ATEX & IECEx Compliance for Hazardous Area Electrical, HVAC & Process Instrumentation Equipment to UK and international projects.
Panels | Plugs | Isolators | Enclosures | Lighting | Control Stations | Motor Starters | Call Points | Heat Trace | Gas Detection | Flame Detection | Process Instrumentation | Process Heating | Fans | Security Locks
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| Connector Style | Insert Gender | Standard Order Code | RIG-Radsok Order Code |
| Plug with Mechanical Clamp | Dead Front Pin (Line side) | RIG-10P▲-XX-M-◆ | RIG-R10P▲-XX-M-◆ |
| Socket Contact (Load Side) | RIG-10S▲-XX-M-◆ | RIG-R10S▲-XX-M-◆ | |
| Cable Receptacle with Mechanical Clamp | Dead Front Pin (Line side) | RIG-15P▲-XX-M-◆ | RIG-R15P▲-XX-M-◆ |
| Socket Contact (Load Side) | RIG-15S▲-XX-M-◆ | RIG-R15S▲-XX-M-◆ | |
| Fixed Cable Receptacle with Mechanical Clamp | Dead Front Pin (Line side) | RIG-17P▲-XX-M-◆ | RIG-R17P▲-XX-M-◆ |
| Socket Contact (Load Side) | RIG-17S▲-XX-M-◆ | RIG-R17S▲-XX-M-◆ | |
| Panel Mount Receptacle (Bus Bar) | Dead Front Pin (Line side) | RIG-17PR-◆ | RIG-R17PR-◆ |
| Socket Contact (Load Side) | RIG-17SR-◆ | RIG-R17SR-◆ | |
| Panel Mount Receptacle (Direct Cable Entry) | Dead Front Pin (Line side) | RIG-17PN-◆ | RIG-R17PN-◆ |
| Socket Contact (Load Side) | RIG-17SN-◆ | RIG-R17SN-◆ |
| Cable Size | Standard Amperage | RIg-Radsok Amperage | TBM 15 Die Code Number |
| 2 = 313 kcmil | 625 | 925 | 76 |
| 3 = 373 kcmil | 700 | 1000 | 87 |
| 4 = 444 kcmil | 800 | 1200 | 107 |
| 5 = 535 kcmil | 900 | 1350 | 107 |
| 6 = 646 kcmil | 1000 | 1500 | 107 |
| 7 = 777 kcmil | 1135 | 1500 | 115 |
| Cable Diameter | Code No. (XX) |
| 1.000-1.125 | 18 |
| 1.125-1.250 | 20 |
| 1.250-1.375 | 22 |
| 1.375-1.500 | 24 |
| 1.500-1.625 | 26 |
| 1.625-1.750 | 28 |
| 1.750-1.875 | 30 |
| Current Type | DC | AC | ||||||
| Standard Colour Code | Blue | Orange | Yellow | Brown | Red | White | Black | Green |
| Order Code Suffix ◆ | -BL | -OR | -Y | -BR | -R | -W | -BK | -G |
